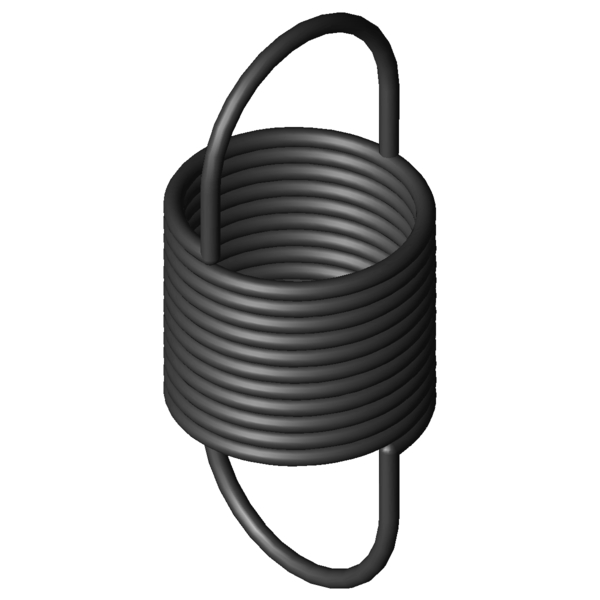

Home » Products » Extension Springs » z-163x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° Scaled prices - Extension Spring Z-163X Quantity Single price [EUR] 1 6.8600 EUR 2 4.3200 EUR 3 3.3700 EUR 7 2.8700 EUR 17 2.8700 EUR 37 2.8700 EUR 75 2.8700 EUR 125 2.8700 EUR 175 2.8700 EUR 250 2.8700 EUR 350 2.8700 EUR 450 2.8700 EUR Extension Spring Buy Product image Extension Spring Z-163X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-163X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 100 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 40.8 mm length of unstressed spring body Ln 259.52 mm maximum spring length, inner loop to inner loop sn 159.52 mm Maximum spring deflection Fn 238.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29.6 mm distance of inner edge of loop from the spring body R 1.421 N/mm Spring rate F0 11.88 N initial tension Fntol 15.92 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 26 degree (+/-) tolerance of loop position Weight 107.88 g weight of one spring Price group ###ZM - price group Technical drawing Extension Spring Datasheet Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° force-path-calculation Extension Spring Z-163X Inquiry formular Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° Inquiry formular Extension Spring Z-163X Similar extension springs to Extension Spring Z-163X Spring steel Ø 3.2 x 43.2 x 100 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-163X EN 10270-1 3.2 43.2 100 238.4 259.52 159.52 1.421 100.0 | 100.0 | 100.0 | 100.0 RZ-163X 1.4310 3.2 43.2 100 197.7 254.3 154.3 1.22 91.9 | 100.0 | 89.8 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-147E-22X 30 102 0.449 EN 10270-1 118 353.6 251.6 55.5 | 78.7 | 56.4 | 31.4 Z-149X 34.5 112 0.491 EN 10270-1 148.5 394.65 282.65 59.0 | 82.4 | 59.4 | 35.2 Z-162E-12X 38 126 0.58 EN 10270-1 180 422.2 296.2 63.4 | 84.9 | 64.7 | 40.7 Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 70.5 | 90.1 | 73.7 | 47.5 Z-162E-11X 38 100.5 0.91 EN 10270-1 180 289 188.5 78.5 | 91.7 | 80.1 | 63.9 Z-152X 27.5 101 1.029 EN 10270-1 184.9 267.39 166.39 80.4 | 80.3 | 86.7 | 74.4 Z-148X 34.5 79.7 1.034 EN 10270-1 148.5 213.89 134.19 75.5 | 79.2 | 73.2 | 74.0 Z-162U-10X 40 101 1.1 EN 10270-1 214.2 284.5 183.5 87.2 | 95.1 | 88.4 | 78.1 Z-162HX 30 112 1.257 EN 10270-1 233.4 283.55 171.55 89.5 | 82.1 | 95.4 | 91.0 Z-163X 43.2 100 1.421 EN 10270-1 238.4 259.52 159.52 100.0 | 100.0 | 100.0 | 100.0 Z-162E-10X 38 83.5 1.47 EN 10270-1 180 200.2 116.7 85.8 | 86.3 | 74.3 | 96.9 Z-162U-19X 32 108 1.63 EN 10270-1 265.6 258.3 150.3 87.8 | 86.8 | 92.0 | 84.6 Z-162GX 30 86.6 1.976 EN 10270-1 233.4 195.77 109.17 78.1 | 81.2 | 83.2 | 69.9 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 77.6 | 89.7 | 80.3 | 62.7 Z-162K-21X 25 104 2.31 EN 10270-1 277.6 214.7 110.7 72.6 | 80.5 | 77.6 | 59.6 Z-166AX 35.2 90.8 2.557 EN 10270-1 290.5 197.11 106.31 73.3 | 90.8 | 74.4 | 54.7 Z-162U-18X 32 83.5 2.65 EN 10270-1 265.6 175.9 92.4 69.9 | 83.8 | 73.8 | 52.0 Z-166X 35.2 87.6 2.774 EN 10270-1 290.5 185.57 97.97 70.6 | 89.7 | 71.7 | 50.4 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 68.8 | 87.9 | 70.9 | 47.6 Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 62.5 | 79.0 | 67.8 | 40.7 Z-177K-11X 32 118 3.6 EN 10270-1 441.6 230.9 112.9 61.1 | 82.6 | 62.4 | 38.2 Z-177FX 40 92.1 3.639 EN 10270-1 357.1 184.86 92.76 64.2 | 91.2 | 62.5 | 38.8 Z-186X 36 104 5.788 EN 10270-1 528.1 189.31 85.31 53.3 | 86.5 | 49.3 | 24.1 Z-177K-10X 32 89 5.86 EN 10270-1 441.6 158.4 69.4 52.1 | 84.0 | 48.7 | 23.5 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 49.1 | 84.9 | 43.9 | 18.7 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-163X Country of origin: DE, German; Extension Spring Z-163X Product image - Extension Springs Z-163X QR-Code: Extension Spring Z-163X
