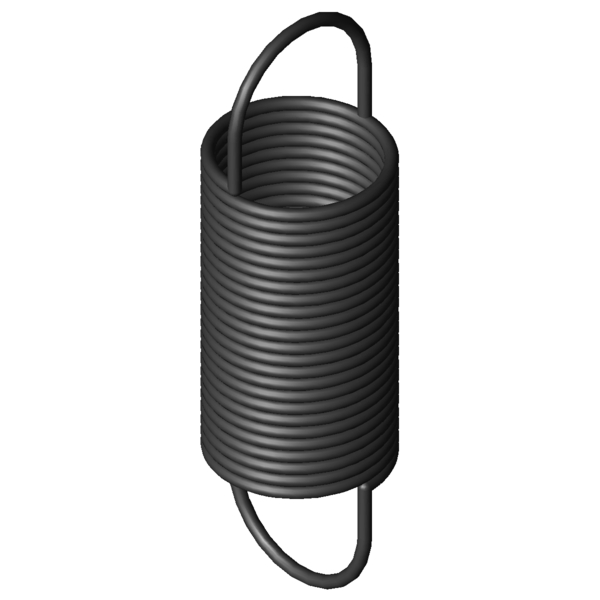

Home » Products » Extension Springs » z-164x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° Scaled prices - Extension Spring Z-164X Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-164X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-164X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 142 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 82.4 mm length of unstressed spring body Ln 478.02 mm maximum spring length, inner loop to inner loop sn 336.02 mm Maximum spring deflection Fn 238.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29.8 mm distance of inner edge of loop from the spring body R 0.674 N/mm Spring rate F0 11.88 N initial tension Fntol 13.38 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 211.77 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° force-path-calculation Extension Spring Z-164X Inquiry formular Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° Inquiry formular Extension Spring Z-164X Similar extension springs to Extension Spring Z-164X Spring steel Ø 3.2 x 43.2 x 142 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-164X EN 10270-1 3.2 43.2 142 238.4 478.02 336.02 0.674 100.0 | 100.0 | 100.0 | 100.0 RZ-164X 1.4310 3.2 43.2 142 197.7 467.01 325.01 0.579 91.9 | 100.0 | 89.8 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-150X 34.5 149 0.306 EN 10270-1 148.5 602.95 453.95 66.2 | 84.4 | 68.2 | 46.1 Z-162E-13X 38 167 0.36 EN 10270-1 180 642.7 475.7 71.1 | 86.8 | 73.1 | 53.3 Z-162U-03X 40 179 0.4 EN 10270-1 214.2 686.08 507.08 75.4 | 88.6 | 78.1 | 59.5 Z-162U-02X 40 158 0.483 EN 10270-1 214.2 577.97 419.97 83.0 | 92.1 | 84.9 | 71.9 Z-162E-12X 38 126 0.58 EN 10270-1 180 422.2 296.2 85.2 | 88.1 | 81.8 | 85.7 Z-162U-01X 40 140 0.587 EN 10270-1 214.2 485.31 345.31 92.0 | 95.0 | 93.6 | 87.4 Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 100.0 | 100.0 | 100.0 | 100.0 Z-162U-21X 32 146 1.003 EN 10270-1 265.6 390.49 244.49 78.3 | 88.4 | 81.3 | 65.3 Z-167X 35.2 129 1.317 EN 10270-1 290.5 335.36 206.36 71.0 | 90.8 | 71.7 | 50.4 Z-163X 43.2 100 1.421 EN 10270-1 238.4 259.52 159.52 70.5 | 90.1 | 73.7 | 47.5 Z-177HX 40 146 1.434 EN 10270-1 357.1 381.46 235.46 69.4 | 92.9 | 68.4 | 46.8 Z-179X 44 173 1.466 EN 10270-1 436.3 453.44 280.44 67.1 | 86.8 | 69.1 | 45.6 Z-178AX 44 145 1.96 EN 10270-1 436.3 354.7 209.7 61.6 | 92.0 | 58.5 | 34.1 Z-209MX 50 162 2.14 EN 10270-1 532.3 397.9 235.9 56.9 | 81.7 | 57.5 | 31.4 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 57.6 | 87.3 | 55.7 | 29.8 Z-187X 36 160 2.868 EN 10270-1 528.1 332.1 172.1 51.8 | 84.0 | 48.2 | 23.1 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 52.5 | 86.9 | 48.0 | 22.6 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 48.3 | 81.0 | 44.7 | 19.3 Z-209LX 50 126 3.48 EN 10270-1 532.3 271 145 48.5 | 82.1 | 44.0 | 19.3 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 48.1 | 85.4 | 41.7 | 17.3 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 46.5 | 87.0 | 38.0 | 14.4 Z-239X 50 132 5.48 EN 10270-1 707.9 252.6 120.6 42.7 | 81.1 | 34.8 | 12.1 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-164X Country of origin: DE, German; Extension Spring Z-164X Product image - Extension Springs Z-164X QR-Code: Extension Spring Z-164X
