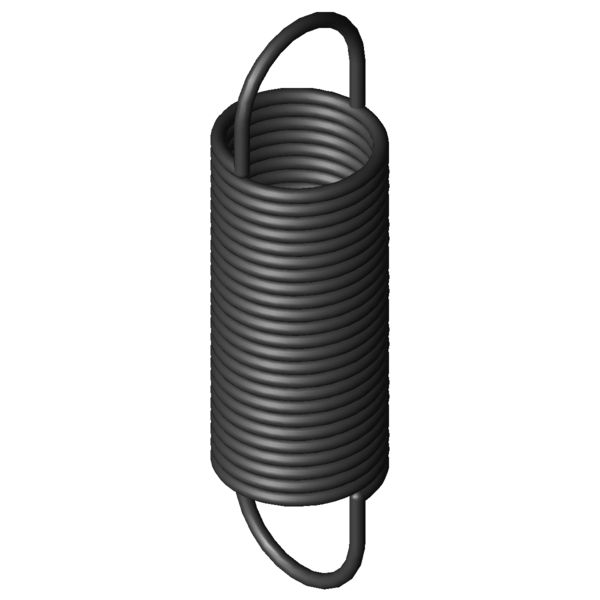

Home » Products » Extension Springs » z-177hx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° Scaled prices - Extension Spring Z-177HX Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 3.7100 EUR 37 3.7100 EUR 75 3.7100 EUR 125 3.7100 EUR 175 3.7100 EUR 250 3.7100 EUR 350 3.7100 EUR Extension Spring Buy Product image Extension Spring Z-177HX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177HX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 146 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 92.7 mm length of unstressed spring body Ln 381.46 mm maximum spring length, inner loop to inner loop sn 235.46 mm Maximum spring deflection Fn 357.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.65 mm distance of inner edge of loop from the spring body R 1.434 N/mm Spring rate F0 19.6 N initial tension Fntol 18.69 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 243.9 g weight of one spring Price group ###AD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° force-path-calculation Extension Spring Z-177HX Inquiry formular Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° Inquiry formular Extension Spring Z-177HX Similar extension springs to Extension Spring Z-177HX Spring steel Ø 3.6 x 40 x 146 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177HX EN 10270-1 3.6 40 146 357.1 381.46 235.46 1.434 100.0 | 100.0 | 100.0 | 100.0 RZ-177HX 1.4310 3.6 40 146 298 375.41 229.41 1.231 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-150X 34.5 149 0.306 EN 10270-1 148.5 602.95 453.95 51.0 | 84.6 | 46.7 | 21.6 Z-162E-13X 38 167 0.36 EN 10270-1 180 642.7 475.7 53.9 | 86.7 | 50.0 | 24.9 Z-162U-03X 40 179 0.4 EN 10270-1 214.2 686.08 507.08 56.5 | 88.3 | 53.2 | 27.9 Z-162U-02X 40 158 0.483 EN 10270-1 214.2 577.97 419.97 61.2 | 91.9 | 58.0 | 33.6 Z-162E-12X 38 126 0.58 EN 10270-1 180 422.2 296.2 63.8 | 86.4 | 64.9 | 40.1 Z-162U-01X 40 140 0.587 EN 10270-1 214.2 485.31 345.31 66.0 | 93.1 | 64.1 | 40.9 Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 69.4 | 92.9 | 68.4 | 46.8 Z-162JX 30 154 0.783 EN 10270-1 233.4 429.52 275.52 71.3 | 82.5 | 75.4 | 55.9 Z-162U-21X 32 146 1.003 EN 10270-1 265.6 390.49 244.49 81.6 | 87.8 | 85.3 | 71.6 Z-167X 35.2 129 1.317 EN 10270-1 290.5 335.36 206.36 88.6 | 88.4 | 84.5 | 92.8 Z-177HX 40 146 1.434 EN 10270-1 357.1 381.46 235.46 100.0 | 100.0 | 100.0 | 100.0 Z-179X 44 173 1.466 EN 10270-1 436.3 453.44 280.44 89.6 | 88.4 | 82.9 | 97.5 Z-178AX 44 145 1.96 EN 10270-1 436.3 354.7 209.7 83.9 | 93.4 | 85.5 | 72.9 Z-177GX 40 114 2.253 EN 10270-1 357.1 263.84 149.84 79.4 | 92.7 | 81.8 | 63.6 Z-177K-01X 32 154 2.429 EN 10270-1 441.6 321.25 167.25 75.0 | 91.6 | 75.9 | 57.4 Z-187X 36 160 2.868 EN 10270-1 528.1 332.1 172.1 70.1 | 90.4 | 70.4 | 49.4 Z-178X 44 117 2.964 EN 10270-1 436.3 255.96 138.96 68.6 | 87.0 | 70.4 | 48.3 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 64.5 | 87.2 | 65.1 | 41.2 Z-186AX 36 132 3.84 EN 10270-1 528.1 260.7 128.7 62.7 | 90.1 | 61.1 | 37.0 Z-216JX 40 146 4.5 EN 10270-1 658.2 279.7 133.7 59.9 | 93.3 | 55.5 | 30.8 Z-195X 29 149 6.015 EN 10270-1 645.8 249.05 100.05 53.1 | 86.8 | 48.9 | 23.5 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 50.7 | 88.5 | 44.1 | 19.4 Z-216HX 40 110 7.32 EN 10270-1 658.2 192.2 82.2 49.5 | 85.1 | 44.6 | 18.9 Z-276HX 50 138 8.29 EN 10270-1 921.2 239.4 101.4 45.9 | 80.0 | 40.9 | 16.7 Z-283JX 40 165 10.94 EN 10270-1 1134 257.7 92.7 44.2 | 84.6 | 35.4 | 12.4 Z-246HX 40 116 11.64 EN 10270-1 873.5 184.6 68.6 43.6 | 83.8 | 35.0 | 11.9 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring Z-177HX Country of origin: DE, German; Extension Spring Z-177HX Product image - Extension Springs Z-177HX QR-Code: Extension Spring Z-177HX
