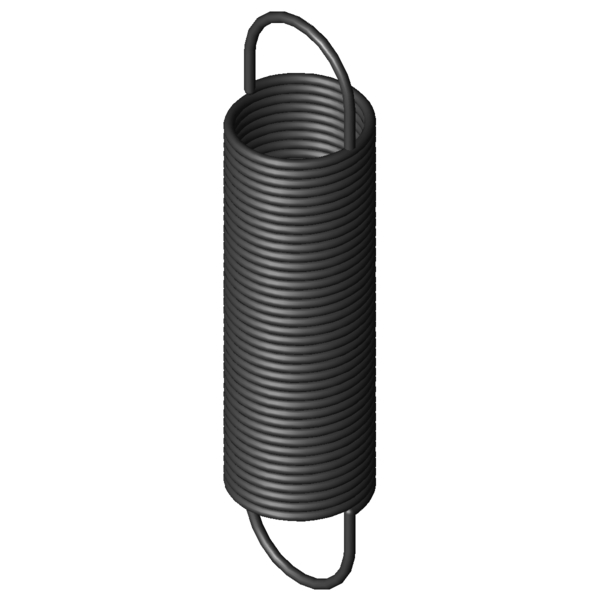

Home » Products » Extension Springs » z-133i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° Scaled prices - Extension Spring Z-133I Quantity Single price [EUR] 1 6.7100 EUR 2 4.2300 EUR 3 3.0800 EUR 7 2.6300 EUR 17 1.3800 EUR 37 1.0500 EUR 75 0.8600 EUR 125 0.7979 EUR 175 0.7848 EUR 250 0.7607 EUR 350 0.7408 EUR 450 0.6532 EUR Extension Spring Buy Product image Extension Spring Z-133I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-133I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 27 mm outer coil diameter Dh 30.5 mm minimum bush diameter L0 118 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81 mm length of unstressed spring body Ln 475.23 mm maximum spring length, inner loop to inner loop sn 357.23 mm Maximum spring deflection Fn 101.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 18.5 mm distance of inner edge of loop from the spring body R 0.264 N/mm Spring rate F0 6.881 N initial tension Fntol 5.48 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 80.44 g weight of one spring Price group ZL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° force-path-calculation Extension Spring Z-133I Inquiry formular Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° Inquiry formular Extension Spring Z-133I Similar extension springs to Extension Spring Z-133I Spring steel Ø 2 x 27 x 118 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-133I EN 10270-1 2 27 118 101.2 475.23 357.23 0.264 89.5 | 90.0 | 87.0 | 91.6 RZ-133I 1.4310 2 27 118 84.86 467.88 349.88 0.227 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-115F-14I 20 114.5 0.102 EN 10270-1 49.5 576.26 461.76 62.3 | 89.5 | 60.6 | 36.8 Z-115V-16I 20 121 0.132 EN 10270-1 60.54 547.95 426.95 70.6 | 93.4 | 69.9 | 48.6 Z-118AI 21.6 117 0.156 EN 10270-1 67.4 523.5 406.5 78.0 | 90.3 | 79.9 | 63.9 Z-133AI 27 146 0.195 EN 10270-1 101.2 629.84 483.84 88.6 | 92.4 | 91.1 | 82.4 Z-130E-13I 24 107.5 0.247 EN 10270-1 84.2 432 324.5 100.0 | 100.0 | 100.0 | 100.0 Z-133I 27 118 0.264 EN 10270-1 101.2 475.23 357.23 89.5 | 90.0 | 87.0 | 91.6 Z-147E-23I 30 133 0.281 EN 10270-1 118 534.5 401.5 91.2 | 89.9 | 87.4 | 96.4 Z-136AI 22 124 0.438 EN 10270-1 123.3 385.22 261.22 62.2 | 89.4 | 60.9 | 36.5 Z-147E-22I 30 102 0.453 EN 10270-1 118 351 249 75.5 | 89.1 | 77.7 | 59.8 Z-136I 22 110 0.516 EN 10270-1 123.3 331.89 221.89 69.4 | 93.1 | 68.3 | 46.7 Z-147JI 24 122 0.583 EN 10270-1 148 359.08 237.08 56.4 | 88.9 | 52.7 | 27.6 Z-153I 27.5 138 0.645 EN 10270-1 184.9 403.55 265.55 53.3 | 85.1 | 49.9 | 24.7 Z-152I 27.5 101 1.04 EN 10270-1 184.9 265.71 164.71 51.9 | 84.4 | 48.1 | 23.1 Z-162U-20I 32 128 1.23 EN 10270-1 265.6 327.22 199.22 49.8 | 81.1 | 46.9 | 21.2 Z-156I 22.5 130 1.259 EN 10270-1 223.8 293.68 163.68 44.5 | 85.4 | 35.6 | 12.6 Z-162HI 30 112 1.27 EN 10270-1 233.4 281.82 169.82 50.5 | 85.4 | 45.4 | 20.6 Z-162K-01I 25 143 1.487 EN 10270-1 277.6 315.17 172.17 47.4 | 82.2 | 42.3 | 17.6 Z-162U-19I 32 108 1.65 EN 10270-1 265.6 256.5 148.5 45.5 | 80.9 | 39.8 | 15.8 Z-162K-21I 25 104 2.34 EN 10270-1 277.6 213.6 109.6 42.7 | 85.7 | 32.1 | 10.2 Z-162U-31I 24 133 2.66 EN 10270-1 348.5 253.71 120.71 40.0 | 80.3 | 30.7 | 9.0 Z-170I 28.2 118 2.79 EN 10270-1 358.7 238.15 120.15 42.2 | 86.1 | 30.9 | 9.5 Number of similar metal springs: 20 Customs tariff number: 73202085; Extension Spring Z-133I Country of origin: DE, German; Extension Spring Z-133I Product image - Extension Springs Z-133I QR-Code: Extension Spring Z-133I
