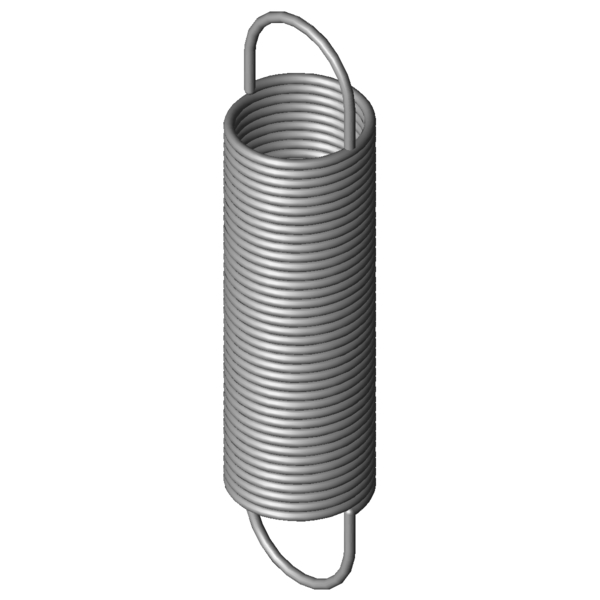

Home » Products » Extension Springs » rz-133i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° Scaled prices - Extension Spring RZ-133I Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 1.6000 EUR 37 1.2900 EUR 75 1.1600 EUR 125 1.0882 EUR 175 1.0680 EUR 250 1.0487 EUR 350 1.0339 EUR 450 0.9731 EUR Extension Spring Buy Product image Extension Spring RZ-133I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-133I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 27 mm outer coil diameter Dh 30.5 mm minimum bush diameter L0 118 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81 mm length of unstressed spring body Ln 467.88 mm maximum spring length, inner loop to inner loop sn 349.88 mm Maximum spring deflection Fn 84.86 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 18.5 mm distance of inner edge of loop from the spring body R 0.227 N/mm Spring rate F0 5.501 N initial tension Fntol 5.24 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 80.4789 g weight of one spring Price group ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° force-path-calculation Extension Spring RZ-133I Inquiry formular Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° Inquiry formular Extension Spring RZ-133I Similar extension springs to Extension Spring RZ-133I Stainless steel Ø 2 x 27 x 118 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-133I 1.4310 2 27 118 84.86 467.88 349.88 0.227 100.0 | 100.0 | 100.0 | 100.0 Z-133I EN 10270-1 2 27 118 101.2 475.23 357.23 0.264 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115F-14I 20 114.5 0.088 1.4310 44.2 595.2 480.7 60.2 | 80.4 | 62.4 | 37.9 RZ-115V-16I 20 121 0.114 1.4310 51.22 543.08 422.08 68.0 | 82.2 | 71.6 | 50.0 RZ-118AI 21.6 117 0.134 1.4310 56.93 517.96 400.96 74.0 | 86.4 | 77.2 | 58.5 RZ-133AI 27 146 0.167 1.4310 84.86 619.89 473.89 84.8 | 93.6 | 86.9 | 73.8 RZ-130E-13I 24 107.5 0.213 1.4310 73.5 435.9 328.4 90.8 | 90.0 | 90.2 | 92.3 RZ-133I 27 118 0.227 1.4310 84.86 467.88 349.88 100.0 | 100.0 | 100.0 | 100.0 RZ-147E-23I 30 133 0.242 1.4310 104.3 550.3 417.3 89.8 | 89.9 | 82.6 | 97.0 RZ-136AI 22 124 0.376 1.4310 103.4 379.89 255.89 76.6 | 92.2 | 77.6 | 60.0 RZ-147E-22I 30 102 0.389 1.4310 104.3 360.9 258.9 75.7 | 89.1 | 77.7 | 60.2 RZ-136I 22 110 0.443 1.4310 103.4 327.37 217.37 71.6 | 91.6 | 72.1 | 51.0 RZ-147JI 24 122 0.501 1.4310 123.7 353.4 231.4 68.3 | 92.2 | 67.4 | 45.4 RZ-153I 27.5 138 0.554 1.4310 153.7 395.83 257.83 64.3 | 87.9 | 64.5 | 40.7 RZ-152I 27.5 101 0.893 1.4310 153.7 260.92 159.92 54.5 | 87.9 | 50.5 | 25.2 RZ-147K-02I 20 112 0.938 1.4310 147.2 256.5 144.5 53.3 | 86.6 | 49.5 | 23.8 RZ-162U-20I 32 128 1.057 1.4310 219.4 320.11 192.11 49.7 | 81.1 | 46.8 | 21.2 RZ-156I 22.5 130 1.082 1.4310 186.1 289.15 159.15 50.3 | 84.7 | 45.5 | 20.7 RZ-162HI 30 112 1.091 1.4310 193.3 276.44 164.44 50.5 | 85.4 | 45.4 | 20.6 RZ-162K-01I 25 143 1.277 1.4310 229.9 309.56 166.56 47.3 | 82.2 | 42.3 | 17.6 RZ-162U-19I 32 108 1.418 1.4310 219.4 251.2 143.2 45.5 | 80.9 | 39.8 | 15.8 RZ-156JI 20 123.5 1.657 1.4310 207.8 239.32 115.82 44.6 | 83.2 | 37.0 | 13.5 RZ-162K-21I 25 104 2.006 1.4310 229.9 209.96 105.96 42.9 | 84.1 | 33.6 | 11.2 Number of similar metal springs: 20 Customs tariff number: 73202085; Extension Spring RZ-133I Country of origin: DE, German; Extension Spring RZ-133I Product image - Extension Springs RZ-133I QR-Code: Extension Spring RZ-133I
