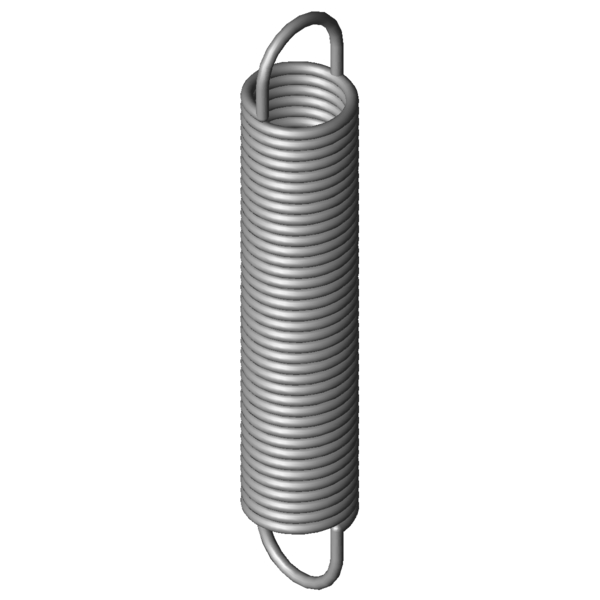

Home » Products » Extension Springs » rz-147k-02i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° Scaled prices - Extension Spring RZ-147K-02I Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-147K-02I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-147K-02I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2.2 mm Wire diameter D mm mean coil diameter De 20 mm outer coil diameter Dh 23.8 mm minimum bush diameter L0 112 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 87.45 mm length of unstressed spring body Ln 256.5 mm maximum spring length, inner loop to inner loop sn 144.5 mm Maximum spring deflection Fn 147.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 12.55 mm distance of inner edge of loop from the spring body R 0.938 N/mm Spring rate F0 11.7 N initial tension Fntol 8.82 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 68.0736 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° force-path-calculation Extension Spring RZ-147K-02I Inquiry formular Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° Inquiry formular Extension Spring RZ-147K-02I Similar extension springs to Extension Spring RZ-147K-02I Stainless steel Ø 2.2 x 20 x 112 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-147K-02I 1.4310 2.2 20 112 147.2 256.5 144.5 0.938 89.5 | 89.6 | 85.2 | 93.7 Z-147K-02I EN 10270-1 2.2 20 112 176.1 258.86 146.86 1.099 92.0 | 100.0 | 91.0 | 85.0 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-15I 20 109 0.131 1.4310 51.22 476.18 367.18 46.0 | 85.1 | 38.4 | 14.6 RZ-118AI 21.6 117 0.134 1.4310 56.93 517.96 400.96 46.1 | 87.0 | 37.4 | 13.9 RZ-115V-14I 20 99 0.15 1.4310 51.22 418.1 319.1 48.6 | 88.0 | 41.0 | 16.8 RZ-115V-13I 20 90 0.173 1.4310 51.22 367.95 277.95 50.3 | 87.6 | 44.0 | 19.3 RZ-121CI 17.6 123 0.231 1.4310 69.37 401.2 278.2 52.6 | 83.9 | 49.5 | 24.5 RZ-130KI 20 136 0.256 1.4310 84.95 446.23 310.23 55.7 | 88.1 | 52.1 | 26.9 RZ-121BI 17.6 111 0.262 1.4310 69.37 357.01 246.01 56.9 | 86.7 | 54.4 | 29.5 RZ-136AI 22 124 0.376 1.4310 103.4 379.89 255.89 64.6 | 90.7 | 63.4 | 39.7 RZ-130JI 20 100 0.386 1.4310 84.95 305.95 205.95 67.3 | 92.7 | 65.9 | 43.2 RZ-136I 22 110 0.443 1.4310 103.4 327.37 217.37 69.5 | 93.3 | 68.4 | 46.7 RZ-141AI 18 118 0.735 1.4310 125.1 275.43 157.43 86.1 | 91.9 | 88.4 | 78.0 RZ-147K-03I 20 134 0.749 1.4310 147.2 314.82 180.82 88.1 | 94.5 | 90.0 | 79.9 RZ-141I 18 104 0.865 1.4310 125.1 237.73 133.73 96.7 | 96.0 | 96.0 | 98.0 RZ-137AI 18.6 95 0.887 1.4310 121.3 222.1 127.1 100.0 | 100.0 | 100.0 | 100.0 RZ-147K-02I 20 112 0.938 1.4310 147.2 256.5 144.5 89.5 | 89.6 | 85.2 | 93.7 RZ-147K-01I 20 90.9 1.275 1.4310 147.2 197.16 106.26 81.7 | 93.2 | 83.0 | 68.9 RZ-156JI 20 123.5 1.657 1.4310 207.8 239.32 115.82 75.1 | 92.9 | 75.5 | 56.8 RZ-159I 18.5 124 2.113 1.4310 223.4 221.23 97.23 67.1 | 90.3 | 66.6 | 44.3 RZ-156HI 20 91 2.501 1.4310 207.8 167.71 76.71 61.4 | 89.6 | 59.4 | 35.2 RZ-162U-30I 24 115 2.783 1.4310 287.9 210.56 95.56 59.0 | 84.7 | 58.6 | 33.8 RZ-162N-01I 20 112 3.465 1.4310 282.9 187.31 75.31 57.4 | 92.9 | 52.1 | 27.1 RZ-162NI 20 95.8 4.314 1.4310 282.9 156.29 60.49 51.2 | 87.9 | 45.2 | 20.4 RZ-173I 23.2 110 4.681 1.4310 356.7 181 71 50.0 | 84.4 | 45.2 | 20.3 RZ-162U-41I 18 123.5 6.269 1.4310 373.9 177.57 54.07 45.9 | 84.7 | 38.4 | 14.7 RZ-162U-40I 18 105.5 7.636 1.4310 373.9 149.88 44.38 43.2 | 84.5 | 33.7 | 11.3 RZ-176I 19.2 103 9.143 1.4310 422.9 145.28 42.28 41.5 | 83.9 | 31.0 | 9.5 RZ-202AI 24 113.5 13.659 1.4310 643.3 156.6 43.1 37.4 | 79.0 | 26.4 | 6.8 RZ-177SI 18 111 20.089 1.4310 617.1 138.87 27.87 34.8 | 79.3 | 20.8 | 4.3 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring RZ-147K-02I Country of origin: DE, German; Extension Spring RZ-147K-02I Product image - Extension Springs RZ-147K-02I QR-Code: Extension Spring RZ-147K-02I
