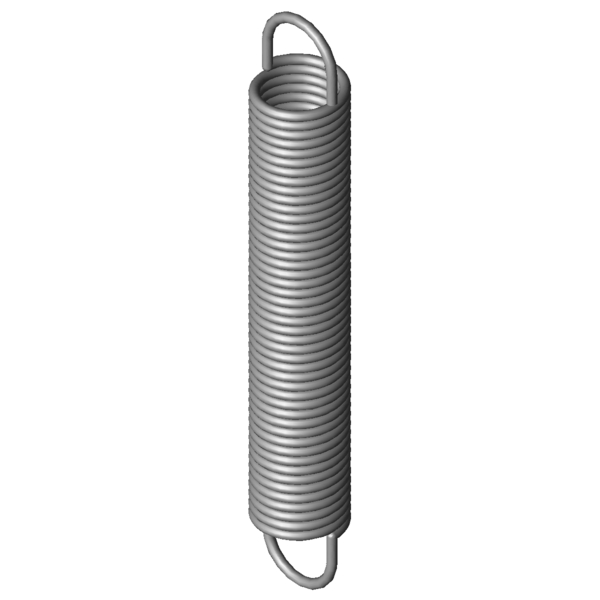

Home » Products » Extension Springs » rz-141ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° Scaled prices - Extension Spring RZ-141AI Quantity Single price [EUR] 1 7.0400 EUR 2 4.4400 EUR 3 3.4600 EUR 7 2.9500 EUR 17 1.5300 EUR 37 1.2300 EUR 75 1.0500 EUR 125 1.0500 EUR 175 1.0500 EUR 250 1.0500 EUR 350 1.0500 EUR 450 1.0500 EUR Extension Spring Buy Product image Extension Spring RZ-141AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-141AI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2 mm Wire diameter D mm mean coil diameter De 18 mm outer coil diameter Dh 21.3 mm minimum bush diameter L0 118 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 95 mm length of unstressed spring body Ln 275.43 mm maximum spring length, inner loop to inner loop sn 157.43 mm Maximum spring deflection Fn 125.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 11.5 mm distance of inner edge of loop from the spring body R 0.735 N/mm Spring rate F0 9.441 N initial tension Fntol 7.37 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 39 degree (+/-) tolerance of loop position Weight 60.247 g weight of one spring Price group #ZN - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° force-path-calculation Extension Spring RZ-141AI Inquiry formular Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° Inquiry formular Extension Spring RZ-141AI Similar extension springs to Extension Spring RZ-141AI Stainless steel Ø 2 x 18 x 118 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-141AI 1.4310 2 18 118 125.1 275.43 157.43 0.735 100.0 | 100.0 | 100.0 | 100.0 Z-141AI EN 10270-1 2 18 118 149.2 278.64 160.64 0.856 92.2 | 100.0 | 90.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-115V-16I 20 121 0.114 1.4310 51.22 543.08 422.08 47.3 | 87.5 | 39.1 | 15.3 RZ-115V-15I 20 109 0.131 1.4310 51.22 476.18 367.18 48.4 | 85.8 | 41.9 | 17.6 RZ-118AI 21.6 117 0.134 1.4310 56.93 517.96 400.96 49.2 | 87.5 | 42.4 | 17.9 RZ-121DI 17.6 136 0.201 1.4310 69.37 455.59 319.59 56.0 | 88.2 | 52.4 | 27.3 RZ-121CI 17.6 123 0.231 1.4310 69.37 401.2 278.2 59.5 | 91.2 | 56.0 | 31.4 RZ-115V-27I 15 125.5 0.259 1.4310 67.55 366.38 240.88 59.7 | 84.1 | 59.7 | 35.3 RZ-121BI 17.6 111 0.262 1.4310 69.37 357.01 246.01 61.9 | 90.6 | 59.7 | 35.5 RZ-115V-26I 15 113.5 0.293 1.4310 67.55 326.65 213.15 62.9 | 84.8 | 63.9 | 39.9 RZ-121AI 17.6 99.8 0.301 1.4310 69.37 313.63 213.83 64.3 | 87.5 | 64.5 | 40.8 RZ-121MI 15.5 120 0.347 1.4310 78.31 328.82 208.82 68.1 | 88.1 | 69.0 | 47.2 RZ-121LI 15.5 107.5 0.399 1.4310 78.31 289.16 181.66 71.5 | 85.7 | 74.6 | 54.2 RZ-124CI 14.1 118 0.477 1.4310 85.63 284.18 166.18 77.5 | 86.1 | 81.6 | 64.8 RZ-141BI 18 132 0.639 1.4310 125.1 313.13 181.13 92.3 | 96.5 | 93.5 | 86.9 RZ-130K-04I 16 109 0.661 1.4310 105 255.85 146.85 89.7 | 90.4 | 88.6 | 90.0 RZ-141AI 18 118 0.735 1.4310 125.1 275.43 157.43 100.0 | 100.0 | 100.0 | 100.0 RZ-141I 18 104 0.865 1.4310 125.1 237.73 133.73 91.2 | 96.0 | 92.5 | 84.9 RZ-137AI 18.6 95 0.887 1.4310 121.3 222.1 127.1 88.2 | 92.4 | 88.8 | 83.3 RZ-147K-02I 20 112 0.938 1.4310 147.2 256.5 144.5 86.1 | 91.9 | 88.4 | 78.0 RZ-141HI 16 121 1.031 1.4310 139.7 245.35 124.35 83.5 | 95.5 | 84.3 | 70.7 RZ-156JI 20 123.5 1.657 1.4310 207.8 239.32 115.82 66.6 | 88.5 | 66.9 | 44.3 RZ-159AI 18.5 141 1.795 1.4310 223.4 255.46 114.46 64.0 | 87.0 | 64.4 | 40.7 RZ-159I 18.5 124 2.113 1.4310 223.4 221.23 97.23 61.4 | 90.8 | 58.9 | 34.6 RZ-162N-01I 20 112 3.465 1.4310 282.9 187.31 75.31 50.9 | 85.4 | 46.0 | 21.2 RZ-162I 15 118 4.43 1.4310 269.8 173.62 55.62 48.3 | 87.8 | 40.8 | 16.4 RZ-162U-42I 18 144.5 5.185 1.4310 373.9 209.87 65.37 44.7 | 82.8 | 37.5 | 13.9 RZ-162U-41I 18 123.5 6.269 1.4310 373.9 177.57 54.07 44.3 | 87.4 | 33.9 | 11.5 RZ-162U-40I 18 105.5 7.636 1.4310 373.9 149.88 44.38 41.9 | 85.4 | 30.8 | 9.4 RZ-176I 19.2 103 9.143 1.4310 422.9 145.28 42.28 39.1 | 81.2 | 28.2 | 7.9 RZ-177SI 18 111 20.089 1.4310 617.1 138.87 27.87 35.3 | 83.2 | 19.0 | 3.6 Number of similar metal springs: 28 Customs tariff number: 73202085; Extension Spring RZ-141AI Country of origin: DE, German; Extension Spring RZ-141AI Product image - Extension Springs RZ-141AI QR-Code: Extension Spring RZ-141AI
