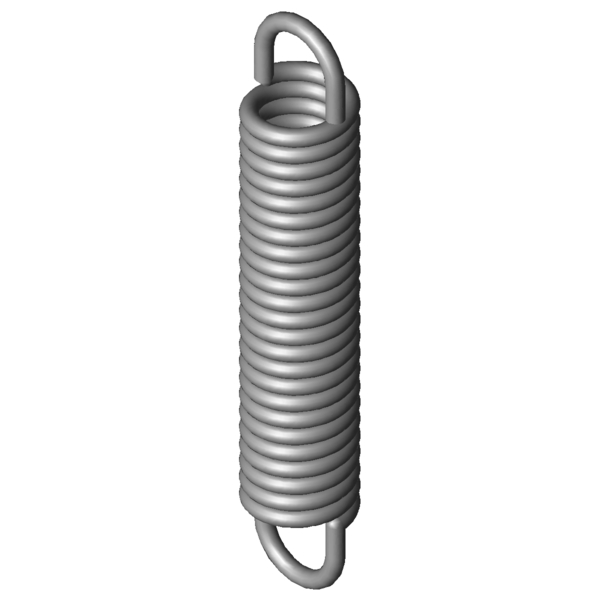

Home » Products » Extension Springs » rz-176i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° Scaled prices - Extension Spring RZ-176I Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring RZ-176I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-176I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 19.2 mm outer coil diameter Dh 24.3 mm minimum bush diameter L0 103 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.6 mm length of unstressed spring body Ln 145.28 mm maximum spring length, inner loop to inner loop sn 42.28 mm Maximum spring deflection Fn 422.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 10.7 mm distance of inner edge of loop from the spring body R 9.143 N/mm Spring rate F0 36.4 N initial tension Fntol 40.52 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.3 mm (+/-) tolerance of outer coil diameter Oesttol 26 degree (+/-) tolerance of loop position Weight 83.9088 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° force-path-calculation Extension Spring RZ-176I Inquiry formular Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° Inquiry formular Extension Spring RZ-176I Similar extension springs to Extension Spring RZ-176I Stainless steel Ø 3.2 x 19.2 x 103 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-176I 1.4310 3.2 19.2 103 422.9 145.28 42.28 9.143 100.0 | 100.0 | 100.0 | 100.0 Z-176I EN 10270-1 3.2 19.2 103 510 146.64 43.64 10.645 91.8 | 100.0 | 89.9 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-136I 22 110 0.443 1.4310 103.4 327.37 217.37 35.9 | 81.1 | 22.0 | 4.8 RZ-130K-04I 16 109 0.661 1.4310 105 255.85 146.85 37.3 | 78.0 | 26.8 | 7.1 RZ-141AI 18 118 0.735 1.4310 125.1 275.43 157.43 39.1 | 81.2 | 28.2 | 7.9 RZ-141I 18 104 0.865 1.4310 125.1 237.73 133.73 41.7 | 85.1 | 30.6 | 9.4 RZ-137AI 18.6 95 0.887 1.4310 121.3 222.1 127.1 41.5 | 83.9 | 31.0 | 9.5 RZ-147K-02I 20 112 0.938 1.4310 147.2 256.5 144.5 42.6 | 85.6 | 32.0 | 10.2 RZ-140AI 18 87.4 1.085 1.4310 125.1 194.05 106.65 42.2 | 80.4 | 34.6 | 11.7 RZ-147K-01I 20 90.9 1.275 1.4310 147.2 197.16 106.26 45.2 | 84.3 | 37.3 | 13.8 RZ-156HI 20 91 2.501 1.4310 207.8 167.71 76.71 55.6 | 87.5 | 52.1 | 27.1 RZ-156GI 20 86 2.714 1.4310 207.8 156.7 70.7 56.6 | 85.9 | 54.5 | 29.4 RZ-158I 18.5 86.6 3.406 1.4310 223.4 146.91 60.31 61.6 | 86.2 | 61.5 | 37.0 RZ-162N-01I 20 112 3.465 1.4310 282.9 187.31 75.31 63.6 | 91.8 | 61.5 | 37.6 RZ-162NI 20 95.8 4.314 1.4310 282.9 156.29 60.49 69.1 | 92.2 | 68.4 | 46.8 RZ-162U-40I 18 105.5 7.636 1.4310 373.9 149.88 44.38 90.4 | 95.0 | 91.8 | 84.2 RZ-176I 19.2 103 9.143 1.4310 422.9 145.28 42.28 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-39I 18 86 10.244 1.4310 373.9 119.07 33.07 87.4 | 90.3 | 83.3 | 88.5 RZ-177SI 18 111 20.089 1.4310 617.1 138.87 27.87 68.1 | 91.8 | 67.2 | 45.2 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring RZ-176I Country of origin: DE, German; Extension Spring RZ-176I Product image - Extension Springs RZ-176I QR-Code: Extension Spring RZ-176I
