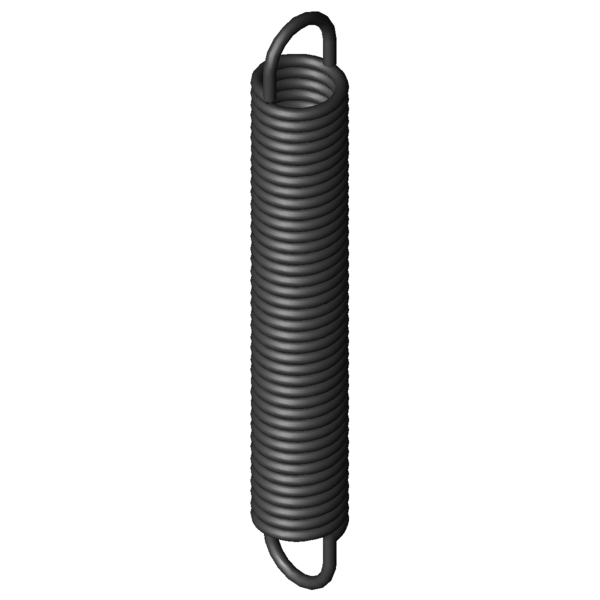

Home » Products » Extension Springs » z-174x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° Scaled prices - Extension Spring Z-174X Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-174X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-174X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 23.2 mm outer coil diameter Dh 28.4 mm minimum bush diameter L0 158 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 130.4 mm length of unstressed spring body Ln 277 mm maximum spring length, inner loop to inner loop sn 119 mm Maximum spring deflection Fn 430.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 13.8 mm distance of inner edge of loop from the spring body R 3.359 N/mm Spring rate F0 30.4 N initial tension Fntol 25.73 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 35 degree (+/-) tolerance of loop position Weight 165.82 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° force-path-calculation Extension Spring Z-174X Inquiry formular Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° Inquiry formular Extension Spring Z-174X Similar extension springs to Extension Spring Z-174X Spring steel Ø 3.2 x 23.2 x 158 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-174X EN 10270-1 3.2 23.2 158 430.1 277 119 3.359 100.0 | 100.0 | 100.0 | 100.0 RZ-174X 1.4310 3.2 23.2 158 356.7 273.21 115.21 2.885 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156CX 22.5 185 0.806 EN 10270-1 223.8 440.88 255.88 53.4 | 86.8 | 49.3 | 24.2 Z-156BX 22.5 165 0.925 EN 10270-1 223.8 387.73 222.73 56.9 | 90.3 | 52.7 | 27.8 Z-156AX 22.5 148 1.064 EN 10270-1 223.8 341.72 193.72 59.4 | 89.6 | 56.7 | 32.0 Z-162K-02X 25 171 1.174 EN 10270-1 277.6 389.01 218.01 61.9 | 90.9 | 59.6 | 35.2 Z-156X 22.5 130 1.251 EN 10270-1 223.8 294.72 164.72 61.8 | 85.8 | 62.1 | 37.6 Z-156KX 20 163.5 1.356 EN 10270-1 249.9 332.91 169.41 64.0 | 87.0 | 64.2 | 40.8 Z-162K-01X 25 143 1.477 EN 10270-1 277.6 316.29 173.29 67.1 | 90.3 | 66.6 | 44.3 Z-159BX 18.5 159 1.808 EN 10270-1 268.6 295.12 136.12 71.8 | 85.7 | 74.9 | 54.6 Z-162U-33X 24 172 1.906 EN 10270-1 348.5 340.46 168.46 75.7 | 94.1 | 75.8 | 57.2 Z-162U-32X 24 154 2.187 EN 10270-1 348.5 300.84 146.84 80.9 | 96.0 | 81.0 | 65.7 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 81.7 | 88.7 | 84.8 | 71.5 Z-162U-31X 24 133 2.64 EN 10270-1 348.5 254.61 121.61 86.8 | 91.5 | 89.4 | 79.3 Z-174AX 23.2 180 2.856 EN 10270-1 430.1 319.96 139.96 91.2 | 95.9 | 92.5 | 85.0 Z-162O-01X 20 146 2.879 EN 10270-1 341.5 255.1 109.1 86.9 | 88.7 | 85.5 | 86.6 Z-174X 23.2 158 3.359 EN 10270-1 430.1 277 119 100.0 | 100.0 | 100.0 | 100.0 Z-177OX 25 176 4.392 EN 10270-1 555.1 294.03 118.03 85.2 | 90.5 | 88.3 | 76.8 Z-177X 19.2 151 6.561 EN 10270-1 510 221.8 70.8 71.6 | 92.8 | 71.9 | 50.2 Z-203X 24 141 11.748 EN 10270-1 765.7 200.33 59.33 56.6 | 88.6 | 53.0 | 28.0 Z-231X 25 156 17.424 EN 10270-1 1008 207.44 51.44 49.6 | 87.5 | 42.9 | 18.4 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring Z-174X Country of origin: DE, German; Extension Spring Z-174X Product image - Extension Springs Z-174X QR-Code: Extension Spring Z-174X
