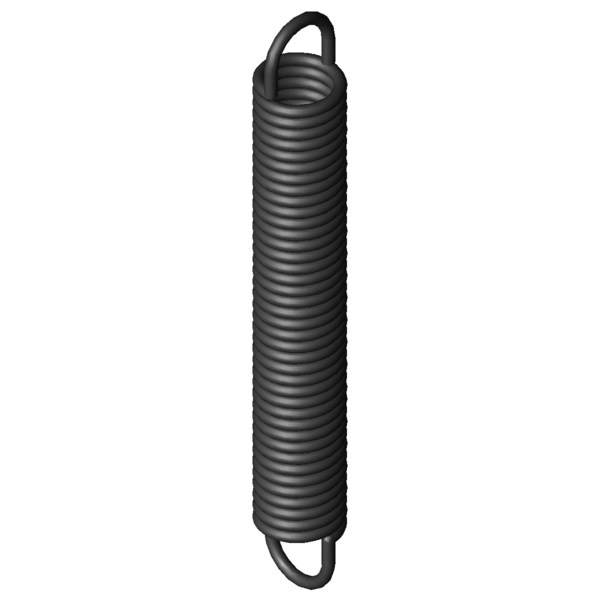

Home » Products » Extension Springs » z-177ox Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° Scaled prices - Extension Spring Z-177OX Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 3.7100 EUR 37 3.7100 EUR 75 3.7100 EUR 125 3.7100 EUR 175 3.7100 EUR 250 3.7100 EUR 350 3.7100 EUR Extension Spring Buy Product image Extension Spring Z-177OX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177OX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 25 mm outer coil diameter Dh 30.8 mm minimum bush diameter L0 176 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 146.7 mm length of unstressed spring body Ln 294.03 mm maximum spring length, inner loop to inner loop sn 118.03 mm Maximum spring deflection Fn 555.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 14.65 mm distance of inner edge of loop from the spring body R 4.392 N/mm Spring rate F0 36.8 N initial tension Fntol 34.34 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 35 degree (+/-) tolerance of loop position Weight 224.5563 g weight of one spring Price group ###AD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° force-path-calculation Extension Spring Z-177OX Inquiry formular Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° Inquiry formular Extension Spring Z-177OX Similar extension springs to Extension Spring Z-177OX Spring steel Ø 3.6 x 25 x 176 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177OX EN 10270-1 3.6 25 176 555.1 294.03 118.03 4.392 100.0 | 100.0 | 100.0 | 100.0 RZ-177OX 1.4310 3.6 25 176 463.3 291.03 115.03 3.773 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-156CX 22.5 185 0.806 EN 10270-1 223.8 440.88 255.88 48.9 | 84.9 | 43.2 | 18.6 Z-156BX 22.5 165 0.925 EN 10270-1 223.8 387.73 222.73 50.8 | 84.4 | 46.7 | 21.4 Z-162K-03X 25 199 0.974 EN 10270-1 277.6 461.73 262.73 52.9 | 88.7 | 47.5 | 22.5 Z-162K-02X 25 171 1.174 EN 10270-1 277.6 389.01 218.01 56.9 | 91.6 | 52.1 | 27.1 Z-171AX 28.2 188 1.462 EN 10270-1 358.7 417.26 229.26 60.6 | 90.4 | 58.1 | 33.3 Z-162K-01X 25 143 1.477 EN 10270-1 277.6 316.29 173.29 59.8 | 86.3 | 59.1 | 34.1 Z-162U-34X 24 193 1.658 EN 10270-1 348.5 386.68 193.68 63.4 | 90.2 | 61.9 | 38.3 Z-171X 28.2 166 1.72 EN 10270-1 358.7 360.93 194.93 64.1 | 90.6 | 62.6 | 39.1 Z-162U-33X 24 172 1.906 EN 10270-1 348.5 340.46 168.46 67.6 | 92.4 | 66.4 | 44.0 Z-162U-32X 24 154 2.187 EN 10270-1 348.5 300.84 146.84 70.3 | 88.9 | 71.6 | 50.5 Z-162O-02X 20 171 2.378 EN 10270-1 341.5 303.07 132.07 71.8 | 85.0 | 75.4 | 55.0 Z-174BX 23.2 202 2.484 EN 10270-1 430.1 362.92 160.92 74.0 | 89.6 | 75.4 | 56.8 Z-174AX 23.2 180 2.856 EN 10270-1 430.1 319.96 139.96 79.8 | 93.2 | 80.9 | 65.3 Z-174X 23.2 158 3.359 EN 10270-1 430.1 277 119 85.2 | 90.5 | 88.3 | 76.8 Z-177OX 25 176 4.392 EN 10270-1 555.1 294.03 118.03 100.0 | 100.0 | 100.0 | 100.0 Z-204X 24 193 8 EN 10270-1 765.7 280.11 87.11 73.0 | 92.4 | 73.1 | 53.5 Z-233X 25 215 11.899 EN 10270-1 1008 290.54 75.54 60.7 | 87.3 | 59.5 | 35.2 Z-232X 25 183 14.368 EN 10270-1 1008 245.56 62.56 58.4 | 92.1 | 54.0 | 29.2 Z-254X 30 177 14.685 EN 10270-1 1134 246.76 69.76 56.0 | 84.9 | 54.0 | 28.9 Z-231X 25 156 17.424 EN 10270-1 1008 207.44 51.44 54.3 | 89.5 | 49.3 | 24.0 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-177OX Country of origin: DE, German; Extension Spring Z-177OX Product image - Extension Springs Z-177OX QR-Code: Extension Spring Z-177OX
