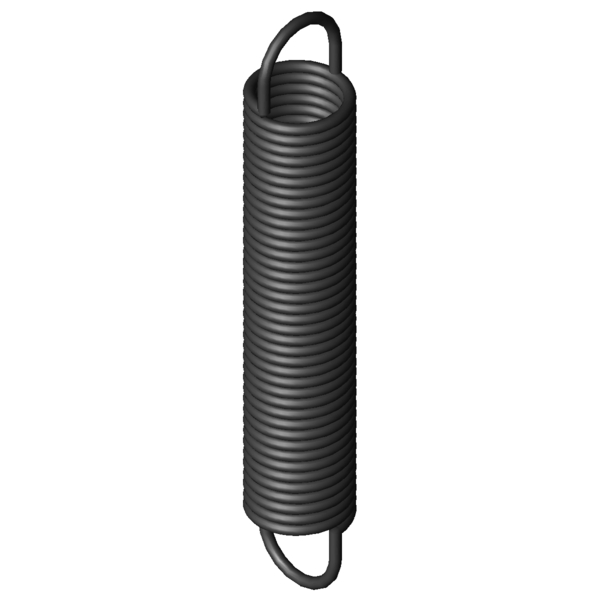

Home » Products » Extension Springs » z-171x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° Scaled prices - Extension Spring Z-171X Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 3.1800 EUR 37 3.1800 EUR 75 3.1800 EUR 125 3.1800 EUR 175 3.1800 EUR 250 3.1800 EUR 350 3.1800 EUR 450 3.1800 EUR Extension Spring Buy Product image Extension Spring Z-171X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-171X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 28.2 mm outer coil diameter Dh 33.4 mm minimum bush diameter L0 166 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 130.4 mm length of unstressed spring body Ln 360.93 mm maximum spring length, inner loop to inner loop sn 194.93 mm Maximum spring deflection Fn 358.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 17.8 mm distance of inner edge of loop from the spring body R 1.72 N/mm Spring rate F0 23.5 N initial tension Fntol 18.45 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 36 degree (+/-) tolerance of loop position Weight 207.4 g weight of one spring Price group ###ZP - price group Technical drawing Extension Spring Datasheet Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° force-path-calculation Extension Spring Z-171X Inquiry formular Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° Inquiry formular Extension Spring Z-171X Similar extension springs to Extension Spring Z-171X Spring steel Ø 3.2 x 28.2 x 166 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-171X EN 10270-1 3.2 28.2 166 358.7 360.93 194.93 1.72 100.0 | 100.0 | 100.0 | 100.0 RZ-171X 1.4310 3.2 28.2 166 297.5 354.67 188.67 1.477 91.9 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-133AX 27 146 0.194 EN 10270-1 101.2 632.1 486.1 42.5 | 82.1 | 34.2 | 11.3 Z-136DX 22 170 0.292 EN 10270-1 123.3 561.82 391.82 46.2 | 79.4 | 42.1 | 17.1 Z-147KX 24 166 0.386 EN 10270-1 148 524.62 358.62 51.6 | 84.6 | 47.8 | 22.4 Z-153CX 27.5 193 0.412 EN 10270-1 184.9 608.13 415.13 53.6 | 87.2 | 49.3 | 24.2 Z-153BX 27.5 173 0.474 EN 10270-1 184.9 534.35 361.35 57.0 | 90.5 | 52.7 | 27.8 Z-153AX 27.5 156 0.545 EN 10270-1 184.9 470.29 314.29 59.5 | 89.9 | 56.8 | 32.0 Z-153X 27.5 138 0.641 EN 10270-1 184.9 405.23 267.23 62.0 | 86.3 | 62.2 | 37.6 Z-162U-23X 32 185 0.724 EN 10270-1 265.6 523.67 338.67 66.3 | 90.5 | 65.8 | 42.6 Z-162JX 30 154 0.783 EN 10270-1 233.4 429.52 275.52 68.5 | 91.4 | 67.9 | 46.0 Z-162U-22X 32 167 0.83 EN 10270-1 265.6 462.2 295.2 70.9 | 93.8 | 70.0 | 48.9 Z-156BX 22.5 165 0.925 EN 10270-1 223.8 387.73 222.73 71.8 | 85.8 | 75.0 | 54.6 Z-162K-02X 25 171 1.174 EN 10270-1 277.6 389.01 218.01 81.2 | 91.1 | 83.4 | 69.2 Z-171AX 28.2 188 1.462 EN 10270-1 358.7 417.26 229.26 91.2 | 96.1 | 92.5 | 85.0 Z-162K-01X 25 143 1.477 EN 10270-1 277.6 316.29 173.29 85.9 | 87.4 | 83.1 | 87.1 Z-171X 28.2 166 1.72 EN 10270-1 358.7 360.93 194.93 100.0 | 100.0 | 100.0 | 100.0 Z-162U-33X 24 172 1.906 EN 10270-1 348.5 340.46 168.46 90.8 | 91.8 | 91.8 | 89.0 Z-177K-02X 32 179 1.979 EN 10270-1 441.6 384.33 205.33 87.9 | 89.9 | 88.1 | 85.6 Z-162U-32X 24 154 2.187 EN 10270-1 348.5 300.84 146.84 84.8 | 90.5 | 86.2 | 77.5 Z-177K-01X 32 154 2.429 EN 10270-1 441.6 321.25 167.25 81.0 | 89.9 | 83.5 | 69.7 Z-174X 23.2 158 3.359 EN 10270-1 430.1 277 119 71.9 | 92.5 | 72.2 | 50.9 Z-196X 29 201 4.096 EN 10270-1 645.8 347.95 146.95 64.6 | 86.6 | 65.5 | 41.9 Z-177OX 25 176 4.392 EN 10270-1 555.1 294.03 118.03 64.1 | 90.6 | 62.6 | 39.1 Z-195X 29 149 6.015 EN 10270-1 645.8 249.05 100.05 57.0 | 89.0 | 53.4 | 28.5 Z-225X 30 190 7.465 EN 10270-1 858.7 295.4 105.4 51.6 | 84.2 | 47.9 | 22.6 Z-224X 30 163 9.079 EN 10270-1 858.7 249.66 86.66 49.8 | 87.8 | 43.1 | 18.6 Z-232X 25 183 14.368 EN 10270-1 1008 245.56 62.56 42.9 | 83.5 | 33.8 | 11.4 Z-254X 30 177 14.685 EN 10270-1 1134 246.76 69.76 43.0 | 83.9 | 33.7 | 11.3 Z-231X 25 156 17.424 EN 10270-1 1008 207.44 51.44 41.7 | 84.6 | 31.0 | 9.4 Z-253JX 30 140 19.63 EN 10270-1 1134 192.2 52.2 39.5 | 80.8 | 29.2 | 8.5 Number of similar metal springs: 28 Customs tariff number: 73202085; Extension Spring Z-171X Country of origin: DE, German; Extension Spring Z-171X Product image - Extension Springs Z-171X QR-Code: Extension Spring Z-171X
