Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

Scaled prices - Extension Spring Z-171AX

Quantity Single price [EUR]
1 7.8500 EUR
2 4.9500 EUR
3 4.0000 EUR
7 3.4100 EUR
17 3.4100 EUR
37 3.4100 EUR
75 3.4100 EUR
125 3.4100 EUR
175 3.4100 EUR
250 3.4100 EUR
350 3.4100 EUR
450 3.4100 EUR

Extension Spring Buy

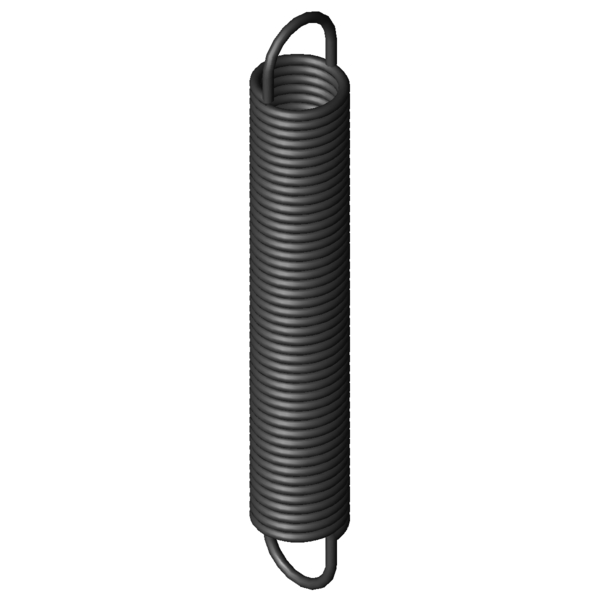

Product image Extension Spring Z-171AX
Product image Extension Spring Z-171AX
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-171AX

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 270 ° Eyelet position
d 3.2 mm Wire diameter
D mm mean coil diameter
De 28.2 mm outer coil diameter
Dh 33.4 mm minimum bush diameter
L0 188 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 152.8 mm length of unstressed spring body
Ln 417.26 mm maximum spring length, inner loop to inner loop
sn 229.26 mm Maximum spring deflection
Fn 358.7 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 17.6 mm distance of inner edge of loop from the spring body
R 1.462 N/mm Spring rate
F0 23.5 N initial tension
Fntol 18.01 N (+/-) tolerance of maximum spring force
L0tol 2.5 mm (+/-) tolerance of unstressed length
Detol 0.35 mm (+/-) tolerance of outer coil diameter
Oesttol 39 degree (+/-) tolerance of loop position
Weight 242.1 g weight of one spring
Price group ###ZS - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

force-path-calculation Extension Spring Z-171AX

Inquiry formular Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

Inquiry formular Extension Spring Z-171AX

Similar extension springs to Extension Spring Z-171AX Spring steel Ø 3.2 x 28.2 x 188 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-171AX EN 10270-1 3.2 28.2 188 358.7 417.26 229.26 1.462 100.0 | 100.0 | 100.0 | 100.0
RZ-171AX 1.4310 3.2 28.2 188 297.5 409.9 221.9 1.256 91.9 | 100.0 | 89.9 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-130E-15X 24 178 0.124 EN 10270-1 84.2 824.95 646.95 38.8 | 78.7 | 29.5 | 8.3
Z-147E-24X 30 177 0.187 EN 10270-1 118 784 607 44.5 | 85.6 | 35.3 | 12.4
Z-136EX 22 186 0.262 EN 10270-1 123.3 622.72 436.72 47.1 | 79.8 | 43.4 | 18.0
Z-153DX 27.5 213 0.365 EN 10270-1 184.9 681.91 468.91 54.5 | 88.0 | 50.2 | 25.2
Z-153CX 27.5 193 0.412 EN 10270-1 184.9 608.13 415.13 57.6 | 91.0 | 53.4 | 28.5
Z-153BX 27.5 173 0.474 EN 10270-1 184.9 534.35 361.35 59.8 | 89.2 | 57.5 | 32.7
Z-162KX 30 210 0.521 EN 10270-1 233.4 624.14 414.14 62.2 | 90.3 | 60.2 | 36.0
Z-153AX 27.5 156 0.545 EN 10270-1 184.9 470.29 314.29 62.0 | 86.2 | 62.2 | 37.6
Z-162U-24X 32 206 0.629 EN 10270-1 265.6 595.38 389.38 67.0 | 91.0 | 66.5 | 43.6
Z-162U-23X 32 185 0.724 EN 10270-1 265.6 523.67 338.67 71.5 | 93.4 | 70.9 | 50.1
Z-156CX 22.5 185 0.806 EN 10270-1 223.8 440.88 255.88 72.4 | 85.4 | 76.0 | 55.9
Z-162K-03X 25 199 0.974 EN 10270-1 277.6 461.73 262.73 80.0 | 90.2 | 82.3 | 67.5
Z-162K-02X 25 171 1.174 EN 10270-1 277.6 389.01 218.01 85.6 | 89.0 | 86.2 | 81.4
Z-171BX 28.2 210 1.272 EN 10270-1 358.7 473.59 263.59 92.3 | 96.5 | 93.5 | 87.0
Z-171AX 28.2 188 1.462 EN 10270-1 358.7 417.26 229.26 100.0 | 100.0 | 100.0 | 100.0
Z-162U-34X 24 193 1.658 EN 10270-1 348.5 386.68 193.68 90.0 | 92.1 | 90.8 | 87.0
Z-177K-03X 32 205 1.669 EN 10270-1 441.6 448.4 243.4 87.8 | 89.6 | 87.7 | 86.2
Z-171X 28.2 166 1.72 EN 10270-1 358.7 360.93 194.93 91.2 | 96.1 | 92.5 | 85.0
Z-162U-33X 24 172 1.906 EN 10270-1 348.5 340.46 168.46 83.7 | 90.1 | 85.3 | 75.6
Z-177K-02X 32 179 1.979 EN 10270-1 441.6 384.33 205.33 83.0 | 90.7 | 85.4 | 72.7
Z-174AX 23.2 180 2.856 EN 10270-1 430.1 319.96 139.96 71.9 | 92.7 | 72.2 | 50.9
Z-197X 29 225 3.57 EN 10270-1 645.8 393.58 168.58 64.1 | 86.9 | 64.5 | 40.8
Z-196X 29 201 4.096 EN 10270-1 645.8 347.95 146.95 61.9 | 90.3 | 59.8 | 35.6
Z-177OX 25 176 4.392 EN 10270-1 555.1 294.03 118.03 60.6 | 90.4 | 58.1 | 33.3
Z-195X 29 149 6.015 EN 10270-1 645.8 249.05 100.05 53.1 | 85.5 | 49.6 | 24.2
Z-225X 30 190 7.465 EN 10270-1 858.7 295.4 105.4 50.4 | 88.0 | 43.9 | 19.2
Z-204X 24 193 8 EN 10270-1 765.7 280.11 87.11 49.2 | 87.5 | 42.4 | 17.8
Z-224X 30 163 9.079 EN 10270-1 858.7 249.66 86.66 46.5 | 83.9 | 39.8 | 15.8
Z-255X 30 207 12.074 EN 10270-1 1134 291.84 84.84 43.0 | 82.9 | 34.3 | 11.7
Z-232X 25 183 14.368 EN 10270-1 1008 245.56 62.56 42.3 | 85.7 | 31.4 | 9.7
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-171AX

Country of origin: DE, German; Extension Spring Z-171AX
