Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

Scaled prices - Extension Spring Z-177K-03X

Quantity	Single price [EUR]
1	13.1800 EUR
2	10.5000 EUR
3	6.0600 EUR
7	3.9100 EUR
17	3.9100 EUR
37	3.9100 EUR
75	3.9100 EUR
125	3.9100 EUR
175	3.9100 EUR
250	3.9100 EUR
350	3.9100 EUR

Extension Spring Buy

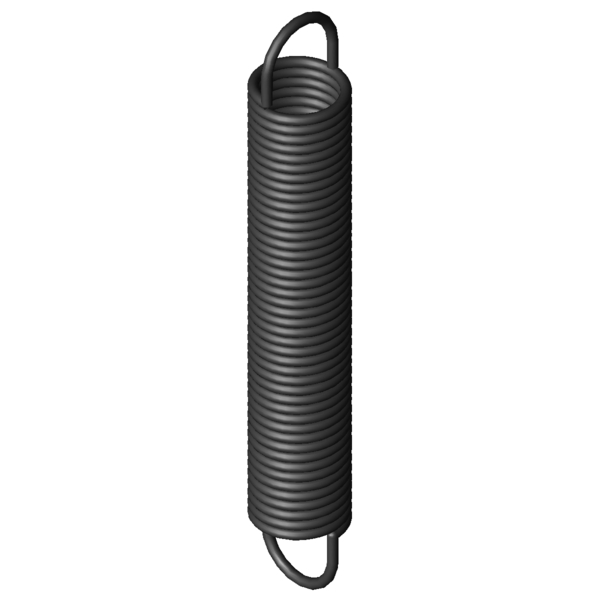

Product image Extension Spring Z-177K-03X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177K-03X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	3.6	mm	Wire diameter
D		mm	mean coil diameter
De	32	mm	outer coil diameter
Dh	37.8	mm	minimum bush diameter
L0	205	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	164.7	mm	length of unstressed spring body
Ln	448.4	mm	maximum spring length, inner loop to inner loop
sn	243.4	mm	Maximum spring deflection
Fn	441.6	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	20.15	mm	distance of inner edge of loop from the spring body
R	1.669	N/mm	Spring rate
F0	35.3	N	initial tension
Fntol	21.98	N	(+/-) tolerance of maximum spring force
L0tol	2.5	mm	(+/-) tolerance of unstressed length
Detol	0.4	mm	(+/-) tolerance of outer coil diameter
Oesttol	39	degree	(+/-) tolerance of loop position
Weight	333.9	g	weight of one spring
Price group	###AE	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

force-path-calculation Extension Spring Z-177K-03X

Inquiry formular Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

Inquiry formular Extension Spring Z-177K-03X

Similar extension springs to Extension Spring Z-177K-03X Spring steel Ø 3.6 x 32 x 205 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-177K-03X	EN 10270-1	3.6	32	205	441.6	448.4	243.4	1.669	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-177K-03X	1.4310	3.6	32	205	368.5	442.39	237.39	1.434	92.0 \| 100.0 \| 90.5 \| 85.6

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-153CX	27.5	193	0.412	EN 10270-1	184.9	608.13	415.13	52.7 \| 83.2 \| 50.3 \| 24.5
Z-162U-26X	32	254	0.485	EN 10270-1	265.6	759.29	505.29	57.0 \| 88.0 \| 54.2 \| 29.0
Z-162KX	30	210	0.521	EN 10270-1	233.4	624.14	414.14	58.9 \| 89.7 \| 55.8 \| 31.1
Z-162U-25X	32	230	0.548	EN 10270-1	265.6	677.33	447.33	60.3 \| 90.8 \| 57.3 \| 32.7
Z-168BX	35.2	222	0.607	EN 10270-1	290.5	670.16	448.16	62.2 \| 90.7 \| 60.0 \| 35.7
Z-162U-24X	32	206	0.629	EN 10270-1	265.6	595.38	389.38	64.4 \| 94.3 \| 61.3 \| 37.6
Z-168AX	35.2	199	0.697	EN 10270-1	290.5	588.8	389.8	65.8 \| 92.3 \| 64.1 \| 41.1
Z-162U-23X	32	185	0.724	EN 10270-1	265.6	523.67	338.67	66.8 \| 91.2 \| 66.0 \| 43.2
Z-168X	35.2	177	0.82	EN 10270-1	290.5	508.43	331.43	68.9 \| 88.7 \| 69.6 \| 48.3
Z-162U-22X	32	167	0.83	EN 10270-1	265.6	462.2	295.2	69.7 \| 88.3 \| 71.3 \| 49.6
Z-162K-03X	25	199	0.974	EN 10270-1	277.6	461.73	262.73	73.4 \| 84.3 \| 77.8 \| 58.2
Z-171BX	28.2	210	1.272	EN 10270-1	358.7	473.59	263.59	84.4 \| 91.5 \| 86.8 \| 75.0
Z-177K-04X	32	230	1.443	EN 10270-1	441.6	511.48	281.48	92.0 \| 96.4 \| 93.2 \| 86.5
Z-171AX	28.2	188	1.462	EN 10270-1	358.7	417.26	229.26	87.8 \| 89.6 \| 87.7 \| 86.2
Z-177K-03X	32	205	1.669	EN 10270-1	441.6	448.4	243.4	100.0 \| 100.0 \| 100.0 \| 100.0
Z-188X	36	212	1.953	EN 10270-1	528.1	464.84	252.84	89.6 \| 91.9 \| 89.9 \| 86.9
Z-177K-02X	32	179	1.979	EN 10270-1	441.6	384.33	205.33	90.8 \| 95.8 \| 92.2 \| 84.4
Z-177K-01X	32	154	2.429	EN 10270-1	441.6	321.25	167.25	81.6 \| 91.7 \| 84.4 \| 68.7
Z-218X	40	206	2.767	EN 10270-1	658.2	423.5	217.5	74.9 \| 86.5 \| 78.2 \| 60.0
Z-197X	29	225	3.57	EN 10270-1	645.8	393.58	168.58	68.9 \| 90.6 \| 68.8 \| 47.4
Z-196X	29	201	4.096	EN 10270-1	645.8	347.95	146.95	66.2 \| 92.9 \| 64.4 \| 41.3
Z-226X	30	222	6.183	EN 10270-1	858.7	349.26	127.26	55.8 \| 88.7 \| 51.9 \| 26.9
Z-225X	30	190	7.465	EN 10270-1	858.7	295.4	105.4	52.8 \| 88.8 \| 47.4 \| 22.3
Z-284X	40	205	8.181	EN 10270-1	1134	328.97	123.97	48.9 \| 81.8 \| 44.9 \| 19.8
Z-224X	30	163	9.079	EN 10270-1	858.7	249.66	86.66	48.7 \| 84.4 \| 43.5 \| 18.3
Z-256X	30	242	10	EN 10270-1	1134	344.44	102.44	46.8 \| 83.5 \| 40.5 \| 16.4
Z-255X	30	207	12.074	EN 10270-1	1134	291.84	84.84	46.2 \| 88.3 \| 36.9 \| 13.6
Z-254X	30	177	14.685	EN 10270-1	1134	246.76	69.76	43.0 \| 84.0 \| 33.8 \| 11.2

Number of similar metal springs: 27

Customs tariff number: 73202085; Extension Spring Z-177K-03X

Country of origin: DE, German; Extension Spring Z-177K-03X
