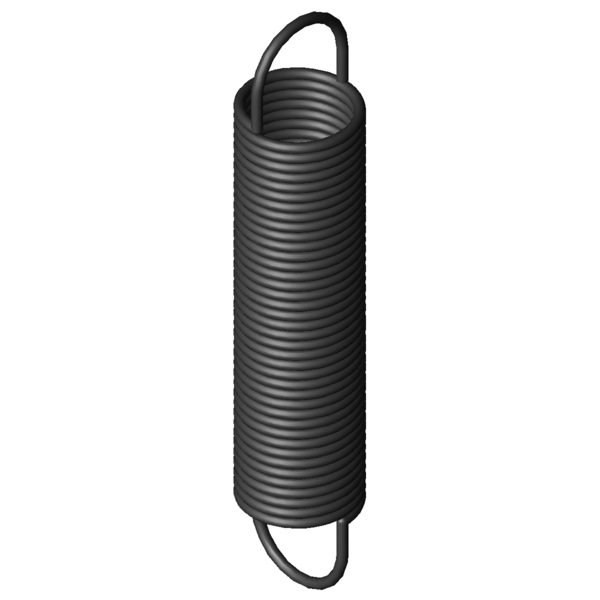

Home » Products » Extension Springs » z-168x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° Scaled prices - Extension Spring Z-168X Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 3.3200 EUR 37 3.3200 EUR 75 3.3200 EUR 125 3.3200 EUR 175 3.3200 EUR 250 3.3200 EUR 350 3.3200 EUR 450 3.3200 EUR Extension Spring Buy Product image Extension Spring Z-168X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-168X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 177 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 130.4 mm length of unstressed spring body Ln 508.43 mm maximum spring length, inner loop to inner loop sn 331.43 mm Maximum spring deflection Fn 290.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.3 mm distance of inner edge of loop from the spring body R 0.82 N/mm Spring rate F0 18.77 N initial tension Fntol 14.24 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 41 degree (+/-) tolerance of loop position Weight 265.3 g weight of one spring Price group ###ZR - price group Technical drawing Extension Spring Datasheet Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° force-path-calculation Extension Spring Z-168X Inquiry formular Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° Inquiry formular Extension Spring Z-168X Similar extension springs to Extension Spring Z-168X Spring steel Ø 3.2 x 35.2 x 177 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-168X EN 10270-1 3.2 35.2 177 290.5 508.43 331.43 0.82 100.0 | 100.0 | 100.0 | 100.0 RZ-168X 1.4310 3.2 35.2 177 240.9 497.8 320.8 0.704 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-147E-24X 30 177 0.187 EN 10270-1 118 784 607 51.5 | 84.7 | 47.6 | 22.2 Z-150AX 34.5 184 0.226 EN 10270-1 148.5 797.83 613.83 57.0 | 90.8 | 52.6 | 27.6 Z-150X 34.5 149 0.306 EN 10270-1 148.5 602.95 453.95 62.1 | 86.8 | 62.1 | 37.3 Z-162U-04X 40 197 0.348 EN 10270-1 214.2 778.74 581.74 66.0 | 90.5 | 65.4 | 42.0 Z-162E-13X 38 167 0.36 EN 10270-1 180 642.7 475.7 66.8 | 91.5 | 65.8 | 43.2 Z-162U-03X 40 179 0.4 EN 10270-1 214.2 686.08 507.08 70.4 | 93.5 | 69.5 | 48.2 Z-153BX 27.5 173 0.474 EN 10270-1 184.9 534.35 361.35 73.6 | 84.7 | 77.7 | 58.4 Z-162U-02X 40 158 0.483 EN 10270-1 214.2 577.97 419.97 75.0 | 90.3 | 76.3 | 58.2 Z-168BX 35.2 222 0.607 EN 10270-1 290.5 670.16 448.16 84.7 | 93.2 | 87.0 | 74.0 Z-162U-24X 32 206 0.629 EN 10270-1 265.6 595.38 389.38 85.4 | 90.2 | 88.3 | 77.8 Z-168AX 35.2 199 0.697 EN 10270-1 290.5 588.8 389.8 91.3 | 96.3 | 92.5 | 85.0 Z-162U-23X 32 185 0.724 EN 10270-1 265.6 523.67 338.67 92.5 | 93.4 | 94.6 | 89.5 Z-168X 35.2 177 0.82 EN 10270-1 290.5 508.43 331.43 100.0 | 100.0 | 100.0 | 100.0 Z-162U-22X 32 167 0.83 EN 10270-1 265.6 462.2 295.2 93.6 | 93.0 | 90.2 | 97.4 Z-177JX 40 200 0.893 EN 10270-1 357.1 578.17 378.17 80.2 | 89.0 | 82.9 | 68.6 Z-162U-21X 32 146 1.003 EN 10270-1 265.6 390.49 244.49 84.1 | 89.0 | 82.6 | 80.7 Z-171AX 28.2 188 1.462 EN 10270-1 358.7 417.26 229.26 74.2 | 91.4 | 75.1 | 56.0 Z-177K-03X 32 205 1.669 EN 10270-1 441.6 448.4 243.4 62.2 | 90.7 | 60.0 | 35.7 Z-171X 28.2 166 1.72 EN 10270-1 358.7 360.93 194.93 69.6 | 91.3 | 69.9 | 47.6 Z-188X 36 212 1.953 EN 10270-1 528.1 464.84 252.84 59.3 | 91.1 | 55.7 | 31.0 Z-177K-02X 32 179 1.979 EN 10270-1 441.6 384.33 205.33 65.8 | 92.9 | 63.9 | 40.8 Z-177K-01X 32 154 2.429 EN 10270-1 441.6 321.25 167.25 60.1 | 88.9 | 58.1 | 33.2 Z-187X 36 160 2.868 EN 10270-1 528.1 332.1 172.1 57.1 | 89.4 | 53.5 | 28.6 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 53.0 | 86.0 | 49.0 | 23.8 Z-247X 40 192 5.352 EN 10270-1 873.5 341.22 149.22 45.2 | 81.4 | 39.1 | 15.0 Z-246JX 40 156 7.15 EN 10270-1 873.5 267.6 111.6 41.6 | 80.0 | 33.5 | 11.2 Z-225X 30 190 7.465 EN 10270-1 858.7 295.4 105.4 42.2 | 83.2 | 32.8 | 10.8 Z-224X 30 163 9.079 EN 10270-1 858.7 249.66 86.66 40.5 | 82.8 | 30.0 | 8.8 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring Z-168X Country of origin: DE, German; Extension Spring Z-168X Product image - Extension Springs Z-168X QR-Code: Extension Spring Z-168X
