Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

Scaled prices - Extension Spring Z-177K-04X

Quantity	Single price [EUR]
1	13.1800 EUR
2	10.5000 EUR
3	6.0600 EUR
7	3.9100 EUR
17	3.9100 EUR
37	3.9100 EUR
75	3.9100 EUR
125	3.9100 EUR
175	3.9100 EUR
250	3.9100 EUR
350	3.9100 EUR

Extension Spring Buy

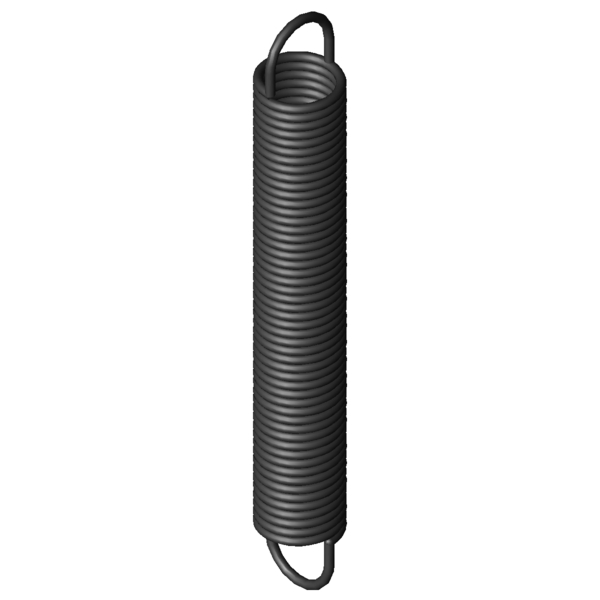

Product image Extension Spring Z-177K-04X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-177K-04X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1	-	N	prestressed spring force
L1	-	mm	Prestressed spring length
s1	-	mm	prestressed spring deflection
F2	-	N	loaded spring force
L2	-	mm	loaded spring length
s2	-	mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	3.6	mm	Wire diameter
D	-	mm	mean coil diameter
De	32	mm	outer coil diameter
Dh	37.8	mm	minimum bush diameter
L0	230	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	189.9	mm	length of unstressed spring body
Ln	511.48	mm	maximum spring length, inner loop to inner loop
sn	281.48	mm	Maximum spring deflection
Fn	441.6	N	Maximum spring force
n	-	pc.	Number of aktive coils
nt	-	pc.	total number of coils
Lh	20.05	mm	distance of inner edge of loop from the spring body
R	1.443	N/mm	Spring rate
F0	35.3	N	initial tension
Fntol	21.56	N	(+/-) tolerance of maximum spring force
L0tol	2.5	mm	(+/-) tolerance of unstressed length
Detol	0.4	mm	(+/-) tolerance of outer coil diameter
Oesttol	41	degree	(+/-) tolerance of loop position
Weight	384.1806	g	weight of one spring
Price group	###AE	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

force-path-calculation Extension Spring Z-177K-04X

Inquiry formular Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

Inquiry formular Extension Spring Z-177K-04X

Similar extension springs to Extension Spring Z-177K-04X Spring steel Ø 3.6 x 32 x 230 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-177K-04X	EN 10270-1	3.6	32	230	441.6	511.48	281.48	1.443	100.0 \| 100.0 \| 100.0 \| 100.0
RZ-177K-04X	1.4310	3.6	32	230	368.5	504.52	274.52	1.24	92.0 \| 100.0 \| 90.5 \| 85.6

Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-153EX	27.5	234	0.328	EN 10270-1	184.9	756.69	522.69	51.7 \| 84.6 \| 47.9 \| 22.5
Z-153DX	27.5	213	0.365	EN 10270-1	184.9	681.91	468.91	52.9 \| 82.7 \| 50.9 \| 25.1
Z-162U-26X	32	254	0.485	EN 10270-1	265.6	759.29	505.29	60.9 \| 91.3 \| 57.9 \| 33.5
Z-162KX	30	210	0.521	EN 10270-1	233.4	624.14	414.14	61.3 \| 87.6 \| 60.4 \| 35.9
Z-168CX	35.2	247	0.528	EN 10270-1	290.5	761.87	514.87	62.4 \| 91.0 \| 60.2 \| 36.0
Z-162U-25X	32	230	0.548	EN 10270-1	265.6	677.33	447.33	64.6 \| 94.4 \| 61.5 \| 37.8
Z-168BX	35.2	222	0.607	EN 10270-1	290.5	670.16	448.16	65.9 \| 92.1 \| 64.3 \| 41.3
Z-162U-24X	32	206	0.629	EN 10270-1	265.6	595.38	389.38	66.9 \| 91.0 \| 66.2 \| 43.5
Z-168AX	35.2	199	0.697	EN 10270-1	290.5	588.8	389.8	68.4 \| 88.8 \| 69.0 \| 47.5
Z-162U-23X	32	185	0.724	EN 10270-1	265.6	523.67	338.67	69.8 \| 87.9 \| 71.6 \| 50.0
Z-162K-04X	25	227	0.832	EN 10270-1	277.6	534.45	307.45	73.2 \| 84.9 \| 77.2 \| 57.6
Z-171DX	28.2	262	0.98	EN 10270-1	358.7	604.05	342.05	79.0 \| 88.3 \| 81.8 \| 66.8
Z-171CX	28.2	236	1.107	EN 10270-1	358.7	538.82	302.82	84.7 \| 91.5 \| 87.1 \| 75.5
Z-171BX	28.2	210	1.272	EN 10270-1	358.7	473.59	263.59	87.9 \| 89.4 \| 87.4 \| 86.7
Z-177K-04X	32	230	1.443	EN 10270-1	441.6	511.48	281.48	100.0 \| 100.0 \| 100.0 \| 100.0
Z-177K-03X	32	205	1.669	EN 10270-1	441.6	448.4	243.4	92.0 \| 96.4 \| 93.2 \| 86.5
Z-189X	36	236	1.702	EN 10270-1	528.1	526.07	290.07	89.5 \| 92.1 \| 90.3 \| 86.2
Z-188X	36	212	1.953	EN 10270-1	528.1	464.84	252.84	84.1 \| 90.4 \| 86.7 \| 75.1
Z-177K-02X	32	179	1.979	EN 10270-1	441.6	384.33	205.33	84.0 \| 92.6 \| 86.5 \| 72.9
Z-198X	29	253	3.105	EN 10270-1	645.8	446.81	193.81	68.7 \| 90.5 \| 68.6 \| 47.1
Z-197X	29	225	3.57	EN 10270-1	645.8	393.58	168.58	66.0 \| 92.8 \| 64.1 \| 41.0
Z-196X	29	201	4.096	EN 10270-1	645.8	347.95	146.95	61.8 \| 89.3 \| 60.3 \| 35.7
Z-227X	30	249	5.389	EN 10270-1	858.7	394.98	145.98	55.7 \| 88.7 \| 51.6 \| 26.7
Z-226X	30	222	6.183	EN 10270-1	858.7	349.26	127.26	53.9 \| 90.1 \| 48.3 \| 23.3
Z-225X	30	190	7.465	EN 10270-1	858.7	295.4	105.4	49.7 \| 85.5 \| 44.4 \| 19.3
Z-257X	30	272	8.717	EN 10270-1	1134	389.52	117.52	46.7 \| 83.4 \| 40.3 \| 16.3
Z-256X	30	242	10	EN 10270-1	1134	344.44	102.44	46.3 \| 86.9 \| 37.7 \| 14.2
Z-234X	25	242	10.372	EN 10270-1	1008	328.66	86.66	45.1 \| 84.4 \| 37.3 \| 13.5
Z-255X	30	207	12.074	EN 10270-1	1134	291.84	84.84	43.8 \| 85.3 \| 34.5 \| 11.7
Z-321X	40	226	15.11	EN 10270-1	1632	320.8	94.8	39.3 \| 78.5 \| 30.4 \| 9.1

Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-177K-04X

Country of origin: DE, German; Extension Spring Z-177K-04X
