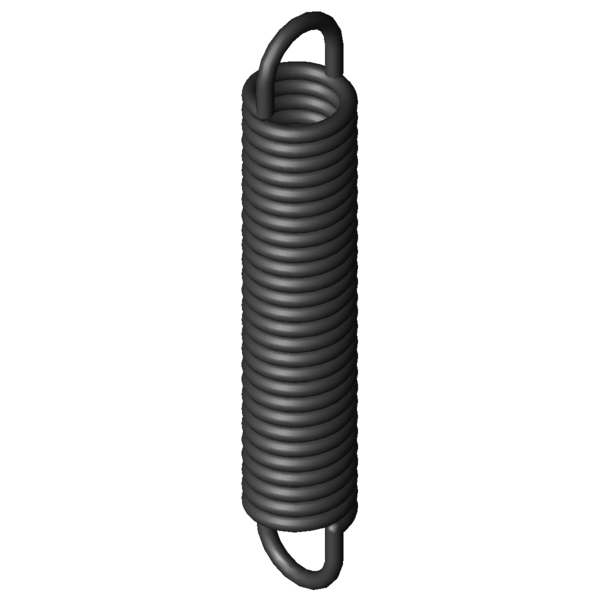

Home » Products » Extension Springs » z-321x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° Scaled prices - Extension Spring Z-321X Quantity Single price [EUR] 1 15.7400 EUR 2 12.5400 EUR 3 8.4100 EUR 7 6.6100 EUR 17 6.6100 EUR 37 6.6100 EUR 75 6.6100 EUR 125 6.6100 EUR 175 6.6100 EUR 250 6.6100 EUR 350 6.6100 EUR Extension Spring Buy Product image Extension Spring Z-321X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-321X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 50 mm minimum bush diameter L0 226 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 181.13 mm length of unstressed spring body Ln 320.8 mm maximum spring length, inner loop to inner loop sn 94.8 mm Maximum spring deflection Fn 1632 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 22.43 mm distance of inner edge of loop from the spring body R 15.11 N/mm Spring rate F0 200 N initial tension Fntol 112.5 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 28 degree (+/-) tolerance of loop position Weight 769.8445 g weight of one spring Price group ###AP - price group Technical drawing Extension Spring Datasheet Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° force-path-calculation Extension Spring Z-321X Inquiry formular Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° Inquiry formular Extension Spring Z-321X Similar extension springs to Extension Spring Z-321X Spring steel Ø 6.3 x 40 x 226 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-321X EN 10270-1 6.3 40 226 1632 320.8 94.8 15.11 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-177K-04X 32 230 1.443 EN 10270-1 441.6 511.48 281.48 39.3 | 78.5 | 30.4 | 9.1 Z-189X 36 236 1.702 EN 10270-1 528.1 526.07 290.07 42.1 | 83.1 | 32.5 | 10.6 Z-188X 36 212 1.953 EN 10270-1 528.1 464.84 252.84 43.2 | 82.4 | 34.9 | 12.1 Z-220X 40 265 1.997 EN 10270-1 658.2 566.28 301.28 44.7 | 85.6 | 35.9 | 12.7 Z-219X 40 237 2.291 EN 10270-1 658.2 499.61 262.61 47.2 | 88.9 | 38.2 | 14.6 Z-218X 40 206 2.767 EN 10270-1 658.2 423.5 217.5 49.0 | 87.5 | 42.0 | 17.6 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 50.5 | 83.5 | 46.7 | 21.4 Z-249X 40 258 3.644 EN 10270-1 873.5 477.12 219.12 53.5 | 89.0 | 48.4 | 23.2 Z-248X 40 223 4.4 EN 10270-1 873.5 404.48 181.48 57.8 | 92.7 | 52.9 | 28.0 Z-247X 40 192 5.352 EN 10270-1 873.5 341.22 149.22 60.2 | 88.1 | 58.5 | 34.0 Z-286X 40 277 5.571 EN 10270-1 1134 459.05 182.05 62.2 | 89.6 | 60.8 | 36.2 Z-285X 40 238 6.726 EN 10270-1 1134 388.78 150.78 68.0 | 94.1 | 66.2 | 43.7 Z-284X 40 205 8.181 EN 10270-1 1134 328.97 123.97 72.9 | 92.7 | 73.0 | 53.1 Z-322X 40 264 12.424 EN 10270-1 1632 379.3 115.3 89.5 | 95.2 | 91.1 | 82.2 Z-321X 40 226 15.11 EN 10270-1 1632 320.8 94.8 100.0 | 100.0 | 100.0 | 100.0 Z-320JX 40 180 20.2 EN 10270-1 1632 250.9 70.9 85.1 | 93.2 | 87.4 | 74.8 Number of similar metal springs: 15 Customs tariff number: 73202085; Extension Spring Z-321X Country of origin: DE, German; Extension Spring Z-321X Product image - Extension Springs Z-321X QR-Code: Extension Spring Z-321X
