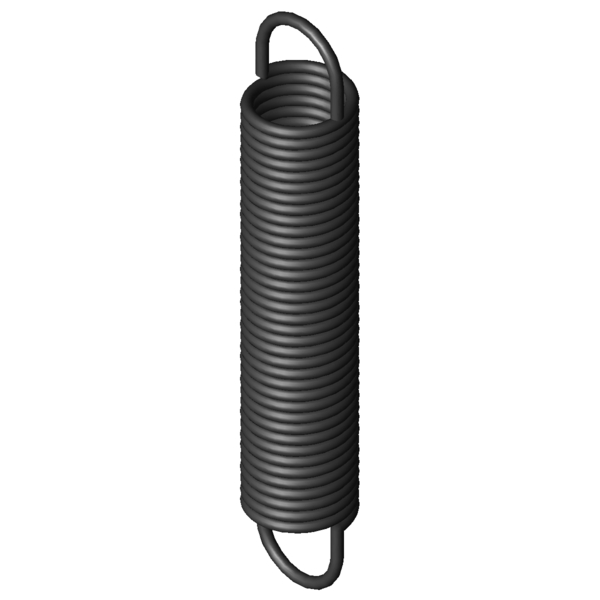

Home » Products » Extension Springs » z-177k-02i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° Scaled prices - Extension Spring Z-177K-02I Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 3.7100 EUR 37 3.7100 EUR 75 3.7100 EUR 125 3.7100 EUR 175 3.7100 EUR 250 3.7100 EUR 350 3.7100 EUR Extension Spring Buy Product image Extension Spring Z-177K-02I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177K-02I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37.8 mm minimum bush diameter L0 179 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 138.6 mm length of unstressed spring body Ln 382.97 mm maximum spring length, inner loop to inner loop sn 203.97 mm Maximum spring deflection Fn 441.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 20.2 mm distance of inner edge of loop from the spring body R 1.992 N/mm Spring rate F0 35.3 N initial tension Fntol 22.3 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 35 degree (+/-) tolerance of loop position Weight 281.85 g weight of one spring Price group ###AD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° force-path-calculation Extension Spring Z-177K-02I Inquiry formular Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° Inquiry formular Extension Spring Z-177K-02I Similar extension springs to Extension Spring Z-177K-02I Spring steel Ø 3.6 x 32 x 179 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177K-02I EN 10270-1 3.6 32 179 441.6 382.97 203.97 1.992 100.0 | 100.0 | 100.0 | 100.0 RZ-177K-02I 1.4310 3.6 32 179 368.5 377.93 198.93 1.711 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-162U-03I 40 179 0.402 EN 10270-1 214.2 682.96 503.96 50.6 | 87.8 | 44.5 | 19.6 Z-153CI 27.5 193 0.414 EN 10270-1 184.9 606.45 413.45 49.7 | 82.7 | 45.6 | 20.7 Z-153BI 27.5 173 0.476 EN 10270-1 184.9 532.67 359.67 52.3 | 84.0 | 49.3 | 23.7 Z-162KI 30 210 0.526 EN 10270-1 233.4 622.41 412.41 54.3 | 85.6 | 51.2 | 26.1 Z-162U-24I 32 206 0.632 EN 10270-1 265.6 593.57 387.57 59.4 | 90.1 | 56.4 | 31.7 Z-168AI 35.2 199 0.701 EN 10270-1 290.5 586.71 387.71 61.2 | 89.9 | 59.2 | 34.6 Z-162U-23I 32 185 0.728 EN 10270-1 265.6 521.86 336.86 63.4 | 93.4 | 60.3 | 36.4 Z-162JI 30 154 0.788 EN 10270-1 233.4 427.78 273.78 63.0 | 85.9 | 63.7 | 39.4 Z-168I 35.2 177 0.825 EN 10270-1 290.5 506.35 329.35 65.8 | 92.9 | 63.9 | 40.7 Z-162U-22I 32 167 0.835 EN 10270-1 265.6 460.39 293.39 66.3 | 92.2 | 64.8 | 41.8 Z-162U-21I 32 146 1.01 EN 10270-1 265.6 388.68 242.68 70.3 | 88.3 | 72.1 | 50.6 Z-171AI 28.2 188 1.47 EN 10270-1 358.7 416.04 228.04 82.9 | 90.7 | 85.3 | 72.7 Z-177K-03I 32 205 1.679 EN 10270-1 441.6 447.04 242.04 90.7 | 95.8 | 92.1 | 84.3 Z-171I 28.2 166 1.731 EN 10270-1 358.7 359.71 193.71 87.8 | 89.9 | 88.1 | 85.5 Z-177K-02I 32 179 1.992 EN 10270-1 441.6 382.97 203.97 100.0 | 100.0 | 100.0 | 100.0 Z-177K-01I 32 154 2.449 EN 10270-1 441.6 319.89 165.89 89.1 | 95.3 | 90.7 | 81.3 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 81.0 | 89.4 | 83.6 | 70.0 Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 73.9 | 86.5 | 77.0 | 58.3 Z-196I 29 201 4.121 EN 10270-1 645.8 347.05 146.05 69.6 | 89.9 | 70.0 | 49.0 Z-177OI 25 176 4.42 EN 10270-1 555.1 293.28 117.28 68.8 | 92.1 | 68.5 | 45.7 Z-225I 30 189 7.521 EN 10270-1 858.7 293.62 104.62 55.7 | 89.5 | 51.4 | 26.4 Z-224I 30 162 9.161 EN 10270-1 858.7 247.88 85.88 52.2 | 88.1 | 46.8 | 21.7 Z-255I 30 205 12.164 EN 10270-1 1134 289.21 84.21 46.8 | 84.4 | 40.1 | 16.1 Z-232I 25 182 14.475 EN 10270-1 1008 244.1 62.1 45.3 | 85.5 | 37.1 | 13.3 Z-254I 30 175 14.818 EN 10270-1 1134 244.13 69.13 45.8 | 87.8 | 36.4 | 13.2 Z-320JI 40 180 20.45 EN 10270-1 1632 250 70 39.6 | 78.9 | 30.7 | 9.3 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring Z-177K-02I Country of origin: DE, German; Extension Spring Z-177K-02I Product image - Extension Springs Z-177K-02I QR-Code: Extension Spring Z-177K-02I
