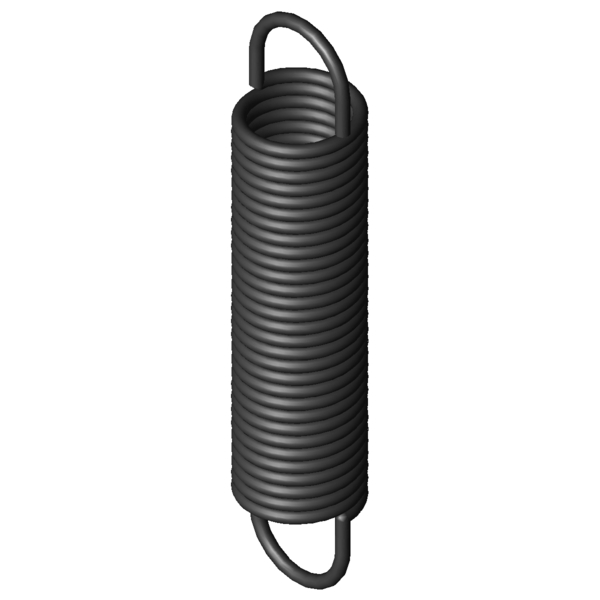

Home » Products » Extension Springs » z-177k-01i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° Scaled prices - Extension Spring Z-177K-01I Quantity Single price [EUR] 1 12.9200 EUR 2 10.2900 EUR 3 5.8600 EUR 7 3.7100 EUR 17 3.7100 EUR 37 3.7100 EUR 75 3.7100 EUR 125 3.7100 EUR 175 3.7100 EUR 250 3.7100 EUR 350 3.7100 EUR Extension Spring Buy Product image Extension Spring Z-177K-01I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177K-01I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37.8 mm minimum bush diameter L0 154 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 113.4 mm length of unstressed spring body Ln 319.89 mm maximum spring length, inner loop to inner loop sn 165.89 mm Maximum spring deflection Fn 441.6 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 20.3 mm distance of inner edge of loop from the spring body R 2.449 N/mm Spring rate F0 35.3 N initial tension Fntol 22.4 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.4 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 231.59 g weight of one spring Price group ###AD - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° force-path-calculation Extension Spring Z-177K-01I Inquiry formular Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° Inquiry formular Extension Spring Z-177K-01I Similar extension springs to Extension Spring Z-177K-01I Spring steel Ø 3.6 x 32 x 154 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177K-01I EN 10270-1 3.6 32 154 441.6 319.89 165.89 2.449 100.0 | 100.0 | 100.0 | 100.0 RZ-177K-01I 1.4310 3.6 32 154 368.5 315.8 161.8 2.104 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-153BI 27.5 173 0.476 EN 10270-1 184.9 532.67 359.67 48.3 | 81.5 | 44.0 | 19.3 Z-162U-02I 40 158 0.486 EN 10270-1 214.2 574.86 416.86 50.1 | 86.9 | 44.2 | 19.3 Z-153AI 27.5 156 0.548 EN 10270-1 184.9 468.61 312.61 51.5 | 84.7 | 47.5 | 22.2 Z-153I 27.5 138 0.645 EN 10270-1 184.9 403.55 265.55 53.3 | 81.7 | 52.2 | 26.2 Z-162U-23I 32 185 0.728 EN 10270-1 265.6 521.86 336.86 57.7 | 88.9 | 54.7 | 29.6 Z-162JI 30 154 0.788 EN 10270-1 233.4 427.78 273.78 59.8 | 90.5 | 56.7 | 32.0 Z-168I 35.2 177 0.825 EN 10270-1 290.5 506.35 329.35 60.0 | 88.9 | 58.1 | 33.1 Z-162U-22I 32 167 0.835 EN 10270-1 265.6 460.39 293.39 61.4 | 91.8 | 58.3 | 34.0 Z-162U-21I 32 146 1.01 EN 10270-1 265.6 388.68 242.68 66.0 | 92.7 | 64.3 | 41.1 Z-162U-20I 32 128 1.23 EN 10270-1 265.6 327.22 199.22 70.2 | 88.8 | 71.7 | 50.1 Z-167I 35.2 129 1.331 EN 10270-1 290.5 333.28 204.28 71.6 | 87.9 | 73.5 | 53.4 Z-171I 28.2 166 1.731 EN 10270-1 358.7 359.71 193.71 81.0 | 89.9 | 83.4 | 69.6 Z-177K-02I 32 179 1.992 EN 10270-1 441.6 382.97 203.97 89.1 | 95.3 | 90.7 | 81.3 Z-162U-32I 24 154 2.2 EN 10270-1 348.5 299.94 145.94 86.4 | 86.1 | 83.4 | 89.7 Z-177K-01I 32 154 2.449 EN 10270-1 441.6 319.89 165.89 100.0 | 100.0 | 100.0 | 100.0 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 89.4 | 91.7 | 90.4 | 86.0 Z-177K-11I 32 118 3.64 EN 10270-1 441.6 229.5 111.5 81.0 | 92.2 | 83.6 | 67.2 Z-186AI 36 132 3.88 EN 10270-1 528.1 259.2 127.2 77.5 | 88.2 | 80.1 | 64.1 Z-195I 29 149 6.07 EN 10270-1 645.8 248.17 99.17 65.8 | 92.5 | 64.1 | 40.9 Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 58.5 | 83.6 | 58.5 | 33.6 Z-224I 30 162 9.161 EN 10270-1 858.7 247.88 85.88 55.9 | 89.6 | 51.6 | 26.6 Z-223JI 30 130 12.29 EN 10270-1 858.7 194 64 50.3 | 86.1 | 45.0 | 19.8 Z-254I 30 175 14.818 EN 10270-1 1134 244.13 69.13 47.0 | 84.6 | 40.3 | 16.2 Z-231I 25 155 17.633 EN 10270-1 1008 205.98 50.98 45.5 | 85.8 | 37.3 | 13.5 Z-253JI 30 140 19.87 EN 10270-1 1134 191.5 51.5 44.2 | 85.6 | 35.0 | 12.1 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-177K-01I Country of origin: DE, German; Extension Spring Z-177K-01I Product image - Extension Springs Z-177K-01I QR-Code: Extension Spring Z-177K-01I
