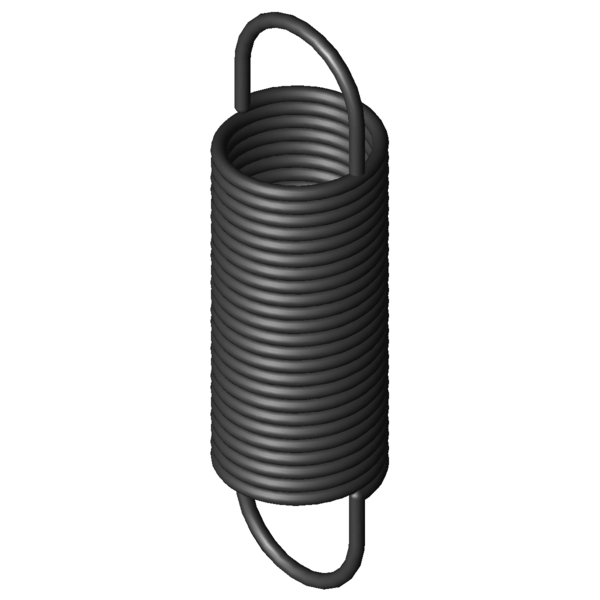

Home » Products » Extension Springs » z-167i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° Scaled prices - Extension Spring Z-167I Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-167I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-167I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 129 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.6 mm length of unstressed spring body Ln 333.28 mm maximum spring length, inner loop to inner loop sn 204.28 mm Maximum spring deflection Fn 290.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.7 mm distance of inner edge of loop from the spring body R 1.331 N/mm Spring rate F0 18.77 N initial tension Fntol 15.39 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 32 degree (+/-) tolerance of loop position Weight 167.82 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° force-path-calculation Extension Spring Z-167I Inquiry formular Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° Inquiry formular Extension Spring Z-167I Similar extension springs to Extension Spring Z-167I Spring steel Ø 3.2 x 35.2 x 129 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-167I EN 10270-1 3.2 35.2 129 290.5 333.28 204.28 1.331 100.0 | 100.0 | 100.0 | 100.0 RZ-167I 1.4310 3.2 35.2 129 240.9 326.73 197.73 1.143 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-133I 27 118 0.264 EN 10270-1 101.2 475.23 357.23 47.6 | 76.9 | 46.0 | 19.9 Z-147E-23I 30 133 0.281 EN 10270-1 118 534.5 401.5 50.0 | 83.7 | 45.7 | 20.7 Z-150I 34.5 149 0.307 EN 10270-1 148.5 600.09 451.09 53.0 | 87.6 | 48.2 | 23.1 Z-149I 34.5 112 0.496 EN 10270-1 148.5 391.79 279.79 62.3 | 87.7 | 62.1 | 37.3 Z-162E-12I 38 126 0.58 EN 10270-1 180 419.2 293.2 67.2 | 92.6 | 65.8 | 43.2 Z-162U-01I 40 140 0.592 EN 10270-1 214.2 482.2 342.2 67.3 | 91.3 | 66.7 | 44.0 Z-153I 27.5 138 0.645 EN 10270-1 184.9 403.55 265.55 67.5 | 83.2 | 70.3 | 49.0 Z-162E-11I 38 100.5 0.93 EN 10270-1 180 286 185.5 76.9 | 86.0 | 76.4 | 68.2 Z-162U-21I 32 146 1.01 EN 10270-1 265.6 388.68 242.68 85.3 | 91.0 | 87.8 | 77.0 Z-162U-20I 32 128 1.23 EN 10270-1 265.6 327.22 199.22 94.3 | 94.6 | 94.5 | 93.8 Z-162HI 30 112 1.27 EN 10270-1 233.4 281.82 169.82 88.3 | 86.5 | 81.7 | 96.6 Z-167I 35.2 129 1.331 EN 10270-1 290.5 333.28 204.28 100.0 | 100.0 | 100.0 | 100.0 Z-177HI 40 146 1.448 EN 10270-1 357.1 379.08 233.08 88.6 | 88.4 | 84.5 | 92.8 Z-162U-19I 32 108 1.65 EN 10270-1 265.6 256.5 148.5 83.7 | 89.5 | 82.1 | 79.5 Z-177GI 40 114 2.288 EN 10270-1 357.1 261.46 147.46 74.6 | 88.4 | 76.8 | 58.7 Z-177K-01I 32 154 2.449 EN 10270-1 441.6 319.89 165.89 71.6 | 87.9 | 73.5 | 53.4 Z-166AI 35.2 90.8 2.608 EN 10270-1 290.5 195.02 104.22 72.2 | 90.1 | 75.5 | 51.0 Z-170I 28.2 118 2.79 EN 10270-1 358.7 238.15 120.15 69.4 | 90.5 | 69.9 | 47.6 Z-166I 35.2 87.6 2.835 EN 10270-1 290.5 183.49 95.89 69.9 | 89.3 | 73.5 | 46.9 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 67.1 | 86.1 | 69.3 | 45.9 Z-177K-11I 32 118 3.64 EN 10270-1 441.6 229.5 111.5 62.2 | 90.4 | 60.2 | 35.9 Z-186AI 36 132 3.88 EN 10270-1 528.1 259.2 127.2 61.6 | 91.8 | 58.6 | 34.3 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 55.1 | 82.5 | 54.4 | 28.5 Z-186I 36 104 5.896 EN 10270-1 528.1 187.76 83.76 52.2 | 86.1 | 48.0 | 22.6 Z-216HI 40 110 7.47 EN 10270-1 658.2 190.6 80.6 46.9 | 81.5 | 41.8 | 17.4 Z-194AI 29 121 8.14 EN 10270-1 645.8 194.9 73.9 47.4 | 85.4 | 40.6 | 16.3 Z-246HI 40 116 11.88 EN 10270-1 873.5 183.2 67.2 41.6 | 80.6 | 33.1 | 10.9 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-167I Country of origin: DE, German; Extension Spring Z-167I Product image - Extension Springs Z-167I QR-Code: Extension Spring Z-167I
