Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

Scaled prices - Extension Spring Z-166AI

Quantity Single price [EUR]
1 6.8600 EUR
2 4.3200 EUR
3 3.3700 EUR
7 2.8700 EUR
17 2.8700 EUR
37 2.8700 EUR
75 2.8700 EUR
125 2.8700 EUR
175 2.8700 EUR
250 2.8700 EUR
350 2.8700 EUR
450 2.8700 EUR

Extension Spring Buy

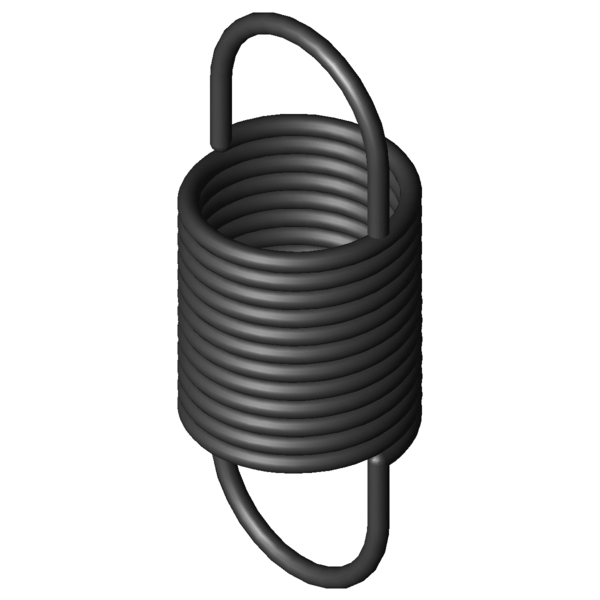

Product image Extension Spring Z-166AI
Product image Extension Spring Z-166AI
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-166AI

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 3.2 mm Wire diameter
D mm mean coil diameter
De 35.2 mm outer coil diameter
Dh 40.6 mm minimum bush diameter
L0 90.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 43.2 mm length of unstressed spring body
Ln 195.02 mm maximum spring length, inner loop to inner loop
sn 104.22 mm Maximum spring deflection
Fn 290.5 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 23.8 mm distance of inner edge of loop from the spring body
R 2.608 N/mm Spring rate
F0 18.77 N initial tension
Fntol 17.88 N (+/-) tolerance of maximum spring force
L0tol 1.8 mm (+/-) tolerance of unstressed length
Detol 0.6 mm (+/-) tolerance of outer coil diameter
Oesttol 23 degree (+/-) tolerance of loop position
Weight 91.1 g weight of one spring
Price group ###ZM - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

force-path-calculation Extension Spring Z-166AI

Inquiry formular Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

Inquiry formular Extension Spring Z-166AI

Similar extension springs to Extension Spring Z-166AI Spring steel Ø 3.2 x 35.2 x 90.8 mm / 180°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-166AI EN 10270-1 3.2 35.2 90.8 290.5 195.02 104.22 2.608 100.0 | 100.0 | 100.0 | 100.0
RZ-166AI 1.4310 3.2 35.2 90.8 240.9 191.68 100.88 2.24 91.8 | 100.0 | 89.9 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-149I 34.5 112 0.496 EN 10270-1 148.5 391.79 279.79 49.7 | 85.7 | 44.2 | 19.0
Z-132I 27 78.8 0.535 EN 10270-1 101.2 255.15 176.35 47.6 | 75.3 | 47.0 | 20.6
Z-147E-21I 30 82.3 0.717 EN 10270-1 118 239.8 157.5 53.9 | 81.5 | 53.4 | 26.9
Z-162E-11I 38 100.5 0.93 EN 10270-1 180 286 185.5 61.3 | 90.2 | 59.1 | 34.8
Z-147HI 24 88.6 0.94 EN 10270-1 148 235.65 147.05 58.4 | 78.2 | 60.9 | 36.1
Z-152I 27.5 101 1.04 EN 10270-1 184.9 265.71 164.71 61.9 | 82.1 | 63.5 | 40.3
Z-148I 34.5 79.7 1.056 EN 10270-1 148.5 211.03 131.33 64.6 | 88.0 | 65.2 | 40.6
Z-162U-10I 40 101 1.12 EN 10270-1 214.2 281.4 180.4 66.3 | 90.6 | 65.8 | 42.6
Z-162HI 30 112 1.27 EN 10270-1 233.4 281.82 169.82 68.3 | 84.6 | 70.9 | 49.3
Z-163I 43.2 100 1.451 EN 10270-1 238.4 256.13 156.13 73.3 | 90.8 | 74.4 | 54.8
Z-162E-10I 38 83.5 1.51 EN 10270-1 180 197.2 113.7 74.8 | 90.7 | 76.8 | 56.8
Z-162U-19I 32 108 1.65 EN 10270-1 265.6 256.5 148.5 76.2 | 91.1 | 77.5 | 59.9
Z-162GI 30 86.6 2.008 EN 10270-1 233.4 194.03 107.43 85.3 | 89.4 | 88.7 | 77.9
Z-155I 22.5 93 2.03 EN 10270-1 223.8 194.52 101.52 82.1 | 79.9 | 87.2 | 79.1
Z-166AI 35.2 90.8 2.608 EN 10270-1 290.5 195.02 104.22 100.0 | 100.0 | 100.0 | 100.0
Z-162U-18I 32 83.5 2.7 EN 10270-1 265.6 174 90.5 92.1 | 92.2 | 89.1 | 95.0
Z-166I 35.2 87.6 2.835 EN 10270-1 290.5 183.49 95.89 95.6 | 98.8 | 96.0 | 92.0
Z-162FI 30 69.8 3.275 EN 10270-1 233.4 135.65 65.85 77.9 | 83.2 | 71.8 | 78.6
Z-177FI 40 92.1 3.735 EN 10270-1 357.1 182.48 90.38 82.1 | 91.8 | 84.0 | 70.5
Z-162U-29I 24 94 4.35 EN 10270-1 348.5 167.9 73.9 74.1 | 86.2 | 77.1 | 59.1
Z-186I 36 104 5.896 EN 10270-1 528.1 187.76 83.76 66.8 | 88.4 | 67.7 | 44.2
Z-169I 28.2 76.4 5.945 EN 10270-1 358.7 132.8 56.4 66.5 | 88.1 | 67.6 | 43.8
Z-177K-10I 32 89 5.98 EN 10270-1 441.6 157 68 67.0 | 92.6 | 65.5 | 42.9
Z-216HI 40 110 7.47 EN 10270-1 658.2 190.6 80.6 58.5 | 80.6 | 60.7 | 34.1
Z-177MI 25 89.7 11.264 EN 10270-1 555.1 135.72 46.02 52.5 | 86.2 | 48.2 | 23.1
Z-194I 29 93.6 12.364 EN 10270-1 645.8 142.28 48.68 52.0 | 85.5 | 48.0 | 22.5
Z-223HI 30 94 20.15 EN 10270-1 858.7 133 39 44.1 | 81.6 | 37.1 | 13.6
Z-202I 24 85.6 24.148 EN 10270-1 765.7 114.47 28.87 41.4 | 80.8 | 32.8 | 10.5
Z-253HI 30 100 32.6 EN 10270-1 1134 131.4 31.4 39.4 | 80.9 | 28.9 | 8.3
Z-230HI 25 87 38.79 EN 10270-1 1008 110.2 23.2 37.1 | 79.3 | 25.5 | 6.4
Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-166AI

Country of origin: DE, German; Extension Spring Z-166AI
