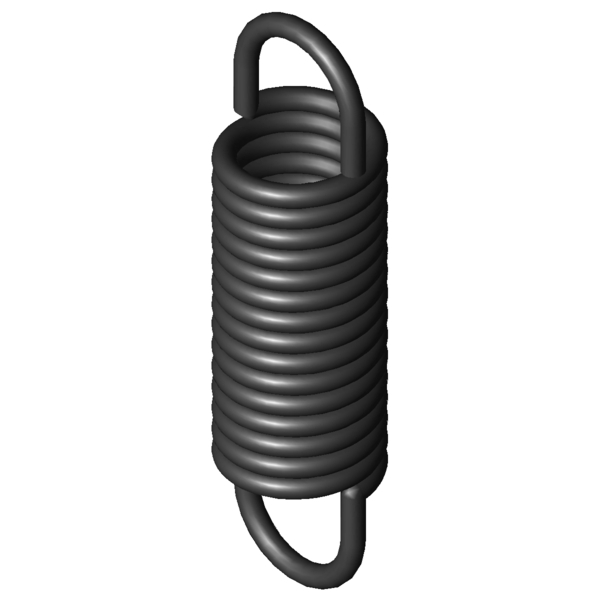

Home » Products » Extension Springs » z-177mi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° Scaled prices - Extension Spring Z-177MI Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 3.2800 EUR 37 3.2800 EUR 75 3.2800 EUR 125 3.2800 EUR 175 3.2800 EUR 250 3.2800 EUR 350 3.2800 EUR Extension Spring Buy Product image Extension Spring Z-177MI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177MI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 25 mm outer coil diameter Dh 30.8 mm minimum bush diameter L0 89.7 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 59.4 mm length of unstressed spring body Ln 135.72 mm maximum spring length, inner loop to inner loop sn 46.02 mm Maximum spring deflection Fn 555.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 15.15 mm distance of inner edge of loop from the spring body R 11.264 N/mm Spring rate F0 36.8 N initial tension Fntol 41.32 N (+/-) tolerance of maximum spring force L0tol 1.5 mm (+/-) tolerance of unstressed length Detol 0.35 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 93.3397 g weight of one spring Price group ###AB - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° force-path-calculation Extension Spring Z-177MI Inquiry formular Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° Inquiry formular Extension Spring Z-177MI Similar extension springs to Extension Spring Z-177MI Spring steel Ø 3.6 x 25 x 89.7 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177MI EN 10270-1 3.6 25 89.7 555.1 135.72 46.02 11.264 100.0 | 100.0 | 100.0 | 100.0 RZ-177MI 1.4310 3.6 25 89.7 463.3 134.56 44.86 9.675 92.0 | 100.0 | 90.5 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-147GI 24 68.8 1.486 EN 10270-1 148 161.83 93.03 43.1 | 77.9 | 38.1 | 13.2 Z-162GI 30 86.6 2.008 EN 10270-1 233.4 194.03 107.43 48.8 | 85.9 | 42.4 | 18.0 Z-155I 22.5 93 2.03 EN 10270-1 223.8 194.52 101.52 48.8 | 85.3 | 42.8 | 18.3 Z-162K-21I 25 104 2.34 EN 10270-1 277.6 213.6 109.6 51.7 | 88.0 | 46.0 | 21.0 Z-156HI 20 91 2.912 EN 10270-1 249.9 169.88 78.88 53.5 | 82.7 | 51.7 | 26.3 Z-156GI 20 86 3.16 EN 10270-1 249.9 158.71 72.71 54.8 | 81.8 | 54.2 | 28.5 Z-158I 18.5 86.6 3.966 EN 10270-1 268.6 148.65 62.05 59.1 | 80.0 | 61.3 | 35.9 Z-162U-29I 24 94 4.35 EN 10270-1 348.5 167.9 73.9 64.4 | 91.6 | 62.5 | 39.1 Z-162NI 20 95.8 5.023 EN 10270-1 341.5 158.32 62.52 65.6 | 83.8 | 67.6 | 45.3 Z-162K-20I 25 65 5.45 EN 10270-1 277.6 111.96 46.96 68.8 | 83.4 | 74.0 | 49.0 Z-173I 23.2 110 5.485 EN 10270-1 430.1 183.35 73.35 68.8 | 87.7 | 70.1 | 48.6 Z-169I 28.2 76.4 5.945 EN 10270-1 358.7 132.8 56.4 71.1 | 87.6 | 73.1 | 52.7 Z-177K-10I 32 89 5.98 EN 10270-1 441.6 157 68 73.3 | 92.4 | 73.6 | 53.8 Z-162U-28I 24 69 7.13 EN 10270-1 348.5 114.03 45.03 76.6 | 85.4 | 80.3 | 64.2 Z-177MI 25 89.7 11.264 EN 10270-1 555.1 135.72 46.02 100.0 | 100.0 | 100.0 | 100.0 Z-194I 29 93.6 12.364 EN 10270-1 645.8 142.28 48.68 90.6 | 90.7 | 90.2 | 90.9 Z-177LI 25 68.1 18.379 EN 10270-1 555.1 96.31 28.21 78.0 | 92.0 | 80.6 | 61.3 Z-223HI 30 94 20.15 EN 10270-1 858.7 133 39 71.9 | 86.3 | 74.7 | 54.8 Z-202I 24 85.6 24.148 EN 10270-1 765.7 114.47 28.87 69.0 | 93.8 | 67.6 | 45.5 Z-230HI 25 87 38.79 EN 10270-1 1008 110.2 23.2 57.6 | 92.3 | 52.7 | 27.8 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-177MI Country of origin: DE, German; Extension Spring Z-177MI Product image - Extension Springs Z-177MI QR-Code: Extension Spring Z-177MI
