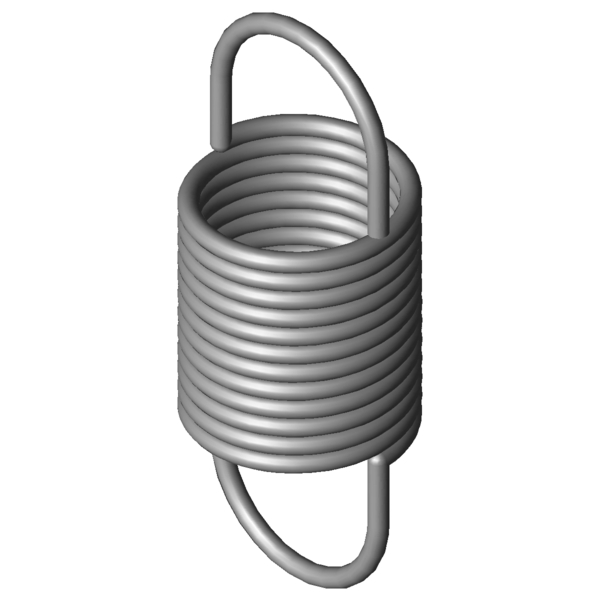

Home » Products » Extension Springs » rz-166ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° Scaled prices - Extension Spring RZ-166AI Quantity Single price [EUR] 1 7.3900 EUR 2 4.6600 EUR 3 3.7300 EUR 7 3.1800 EUR 17 3.1800 EUR 37 3.1800 EUR 75 3.1800 EUR 125 3.1800 EUR 175 3.1800 EUR 250 3.1800 EUR 350 3.1800 EUR 450 3.1800 EUR Extension Spring Buy Product image Extension Spring RZ-166AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-166AI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 90.8 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 43.2 mm length of unstressed spring body Ln 191.68 mm maximum spring length, inner loop to inner loop sn 100.88 mm Maximum spring deflection Fn 240.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.8 mm distance of inner edge of loop from the spring body R 2.24 N/mm Spring rate F0 15 N initial tension Fntol 17.13 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 23 degree (+/-) tolerance of loop position Weight 91.101 g weight of one spring Price group ###ZP - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° force-path-calculation Extension Spring RZ-166AI Inquiry formular Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° Inquiry formular Extension Spring RZ-166AI Similar extension springs to Extension Spring RZ-166AI Stainless steel Ø 3.2 x 35.2 x 90.8 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-166AI 1.4310 3.2 35.2 90.8 240.9 191.68 100.88 2.24 100.0 | 100.0 | 100.0 | 100.0 Z-166AI EN 10270-1 3.2 35.2 90.8 290.5 195.02 104.22 2.608 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-162E-11I 38 100.5 0.796 1.4310 158 290.5 190 61.4 | 90.2 | 59.3 | 34.8 RZ-147HI 24 88.6 0.808 1.4310 123.7 232.13 143.53 58.4 | 78.2 | 60.8 | 36.1 RZ-152I 27.5 101 0.893 1.4310 153.7 260.92 159.92 61.9 | 82.1 | 63.4 | 40.2 RZ-148I 34.5 79.7 0.907 1.4310 123.5 207.2 127.5 64.6 | 88.0 | 65.2 | 40.6 RZ-162U-10I 40 101 0.965 1.4310 176.9 274.8 173.8 66.3 | 90.6 | 65.7 | 42.6 RZ-147E-20I 30 67 1.004 1.4310 104.3 167.4 100.4 63.6 | 75.9 | 71.4 | 43.5 RZ-162HI 30 112 1.091 1.4310 193.3 276.44 164.44 68.2 | 84.6 | 70.8 | 49.2 RZ-167I 35.2 129 1.143 1.4310 240.9 326.73 197.73 53.0 | 87.6 | 48.2 | 23.1 RZ-163I 43.2 100 1.247 1.4310 197.7 251.02 151.02 73.3 | 90.8 | 74.4 | 54.8 RZ-162E-10I 38 83.5 1.298 1.4310 158 200 116.5 74.5 | 90.7 | 76.1 | 56.8 RZ-162U-19I 32 108 1.418 1.4310 219.4 251.2 143.2 78.2 | 89.6 | 80.8 | 64.2 RZ-162GI 30 86.6 1.724 1.4310 193.3 190.63 104.03 85.3 | 89.4 | 88.6 | 77.8 RZ-155I 22.5 93 1.744 1.4310 186.1 191.71 98.71 82.1 | 79.9 | 87.6 | 79.0 RZ-177GI 40 114 1.966 1.4310 298 257.67 143.67 82.6 | 85.5 | 75.5 | 86.9 RZ-166AI 35.2 90.8 2.24 1.4310 240.9 191.68 100.88 100.0 | 100.0 | 100.0 | 100.0 RZ-162U-18I 32 83.5 2.325 1.4310 219.4 170.8 87.3 92.0 | 92.2 | 88.8 | 95.0 RZ-166I 35.2 87.6 2.435 1.4310 240.9 180.41 92.81 95.6 | 98.8 | 96.0 | 92.0 RZ-162FI 30 69.8 2.813 1.4310 193.3 133.56 63.76 77.9 | 83.2 | 71.7 | 78.8 RZ-177K-11I 32 118 3.13 1.4310 368.5 226.7 108.7 78.4 | 85.6 | 79.1 | 70.4 RZ-177FI 40 92.1 3.208 1.4310 298 180.16 88.06 82.2 | 91.8 | 84.1 | 70.6 RZ-162U-29I 24 94 3.733 1.4310 287.9 165.2 71.2 74.1 | 86.2 | 77.1 | 59.1 RZ-186I 36 104 5.064 1.4310 443.6 186.19 82.19 66.8 | 88.4 | 67.9 | 44.2 RZ-169I 28.2 76.4 5.106 1.4310 297.5 130.99 54.59 66.5 | 88.1 | 67.5 | 43.8 RZ-177K-10I 32 89 5.133 1.4310 368.5 155.3 66.3 67.0 | 92.6 | 65.5 | 43.0 RZ-177MI 25 89.7 9.675 1.4310 463.3 134.56 44.86 52.5 | 86.2 | 48.2 | 23.1 RZ-194I 29 93.6 10.619 1.4310 542.5 141.38 47.78 51.1 | 86.5 | 45.9 | 21.0 RZ-202I 24 85.6 20.741 1.4310 643.3 113.97 28.37 41.4 | 80.8 | 32.8 | 10.5 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring RZ-166AI Country of origin: DE, German; Extension Spring RZ-166AI Product image - Extension Springs RZ-166AI QR-Code: Extension Spring RZ-166AI
