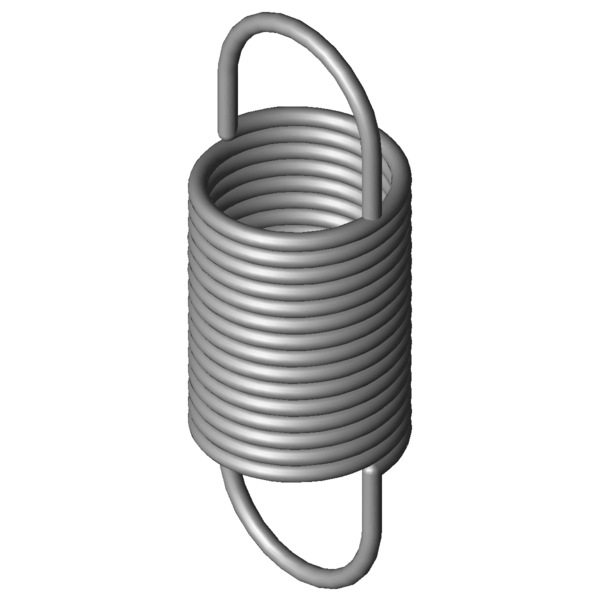

Home » Products » Extension Springs » rz-177gi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° Scaled prices - Extension Spring RZ-177GI Quantity Single price [EUR] 1 13.3600 EUR 2 10.6400 EUR 3 6.1500 EUR 7 4.0000 EUR 17 4.0000 EUR 37 4.0000 EUR 75 4.0000 EUR 125 4.0000 EUR 175 4.0000 EUR 250 4.0000 EUR 350 4.0000 EUR Extension Spring Buy Product image Extension Spring RZ-177GI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-177GI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 114 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 59.4 mm length of unstressed spring body Ln 257.67 mm maximum spring length, inner loop to inner loop sn 143.67 mm Maximum spring deflection Fn 298 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 27.3 mm distance of inner edge of loop from the spring body R 1.966 N/mm Spring rate F0 15.6 N initial tension Fntol 19.65 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 26 degree (+/-) tolerance of loop position Weight 158.7646 g weight of one spring Price group ###AF - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° force-path-calculation Extension Spring RZ-177GI Inquiry formular Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° Inquiry formular Extension Spring RZ-177GI Similar extension springs to Extension Spring RZ-177GI Stainless steel Ø 3.6 x 40 x 114 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-177GI 1.4310 3.6 40 114 298 257.67 143.67 1.966 100.0 | 100.0 | 100.0 | 100.0 Z-177GI EN 10270-1 3.6 40 114 357.1 261.46 147.46 2.288 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-149I 34.5 112 0.426 1.4310 123.5 383.64 271.64 51.2 | 84.6 | 47.2 | 21.9 RZ-162E-12I 38 126 0.503 1.4310 158 426.4 300.4 54.5 | 87.8 | 50.4 | 25.4 RZ-162U-01I 40 140 0.509 1.4310 176.9 469.72 329.72 55.2 | 88.3 | 51.5 | 25.9 RZ-164I 43.2 142 0.585 1.4310 197.7 463.73 321.73 57.5 | 87.3 | 55.5 | 29.6 RZ-162E-11I 38 100.5 0.796 1.4310 158 290.5 190 63.8 | 87.0 | 64.3 | 40.1 RZ-162U-10I 40 101 0.965 1.4310 176.9 274.8 173.8 70.2 | 90.6 | 71.0 | 49.1 RZ-162U-20I 32 128 1.057 1.4310 219.4 320.11 192.11 71.1 | 84.1 | 74.2 | 55.1 RZ-162HI 30 112 1.091 1.4310 193.3 276.44 164.44 72.2 | 83.7 | 76.1 | 56.7 RZ-167I 35.2 129 1.143 1.4310 240.9 326.73 197.73 74.6 | 88.4 | 76.7 | 58.7 RZ-177HI 40 146 1.244 1.4310 298 373.09 227.09 79.2 | 92.7 | 81.6 | 63.3 RZ-163I 43.2 100 1.247 1.4310 197.7 251.02 151.02 77.9 | 89.7 | 80.7 | 63.1 RZ-162E-10I 38 83.5 1.298 1.4310 158 200 116.5 71.5 | 82.0 | 67.1 | 65.4 RZ-162U-19I 32 108 1.418 1.4310 219.4 251.2 143.2 82.2 | 86.0 | 86.6 | 73.9 RZ-178AI 44 145 1.707 1.4310 366.5 348.2 203.2 83.2 | 86.5 | 76.0 | 87.0 RZ-177GI 40 114 1.966 1.4310 298 257.67 143.67 100.0 | 100.0 | 100.0 | 100.0 RZ-166AI 35.2 90.8 2.24 1.4310 240.9 191.68 100.88 82.6 | 85.5 | 75.5 | 86.9 RZ-170I 28.2 118 2.397 1.4310 297.5 234.29 116.29 85.6 | 85.3 | 90.4 | 81.1 RZ-166I 35.2 87.6 2.435 1.4310 240.9 180.41 92.81 79.1 | 84.6 | 72.7 | 79.9 RZ-178I 44 117 2.593 1.4310 366.5 250.83 133.83 85.3 | 92.8 | 87.2 | 75.7 RZ-162U-30I 24 115 2.783 1.4310 287.9 210.56 95.56 77.1 | 80.8 | 81.6 | 68.8 RZ-177K-11I 32 118 3.13 1.4310 368.5 226.7 108.7 77.2 | 92.2 | 78.3 | 61.2 RZ-177FI 40 92.1 3.208 1.4310 298 180.16 88.06 78.5 | 93.6 | 80.6 | 61.3 RZ-186AI 36 132 3.335 1.4310 443.6 256.8 124.8 74.7 | 88.8 | 77.0 | 58.4 RZ-186I 36 104 5.064 1.4310 443.6 186.19 82.19 63.7 | 90.4 | 62.2 | 38.4 RZ-177K-10I 32 89 5.133 1.4310 368.5 155.3 66.3 62.3 | 86.0 | 63.5 | 37.3 RZ-194AI 29 121 6.993 1.4310 542.5 193.5 72.5 55.3 | 85.6 | 52.7 | 27.7 RZ-202AI 24 113.5 13.659 1.4310 643.3 156.6 43.1 45.1 | 83.2 | 38.2 | 13.9 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring RZ-177GI Country of origin: DE, German; Extension Spring RZ-177GI Product image - Extension Springs RZ-177GI QR-Code: Extension Spring RZ-177GI
