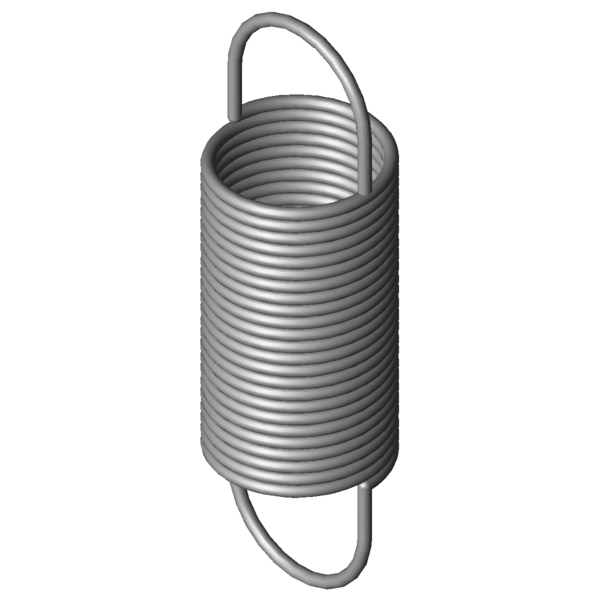

Home » Products » Extension Springs » rz-164i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° Scaled prices - Extension Spring RZ-164I Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 3.3200 EUR 37 3.3200 EUR 75 3.3200 EUR 125 3.3200 EUR 175 3.3200 EUR 250 3.3200 EUR 350 3.3200 EUR 450 3.3200 EUR Extension Spring Buy Product image Extension Spring RZ-164I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-164I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 142 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.6 mm length of unstressed spring body Ln mm maximum spring length, inner loop to inner loop sn 321.73 mm Maximum spring deflection Fn 197.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 30.2 mm distance of inner edge of loop from the spring body R 0.585 N/mm Spring rate F0 9.511 N initial tension Fntol 12.8 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 209.772 g weight of one spring Price group ###ZR - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° force-path-calculation Extension Spring RZ-164I Inquiry formular Extension Spring RZ-164I Stainless steel Ø 3.2 x 43.2 x 142 mm / 180° Inquiry formular Extension Spring RZ-164I Customs tariff number: 73202085; Extension Spring RZ-164I Country of origin: DE, German; Extension Spring RZ-164I Product image - Extension Springs RZ-164I QR-Code: Extension Spring RZ-164I
