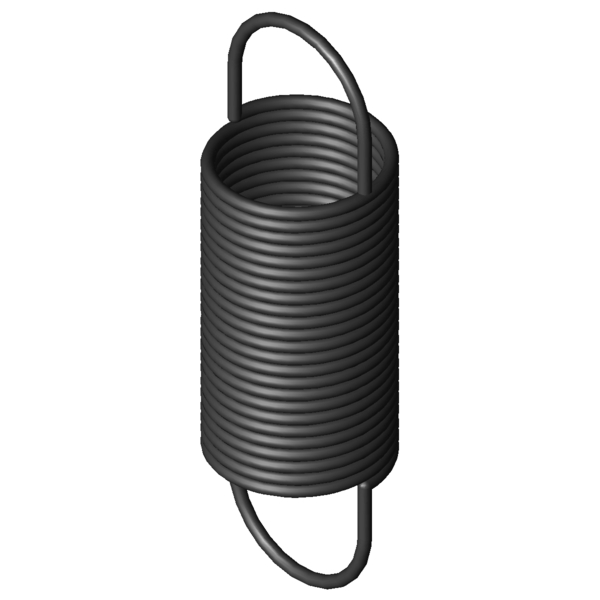

Home » Products » Extension Springs » z-164i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° Scaled prices - Extension Spring Z-164I Quantity Single price [EUR] 1 7.1700 EUR 2 4.5200 EUR 3 3.5600 EUR 7 3.0400 EUR 17 3.0400 EUR 37 3.0400 EUR 75 3.0400 EUR 125 3.0400 EUR 175 3.0400 EUR 250 3.0400 EUR 350 3.0400 EUR 450 3.0400 EUR Extension Spring Buy Product image Extension Spring Z-164I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-164I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 142 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 81.6 mm length of unstressed spring body Ln 474.62 mm maximum spring length, inner loop to inner loop sn 332.62 mm Maximum spring deflection Fn 238.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 30.2 mm distance of inner edge of loop from the spring body R 0.681 N/mm Spring rate F0 11.88 N initial tension Fntol 13.41 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 209.77 g weight of one spring Price group ###ZO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° force-path-calculation Extension Spring Z-164I Inquiry formular Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° Inquiry formular Extension Spring Z-164I Similar extension springs to Extension Spring Z-164I Spring steel Ø 3.2 x 43.2 x 142 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-164I EN 10270-1 3.2 43.2 142 238.4 474.62 332.62 0.681 100.0 | 100.0 | 100.0 | 100.0 RZ-164I 1.4310 3.2 43.2 142 197.7 463.73 321.73 0.585 91.9 | 100.0 | 89.8 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-150I 34.5 149 0.307 EN 10270-1 148.5 600.09 451.09 66.1 | 84.4 | 68.0 | 45.9 Z-162E-13I 38 167 0.36 EN 10270-1 180 639.7 472.7 71.0 | 86.8 | 72.9 | 53.1 Z-162U-03I 40 179 0.402 EN 10270-1 214.2 682.96 503.96 75.3 | 88.6 | 77.9 | 59.3 Z-162U-02I 40 158 0.486 EN 10270-1 214.2 574.86 416.86 82.9 | 92.1 | 84.8 | 71.7 Z-162E-12I 38 126 0.58 EN 10270-1 180 419.2 293.2 85.2 | 88.1 | 81.8 | 85.7 Z-162U-01I 40 140 0.592 EN 10270-1 214.2 482.2 342.2 91.9 | 95.0 | 93.5 | 87.3 Z-164I 43.2 142 0.681 EN 10270-1 238.4 474.62 332.62 100.0 | 100.0 | 100.0 | 100.0 Z-162U-21I 32 146 1.01 EN 10270-1 265.6 388.68 242.68 78.4 | 88.4 | 81.4 | 65.5 Z-167I 35.2 129 1.331 EN 10270-1 290.5 333.28 204.28 71.0 | 90.8 | 71.7 | 50.4 Z-177HI 40 146 1.448 EN 10270-1 357.1 379.08 233.08 69.4 | 92.9 | 68.4 | 46.8 Z-163I 43.2 100 1.451 EN 10270-1 238.4 256.13 156.13 70.2 | 90.1 | 73.5 | 46.9 Z-179I 44 173 1.482 EN 10270-1 436.3 450.92 277.92 67.2 | 86.8 | 69.1 | 45.7 Z-178AI 44 145 1.99 EN 10270-1 436.3 352.2 207.2 61.5 | 92.0 | 58.5 | 34.0 Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 56.8 | 81.7 | 57.4 | 31.4 Z-177GI 40 114 2.288 EN 10270-1 357.1 261.46 147.46 57.5 | 87.3 | 55.5 | 29.6 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 51.8 | 84.0 | 48.2 | 23.2 Z-178I 44 117 3.019 EN 10270-1 436.3 253.43 136.43 52.4 | 86.9 | 47.8 | 22.4 Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 48.4 | 81.2 | 44.8 | 19.3 Z-209LI 50 126 3.55 EN 10270-1 532.3 268.1 142.1 48.3 | 82.1 | 43.8 | 19.1 Z-186AI 36 132 3.88 EN 10270-1 528.1 259.2 127.2 48.1 | 85.4 | 41.7 | 17.3 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 46.4 | 87.0 | 38.0 | 14.4 Z-239I 50 132 5.59 EN 10270-1 707.9 250.3 118.3 42.6 | 81.1 | 34.6 | 12.0 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-164I Country of origin: DE, German; Extension Spring Z-164I Product image - Extension Springs Z-164I QR-Code: Extension Spring Z-164I
