Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

Scaled prices - Extension Spring Z-179I

Quantity Single price [EUR]
1 13.3600 EUR
2 10.6400 EUR
3 6.1500 EUR
7 4.0000 EUR
17 4.0000 EUR
37 4.0000 EUR
75 4.0000 EUR
125 4.0000 EUR
175 4.0000 EUR
250 4.0000 EUR
350 4.0000 EUR

Extension Spring Buy

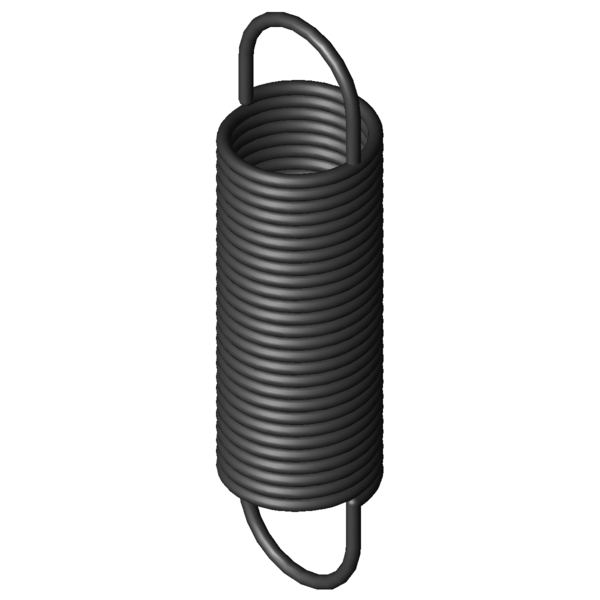

Product image Extension Spring Z-179I
Product image Extension Spring Z-179I
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-179I

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 4 mm Wire diameter
D mm mean coil diameter
De 44 mm outer coil diameter
Dh 50.6 mm minimum bush diameter
L0 173 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 114 mm length of unstressed spring body
Ln 450.92 mm maximum spring length, inner loop to inner loop
sn 277.92 mm Maximum spring deflection
Fn 436.3 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 29.5 mm distance of inner edge of loop from the spring body
R 1.482 N/mm Spring rate
F0 24.5 N initial tension
Fntol 21.2 N (+/-) tolerance of maximum spring force
L0tol 3 mm (+/-) tolerance of unstressed length
Detol 0.6 mm (+/-) tolerance of outer coil diameter
Oesttol 34 degree (+/-) tolerance of loop position
Weight 365.2281 g weight of one spring
Price group ###AF - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

force-path-calculation Extension Spring Z-179I

Inquiry formular Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

Inquiry formular Extension Spring Z-179I

Similar extension springs to Extension Spring Z-179I Spring steel Ø 4 x 44 x 173 mm / 180°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
Z-179I EN 10270-1 4 44 173 436.3 450.92 277.92 1.482 100.0 | 100.0 | 100.0 | 100.0
RZ-179I 1.4310 4 44 173 366.5 445.61 272.61 1.273 92.2 | 100.0 | 91.0 | 85.6
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
Z-150AI 34.5 184 0.227 EN 10270-1 148.5 794.97 610.97 44.5 | 78.3 | 39.8 | 15.5
Z-162U-04I 40 197 0.35 EN 10270-1 214.2 775.63 578.63 52.2 | 84.6 | 48.6 | 23.6
Z-162E-13I 38 167 0.36 EN 10270-1 180 639.7 472.7 52.9 | 84.3 | 50.0 | 24.3
Z-162U-03I 40 179 0.402 EN 10270-1 214.2 682.96 503.96 55.6 | 87.5 | 52.1 | 27.1
Z-165I 43.2 190 0.423 EN 10270-1 238.4 725.5 535.5 57.1 | 89.7 | 53.3 | 28.4
Z-162U-02I 40 158 0.486 EN 10270-1 214.2 574.86 416.86 58.8 | 85.7 | 57.9 | 32.7
Z-162U-01I 40 140 0.592 EN 10270-1 214.2 482.2 342.2 62.4 | 82.3 | 65.2 | 39.9
Z-164I 43.2 142 0.681 EN 10270-1 238.4 474.62 332.62 67.2 | 86.8 | 69.1 | 45.7
Z-168I 35.2 177 0.825 EN 10270-1 290.5 506.35 329.35 72.5 | 85.9 | 75.5 | 56.2
Z-162U-22I 32 167 0.835 EN 10270-1 265.6 460.39 293.39 72.3 | 81.4 | 77.8 | 57.7
Z-177JI 40 200 0.898 EN 10270-1 357.1 575.1 375.1 75.9 | 89.1 | 78.0 | 60.6
Z-180I 44 225 1.006 EN 10270-1 436.3 634.3 409.3 81.4 | 92.3 | 84.0 | 67.9
Z-177HI 40 146 1.448 EN 10270-1 357.1 379.08 233.08 89.6 | 88.4 | 82.9 | 97.6
Z-179I 44 173 1.482 EN 10270-1 436.3 450.92 277.92 100.0 | 100.0 | 100.0 | 100.0
Z-210I 50 194 1.613 EN 10270-1 532.3 506.74 312.74 88.8 | 88.7 | 85.4 | 92.2
Z-178AI 44 145 1.99 EN 10270-1 436.3 352.2 207.2 85.5 | 94.6 | 87.3 | 74.6
Z-177K-02I 32 179 1.992 EN 10270-1 441.6 382.97 203.97 81.7 | 86.5 | 86.1 | 72.5
Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 80.6 | 90.2 | 82.9 | 68.7
Z-218I 40 205 2.787 EN 10270-1 658.2 420.09 215.09 70.4 | 88.1 | 71.8 | 51.3
Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 71.4 | 91.4 | 72.0 | 50.7
Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 66.5 | 92.3 | 65.0 | 42.3
Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 65.9 | 89.1 | 65.7 | 43.0
Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 58.8 | 88.1 | 56.9 | 31.5
Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 55.3 | 85.3 | 53.0 | 27.8
Z-247I 40 191 5.4 EN 10270-1 873.5 338.87 147.87 55.1 | 87.2 | 51.6 | 26.6
Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 50.5 | 87.0 | 44.8 | 19.8
Z-284I 40 203 8.255 EN 10270-1 1134 325.86 122.86 47.1 | 83.0 | 41.3 | 17.0
Z-313JI 50 196 9.38 EN 10270-1 1331 325.1 129.1 44.9 | 79.9 | 39.6 | 15.2
Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 44.9 | 86.3 | 35.7 | 12.7
Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring Z-179I

Country of origin: DE, German; Extension Spring Z-179I

Product image - Extension Springs Z-179I

Product image - Extension Springs Z-179I

QR-Code: Extension Spring Z-179I

QR-Code - Extension Springs - Z-179I | https://www.federnshop.com/en/products/extension_springs/z-179i.html
