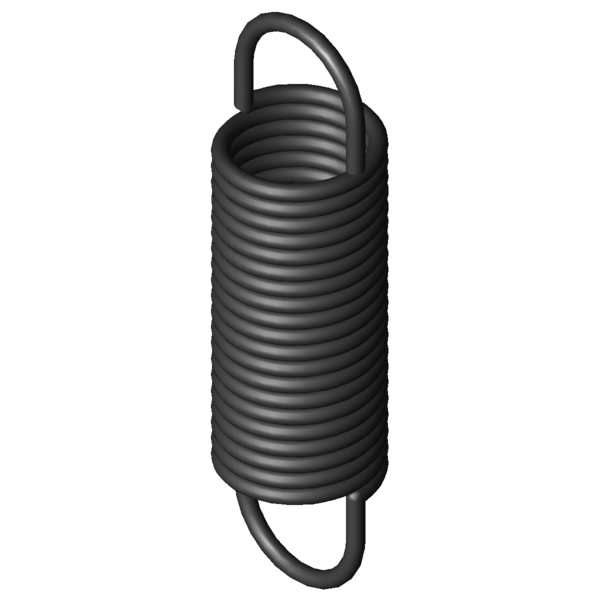

Home » Products » Extension Springs » z-276ji Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° Scaled prices - Extension Spring Z-276JI Quantity Single price [EUR] 1 15.2800 EUR 2 12.1700 EUR 3 7.9400 EUR 7 6.0400 EUR 17 6.0400 EUR 37 6.0400 EUR 75 6.0400 EUR 125 6.0400 EUR 175 6.0400 EUR 250 6.0400 EUR 350 6.0400 EUR Extension Spring Buy Product image Extension Spring Z-276JI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-276JI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 182 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 118.25 mm length of unstressed spring body Ln 345 mm maximum spring length, inner loop to inner loop sn 163 mm Maximum spring deflection Fn 921.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 31.9 mm distance of inner edge of loop from the spring body R 5.16 N/mm Spring rate F0 80 N initial tension Fntol 46.2 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 584.3509 g weight of one spring Price group ###AN - price group Technical drawing Extension Spring Datasheet Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° force-path-calculation Extension Spring Z-276JI Inquiry formular Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° Inquiry formular Extension Spring Z-276JI Similar extension springs to Extension Spring Z-276JI Spring steel Ø 5.5 x 50 x 182 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-276JI EN 10270-1 5.5 50 182 921.2 345 163 5.16 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-177JI 40 200 0.898 EN 10270-1 357.1 575.1 375.1 45.6 | 78.8 | 41.1 | 16.8 Z-209BI 60 180 1.19 EN 10270-1 438 529.8 349.8 52.4 | 88.0 | 47.1 | 22.2 Z-211I 50 220 1.324 EN 10270-1 532.3 600.97 380.97 54.4 | 88.2 | 50.3 | 24.7 Z-179I 44 173 1.482 EN 10270-1 436.3 450.92 277.92 55.3 | 85.3 | 53.0 | 27.8 Z-210I 50 194 1.613 EN 10270-1 532.3 506.74 312.74 59.0 | 91.9 | 55.0 | 30.1 Z-238BI 60 189 1.86 EN 10270-1 585 487.8 298.8 61.3 | 90.2 | 59.0 | 34.6 Z-241I 50 237 2.086 EN 10270-1 707.9 553.87 316.87 64.3 | 89.2 | 64.1 | 39.5 Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 64.8 | 90.3 | 63.9 | 40.4 Z-240I 50 207 2.541 EN 10270-1 707.9 467.12 260.12 70.3 | 92.9 | 69.8 | 48.2 Z-260JI 60 198 2.8 EN 10270-1 774.5 460.2 262.2 72.4 | 91.8 | 73.1 | 52.3 Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 78.0 | 86.5 | 81.7 | 65.7 Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 80.1 | 95.1 | 80.5 | 64.6 Z-209LI 50 126 3.55 EN 10270-1 532.3 268.1 142.1 74.1 | 83.7 | 72.5 | 66.3 Z-277I 50 220 3.847 EN 10270-1 921.2 438.69 218.69 85.3 | 94.2 | 87.3 | 74.5 Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 100.0 | 100.0 | 100.0 | 100.0 Z-247I 40 191 5.4 EN 10270-1 873.5 338.87 147.87 92.4 | 88.7 | 92.8 | 95.7 Z-239I 50 132 5.59 EN 10270-1 707.9 250.3 118.3 85.7 | 87.8 | 74.7 | 94.4 Z-314I 50 240 6.993 EN 10270-1 1331 413.27 173.27 81.0 | 87.7 | 81.6 | 73.6 Z-284I 40 203 8.255 EN 10270-1 1134 325.86 122.86 76.5 | 89.9 | 78.3 | 61.2 Z-306HI 60 162 8.29 EN 10270-1 1122 287.7 125.7 76.5 | 86.5 | 79.6 | 63.3 Z-276HI 50 138 8.46 EN 10270-1 921.2 237.4 99.4 77.8 | 91.9 | 80.5 | 61.0 Z-313JI 50 196 9.38 EN 10270-1 1331 325.1 129.1 74.1 | 93.4 | 74.2 | 54.8 Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 68.2 | 90.2 | 68.7 | 45.7 Z-350HI 50 210 15 EN 10270-1 1763 314.2 104.2 60.0 | 88.4 | 58.1 | 33.4 Z-313HI 50 146 15.38 EN 10270-1 1331 224 78 60.3 | 89.2 | 58.5 | 33.1 Z-320JI 40 180 20.45 EN 10270-1 1632 250 70 54.2 | 88.7 | 49.7 | 24.2 Z-380HI 50 227 27.47 EN 10270-1 2515 307.6 80.6 48.0 | 83.0 | 43.0 | 18.1 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-276JI Country of origin: DE, German; Extension Spring Z-276JI Product image - Extension Springs Z-276JI QR-Code: Extension Spring Z-276JI
