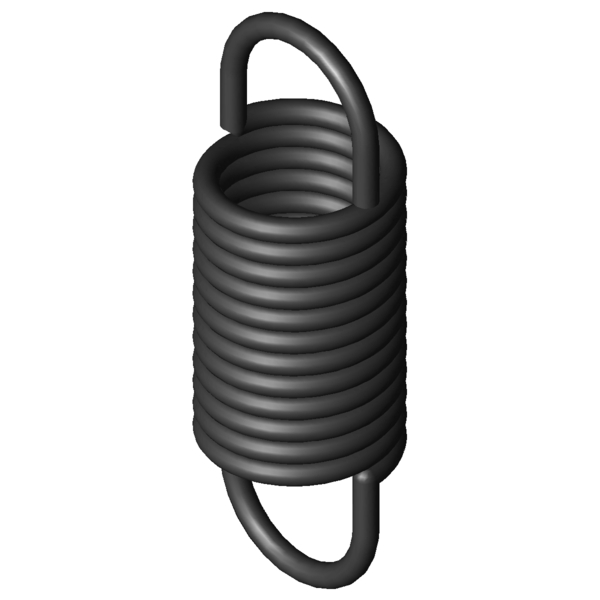

Home » Products » Extension Springs » z-313hi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° Scaled prices - Extension Spring Z-313HI Quantity Single price [EUR] 1 15.4300 EUR 2 12.3000 EUR 3 8.1000 EUR 7 6.2800 EUR 17 6.2800 EUR 37 6.2800 EUR 75 6.2800 EUR 125 6.2800 EUR 175 6.2800 EUR 250 6.2800 EUR 350 6.2800 EUR Extension Spring Buy Product image Extension Spring Z-313HI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-313HI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 60 mm minimum bush diameter L0 146 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 85.05 mm length of unstressed spring body Ln 224 mm maximum spring length, inner loop to inner loop sn 78 mm Maximum spring deflection Fn 1331 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 30.5 mm distance of inner edge of loop from the spring body R 15.38 N/mm Spring rate F0 120 N initial tension Fntol 74.8 N (+/-) tolerance of maximum spring force L0tol 2 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 18 degree (+/-) tolerance of loop position Weight 482.2094 g weight of one spring Price group ###AO - price group Technical drawing Extension Spring Datasheet Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° force-path-calculation Extension Spring Z-313HI Inquiry formular Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° Inquiry formular Extension Spring Z-313HI Similar extension springs to Extension Spring Z-313HI Spring steel Ø 6.3 x 50 x 146 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-313HI EN 10270-1 6.3 50 146 1331 224 78 15.38 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-178I 44 117 3.019 EN 10270-1 436.3 253.43 136.43 47.0 | 77.2 | 45.0 | 18.7 Z-238AI 60 149 3.06 EN 10270-1 585 331.3 182.3 49.7 | 86.9 | 43.4 | 18.8 Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 52.1 | 88.1 | 46.7 | 21.4 Z-209LI 50 126 3.55 EN 10270-1 532.3 268.1 142.1 51.8 | 85.9 | 47.4 | 22.0 Z-186AI 36 132 3.88 EN 10270-1 528.1 259.2 127.2 50.0 | 75.3 | 50.5 | 24.3 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 50.7 | 84.2 | 46.7 | 21.4 Z-260HI 60 154 4.6 EN 10270-1 774.5 313.9 159.9 56.8 | 88.5 | 53.5 | 28.4 Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 54.2 | 88.7 | 49.7 | 24.2 Z-239I 50 132 5.59 EN 10270-1 707.9 250.3 118.3 61.5 | 89.9 | 59.6 | 35.1 Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 60.4 | 88.7 | 58.5 | 34.0 Z-306HI 60 162 8.29 EN 10270-1 1122 287.7 125.7 72.2 | 91.2 | 73.2 | 52.3 Z-276HI 50 138 8.46 EN 10270-1 921.2 237.4 99.4 74.0 | 93.9 | 73.8 | 54.3 Z-313JI 50 196 9.38 EN 10270-1 1331 325.1 129.1 77.4 | 91.5 | 80.2 | 60.4 Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 73.0 | 93.0 | 73.0 | 53.1 Z-313HI 50 146 15.38 EN 10270-1 1331 224 78 100.0 | 100.0 | 100.0 | 100.0 Z-283HI 40 121 18.16 EN 10270-1 1134 176.8 55.8 77.5 | 91.1 | 80.5 | 60.9 Z-320HI 40 130 33.54 EN 10270-1 1632 172.7 42.7 59.7 | 88.7 | 58.1 | 32.4 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-313HI Country of origin: DE, German; Extension Spring Z-313HI Product image - Extension Springs Z-313HI QR-Code: Extension Spring Z-313HI
