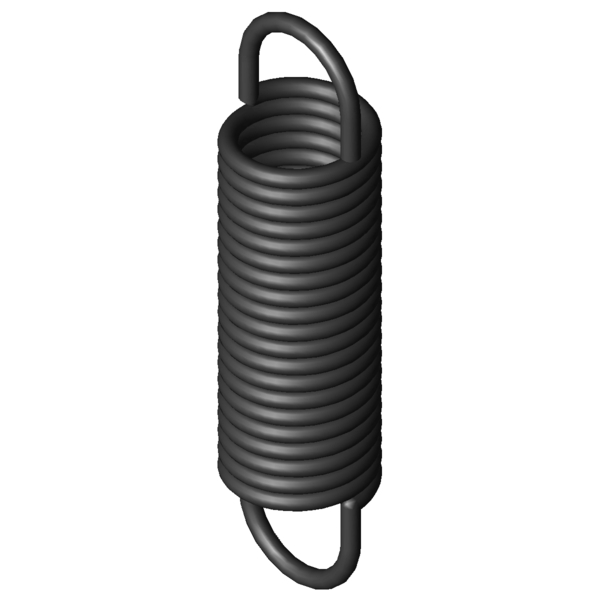

Home » Products » Extension Springs » z-313ji Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° Scaled prices - Extension Spring Z-313JI Quantity Single price [EUR] 1 15.7400 EUR 2 12.5400 EUR 3 8.4100 EUR 7 6.6100 EUR 17 6.6100 EUR 37 6.6100 EUR 75 6.6100 EUR 125 6.6100 EUR 175 6.6100 EUR 250 6.6100 EUR 350 6.6100 EUR Extension Spring Buy Product image Extension Spring Z-313JI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-313JI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 6.3 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 60 mm minimum bush diameter L0 196 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 135.45 mm length of unstressed spring body Ln 325.1 mm maximum spring length, inner loop to inner loop sn 129.1 mm Maximum spring deflection Fn 1331 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 30.3 mm distance of inner edge of loop from the spring body R 9.38 N/mm Spring rate F0 120 N initial tension Fntol 71.9 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 752.9235 g weight of one spring Price group ###AP - price group Technical drawing Extension Spring Datasheet Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° force-path-calculation Extension Spring Z-313JI Inquiry formular Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° Inquiry formular Extension Spring Z-313JI Similar extension springs to Extension Spring Z-313JI Spring steel Ø 6.3 x 50 x 196 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-313JI EN 10270-1 6.3 50 196 1331 325.1 129.1 9.38 69.7 | 87.4 | 71.1 | 50.5 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-241I 50 237 2.086 EN 10270-1 707.9 553.87 316.87 64.3 | 89.2 | 64.1 | 39.5 Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 63.0 | 78.0 | 67.4 | 43.8 Z-240I 50 207 2.541 EN 10270-1 707.9 467.12 260.12 67.8 | 78.9 | 72.3 | 52.2 Z-218I 40 205 2.787 EN 10270-1 658.2 420.09 215.09 55.6 | 82.3 | 54.7 | 29.7 Z-260JI 60 198 2.8 EN 10270-1 774.5 460.2 262.2 73.3 | 87.6 | 75.4 | 56.7 Z-278I 50 252 3.158 EN 10270-1 921.2 518.41 266.41 60.2 | 88.4 | 58.8 | 33.5 Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 76.4 | 76.2 | 81.6 | 71.3 Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 79.0 | 82.5 | 84.5 | 70.1 Z-277I 50 220 3.847 EN 10270-1 921.2 438.69 218.69 85.3 | 94.2 | 87.3 | 74.5 Z-306JI 60 212 5.05 EN 10270-1 1122 418.1 206.1 91.3 | 89.9 | 88.3 | 95.7 Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 89.7 | 85.5 | 91.4 | 92.2 Z-247I 40 191 5.4 EN 10270-1 873.5 338.87 147.87 92.4 | 88.7 | 92.8 | 95.7 Z-314I 50 240 6.993 EN 10270-1 1331 413.27 173.27 81.0 | 87.7 | 81.6 | 73.6 Z-284I 40 203 8.255 EN 10270-1 1134 325.86 122.86 76.5 | 89.9 | 78.3 | 61.2 Z-313JI 50 196 9.38 EN 10270-1 1331 325.1 129.1 69.7 | 87.4 | 71.1 | 50.5 Z-350HI 50 210 15 EN 10270-1 1763 314.2 104.2 56.1 | 82.1 | 55.5 | 30.8 Z-313HI 50 146 15.38 EN 10270-1 1331 224 78 57.5 | 84.5 | 57.4 | 30.5 Z-320JI 40 180 20.45 EN 10270-1 1632 250 70 52.1 | 85.3 | 48.5 | 22.3 Z-380HI 50 227 27.47 EN 10270-1 2515 307.6 80.6 48.0 | 83.0 | 43.0 | 18.1 Number of similar metal springs: 18 Customs tariff number: 73202085; Extension Spring Z-313JI Country of origin: DE, German; Extension Spring Z-313JI Product image - Extension Springs Z-313JI QR-Code: Extension Spring Z-313JI
