Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

Scaled prices - Extension Spring Z-278I

Quantity	Single price [EUR]
1	15.2800 EUR
2	12.1700 EUR
3	7.9400 EUR
7	6.0400 EUR
17	6.0400 EUR
37	6.0400 EUR
75	6.0400 EUR
125	6.0400 EUR
175	6.0400 EUR
250	6.0400 EUR
350	6.0400 EUR

Extension Spring Buy

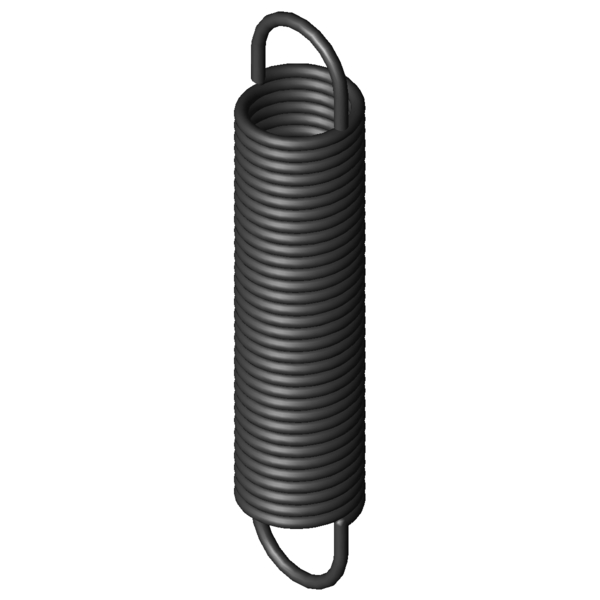

Product image Extension Spring Z-278I

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-278I

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	180	°	Eyelet position
d	5.5	mm	Wire diameter
D		mm	mean coil diameter
De	50	mm	outer coil diameter
Dh	59.1	mm	minimum bush diameter
L0	252	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	189.75	mm	length of unstressed spring body
Ln	518.41	mm	maximum spring length, inner loop to inner loop
sn	266.41	mm	Maximum spring deflection
Fn	921.2	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	31.12	mm	distance of inner edge of loop from the spring body
R	3.158	N/mm	Spring rate
F0	80	N	initial tension
Fntol	45	N	(+/-) tolerance of maximum spring force
L0tol	4	mm	(+/-) tolerance of unstressed length
Detol	0.8	mm	(+/-) tolerance of outer coil diameter
Oesttol	34	degree	(+/-) tolerance of loop position
Weight	925.7694	g	weight of one spring
Price group	###AN	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

force-path-calculation Extension Spring Z-278I

Inquiry formular Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

Inquiry formular Extension Spring Z-278I

Similar extension springs to Extension Spring Z-278I Spring steel Ø 5.5 x 50 x 252 mm / 180°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-278I	EN 10270-1	5.5	50	252	921.2	518.41	266.41	3.158	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1
