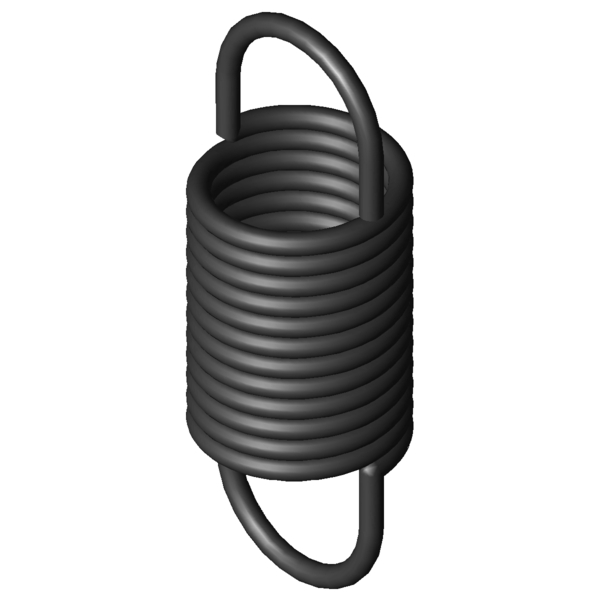

Home » Products » Extension Springs » z-276hi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° Scaled prices - Extension Spring Z-276HI Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring Z-276HI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-276HI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 50 mm outer coil diameter Dh 59.1 mm minimum bush diameter L0 138 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 74.25 mm length of unstressed spring body Ln 237.4 mm maximum spring length, inner loop to inner loop sn 99.4 mm Maximum spring deflection Fn 921.2 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 31.9 mm distance of inner edge of loop from the spring body R 8.46 N/mm Spring rate F0 80 N initial tension Fntol 47.9 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 20 degree (+/-) tolerance of loop position Weight 374.2472 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° force-path-calculation Extension Spring Z-276HI Inquiry formular Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° Inquiry formular Extension Spring Z-276HI Similar extension springs to Extension Spring Z-276HI Spring steel Ø 5.5 x 50 x 138 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-276HI EN 10270-1 5.5 50 138 921.2 237.4 99.4 8.46 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 54.6 | 89.0 | 50.2 | 24.6 Z-177GI 40 114 2.288 EN 10270-1 357.1 261.46 147.46 51.7 | 76.0 | 53.1 | 26.1 Z-178I 44 117 3.019 EN 10270-1 436.3 253.43 136.43 58.8 | 81.8 | 60.1 | 34.5 Z-238AI 60 149 3.06 EN 10270-1 585 331.3 182.3 60.9 | 89.0 | 59.0 | 34.6 Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 64.6 | 90.4 | 64.1 | 39.4 Z-209LI 50 126 3.55 EN 10270-1 532.3 268.1 142.1 65.1 | 91.0 | 63.9 | 40.4 Z-186AI 36 132 3.88 EN 10270-1 528.1 259.2 127.2 64.2 | 80.1 | 67.7 | 44.8 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 70.9 | 85.4 | 73.3 | 53.8 Z-260HI 60 154 4.6 EN 10270-1 774.5 313.9 159.9 72.1 | 91.0 | 73.1 | 52.3 Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 77.8 | 91.9 | 80.5 | 61.0 Z-239I 50 132 5.59 EN 10270-1 707.9 250.3 118.3 80.2 | 95.5 | 80.4 | 64.6 Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 88.2 | 86.5 | 92.5 | 85.5 Z-216HI 40 110 7.47 EN 10270-1 658.2 190.6 80.6 81.6 | 80.5 | 76.3 | 88.1 Z-306HI 60 162 8.29 EN 10270-1 1122 287.7 125.7 87.4 | 85.3 | 80.6 | 96.3 Z-276HI 50 138 8.46 EN 10270-1 921.2 237.4 99.4 100.0 | 100.0 | 100.0 | 100.0 Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 83.1 | 87.9 | 86.7 | 74.9 Z-246HI 40 116 11.88 EN 10270-1 873.5 183.2 67.2 79.2 | 85.0 | 81.2 | 71.3 Z-313HI 50 146 15.38 EN 10270-1 1331 224 78 74.0 | 93.9 | 73.8 | 54.3 Z-283HI 40 121 18.16 EN 10270-1 1134 176.8 55.8 67.8 | 89.2 | 68.7 | 45.6 Z-320HI 40 130 33.54 EN 10270-1 1632 172.7 42.7 53.7 | 87.2 | 49.7 | 24.2 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-276HI Country of origin: DE, German; Extension Spring Z-276HI Product image - Extension Springs Z-276HI QR-Code: Extension Spring Z-276HI
