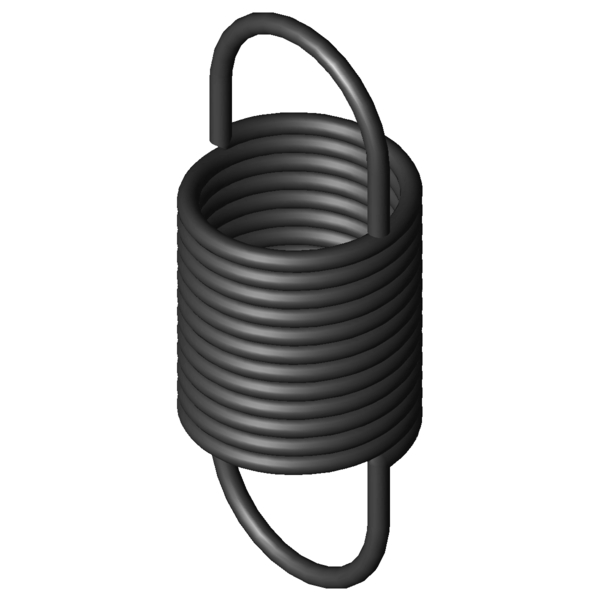

Home » Products » Extension Springs » z-260hi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° Scaled prices - Extension Spring Z-260HI Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring Z-260HI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-260HI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 60 mm outer coil diameter Dh 69.3 mm minimum bush diameter L0 154 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 74.25 mm length of unstressed spring body Ln 313.9 mm maximum spring length, inner loop to inner loop sn 159.9 mm Maximum spring deflection Fn 774.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 39.9 mm distance of inner edge of loop from the spring body R 4.6 N/mm Spring rate F0 38 N initial tension Fntol 38.9 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 458.3477 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° force-path-calculation Extension Spring Z-260HI Inquiry formular Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° Inquiry formular Extension Spring Z-260HI Similar extension springs to Extension Spring Z-260HI Spring steel Ø 5.5 x 60 x 154 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-260HI EN 10270-1 5.5 60 154 774.5 313.9 159.9 4.6 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-238CI 60 223 1.39 EN 10270-1 585 624 401 58.2 | 86.7 | 57.7 | 30.1 Z-177HI 40 146 1.448 EN 10270-1 357.1 379.08 233.08 54.9 | 75.6 | 57.4 | 31.6 Z-179I 44 173 1.482 EN 10270-1 436.3 450.92 277.92 47.1 | 83.0 | 41.3 | 17.0 Z-210I 50 194 1.613 EN 10270-1 532.3 506.74 312.74 58.9 | 81.5 | 59.9 | 35.1 Z-238BI 60 189 1.86 EN 10270-1 585 487.8 298.8 65.2 | 90.8 | 64.5 | 40.4 Z-209AI 60 143 1.96 EN 10270-1 438 356.3 213.3 66.6 | 91.6 | 65.8 | 42.4 Z-178AI 44 145 1.99 EN 10270-1 436.3 352.2 207.2 63.4 | 80.1 | 66.8 | 43.5 Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 67.5 | 86.7 | 68.7 | 47.1 Z-260JI 60 198 2.8 EN 10270-1 774.5 460.2 262.2 78.0 | 92.6 | 80.5 | 61.0 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 73.7 | 76.3 | 80.9 | 63.9 Z-238AI 60 149 3.06 EN 10270-1 585 331.3 182.3 81.3 | 95.9 | 81.6 | 66.3 Z-239AI 50 172 3.41 EN 10270-1 707.9 365.9 193.9 83.4 | 87.9 | 86.9 | 75.4 Z-209LI 50 126 3.55 EN 10270-1 532.3 268.1 142.1 79.5 | 82.3 | 78.8 | 77.3 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 87.4 | 81.1 | 83.8 | 97.2 Z-260HI 60 154 4.6 EN 10270-1 774.5 313.9 159.9 100.0 | 100.0 | 100.0 | 100.0 Z-298I 70 178 4.96 EN 10270-1 968.5 363.9 185.9 87.5 | 86.5 | 83.0 | 93.0 Z-306JI 60 212 5.05 EN 10270-1 1122 418.1 206.1 83.0 | 86.6 | 73.3 | 89.0 Z-276JI 50 182 5.16 EN 10270-1 921.2 345 163 88.7 | 89.3 | 91.1 | 85.7 Z-239I 50 132 5.59 EN 10270-1 707.9 250.3 118.3 83.4 | 86.7 | 82.7 | 80.9 Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 86.2 | 89.3 | 83.4 | 85.9 Z-306HI 60 162 8.29 EN 10270-1 1122 287.7 125.7 74.1 | 94.1 | 73.8 | 54.3 Z-276HI 50 138 8.46 EN 10270-1 921.2 237.4 99.4 72.1 | 91.0 | 73.1 | 52.3 Z-313JI 50 196 9.38 EN 10270-1 1331 325.1 129.1 66.5 | 83.1 | 69.5 | 47.0 Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 85.2 | 93.8 | 87.3 | 74.6 Z-313HI 50 146 15.38 EN 10270-1 1331 224 78 56.8 | 88.5 | 53.5 | 28.4 Number of similar metal springs: 24 Customs tariff number: 73202085; Extension Spring Z-260HI Country of origin: DE, German; Extension Spring Z-260HI Product image - Extension Springs Z-260HI QR-Code: Extension Spring Z-260HI
