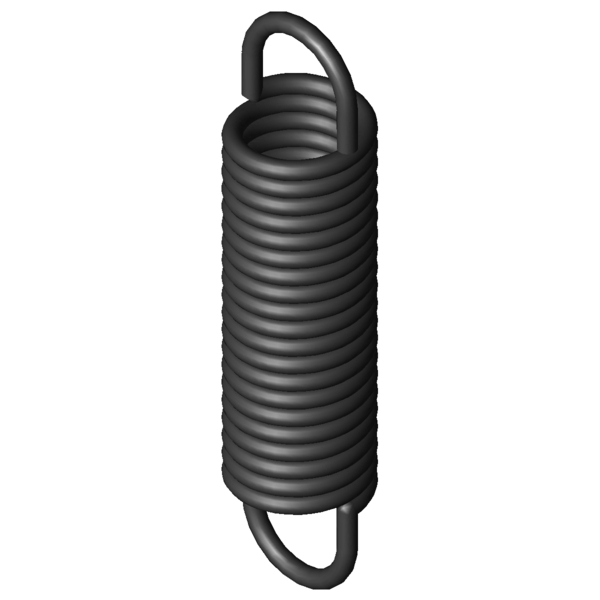

Home » Products » Extension Springs » z-283ji Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° Scaled prices - Extension Spring Z-283JI Quantity Single price [EUR] 1 14.4000 EUR 2 11.4700 EUR 3 7.0900 EUR 7 5.2300 EUR 17 5.2300 EUR 37 5.2300 EUR 75 5.2300 EUR 125 5.2300 EUR 175 5.2300 EUR 250 5.2300 EUR 350 5.2300 EUR Extension Spring Buy Product image Extension Spring Z-283JI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-283JI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 48.8 mm minimum bush diameter L0 165 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 118.25 mm length of unstressed spring body Ln 256.6 mm maximum spring length, inner loop to inner loop sn 91.6 mm Maximum spring deflection Fn 1134 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.4 mm distance of inner edge of loop from the spring body R 11.07 N/mm Spring rate F0 120 N initial tension Fntol 66.8 N (+/-) tolerance of maximum spring force L0tol 2.5 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 25 degree (+/-) tolerance of loop position Weight 453.0361 g weight of one spring Price group ###AK - price group Technical drawing Extension Spring Datasheet Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° force-path-calculation Extension Spring Z-283JI Inquiry formular Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° Inquiry formular Extension Spring Z-283JI Similar extension springs to Extension Spring Z-283JI Spring steel Ø 5.5 x 40 x 165 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-283JI EN 10270-1 5.5 40 165 1134 256.6 91.6 11.07 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-177HI 40 146 1.448 EN 10270-1 357.1 379.08 233.08 44.1 | 84.6 | 35.4 | 12.4 Z-179I 44 173 1.482 EN 10270-1 436.3 450.92 277.92 44.9 | 86.3 | 35.7 | 12.7 Z-178AI 44 145 1.99 EN 10270-1 436.3 352.2 207.2 47.4 | 83.8 | 41.3 | 17.0 Z-177K-02I 32 179 1.992 EN 10270-1 441.6 382.97 203.97 46.2 | 79.2 | 41.9 | 17.5 Z-209MI 50 162 2.16 EN 10270-1 532.3 395.1 233.1 49.4 | 86.7 | 43.1 | 18.4 Z-177K-01I 32 154 2.449 EN 10270-1 441.6 319.89 165.89 49.4 | 79.6 | 47.1 | 21.5 Z-218I 40 205 2.787 EN 10270-1 658.2 420.09 215.09 54.2 | 87.4 | 50.3 | 24.7 Z-187I 36 160 2.894 EN 10270-1 528.1 330.63 170.63 53.9 | 86.6 | 50.1 | 25.0 Z-217I 40 178 3.395 EN 10270-1 658.2 355.22 177.22 58.8 | 91.5 | 54.9 | 30.0 Z-216JI 40 146 4.56 EN 10270-1 658.2 278.1 132.1 64.7 | 90.1 | 63.7 | 40.2 Z-247I 40 191 5.4 EN 10270-1 873.5 338.87 147.87 69.9 | 92.4 | 69.5 | 47.7 Z-246JI 40 156 7.24 EN 10270-1 873.5 266.2 110.2 79.8 | 95.2 | 80.1 | 64.0 Z-284I 40 203 8.255 EN 10270-1 1134 325.86 122.86 85.2 | 93.8 | 87.3 | 74.6 Z-224I 30 162 9.161 EN 10270-1 858.7 247.88 85.88 83.5 | 85.0 | 84.7 | 80.8 Z-283JI 40 165 11.07 EN 10270-1 1134 256.6 91.6 100.0 | 100.0 | 100.0 | 100.0 Z-283HI 40 121 18.16 EN 10270-1 1134 176.8 55.8 77.5 | 91.1 | 80.5 | 60.9 Z-320JI 40 180 20.45 EN 10270-1 1632 250 70 73.0 | 93.0 | 73.0 | 53.1 Z-320HI 40 130 33.54 EN 10270-1 1632 172.7 42.7 59.7 | 88.7 | 58.1 | 32.4 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring Z-283JI Country of origin: DE, German; Extension Spring Z-283JI Product image - Extension Springs Z-283JI QR-Code: Extension Spring Z-283JI
