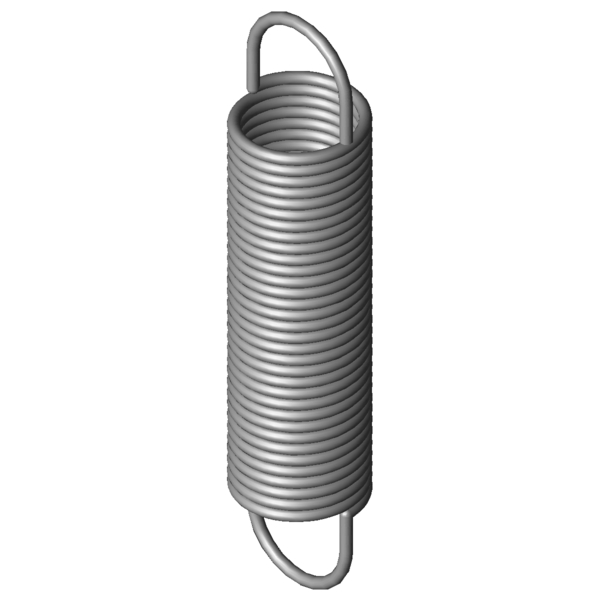

Home » Products » Extension Springs » rz-162u-21i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° Scaled prices - Extension Spring RZ-162U-21I Quantity Single price [EUR] 1 7.8500 EUR 2 4.9500 EUR 3 4.0000 EUR 7 3.4100 EUR 17 3.4100 EUR 37 3.4100 EUR 75 3.4100 EUR 125 3.4100 EUR 175 3.4100 EUR 250 3.4100 EUR 350 3.4100 EUR 450 3.4100 EUR Extension Spring Buy Product image Extension Spring RZ-162U-21I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-21I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 32 mm outer coil diameter Dh 37 mm minimum bush diameter L0 146 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 103.5 mm length of unstressed spring body Ln 380.03 mm maximum spring length, inner loop to inner loop sn 234.03 mm Maximum spring deflection Fn 219.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 21.25 mm distance of inner edge of loop from the spring body R 0.867 N/mm Spring rate F0 16.4 N initial tension Fntol 12.72 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.5 mm (+/-) tolerance of outer coil diameter Oesttol 37 degree (+/-) tolerance of loop position Weight 179.4973 g weight of one spring Price group ###ZS - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° force-path-calculation Extension Spring RZ-162U-21I Inquiry formular Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° Inquiry formular Extension Spring RZ-162U-21I Similar extension springs to Extension Spring RZ-162U-21I Stainless steel Ø 3 x 32 x 146 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-21I 1.4310 3 32 146 219.4 380.03 234.03 0.867 100.0 | 100.0 | 100.0 | 100.0 Z-162U-21I EN 10270-1 3 32 146 265.6 388.68 242.68 1.01 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-130E-14I 24 143.5 0.141 1.4310 73.5 638.2 494.7 44.7 | 77.8 | 40.4 | 15.8 RZ-147E-24I 30 177 0.16 1.4310 104.3 805.7 628.7 47.8 | 83.2 | 42.4 | 17.7 RZ-133AI 27 146 0.167 1.4310 84.86 619.89 473.89 48.9 | 83.7 | 44.0 | 19.1 RZ-147E-23I 30 133 0.242 1.4310 104.3 550.3 417.3 54.8 | 86.1 | 51.8 | 26.7 RZ-150I 34.5 149 0.264 1.4310 123.5 586.95 437.95 58.8 | 91.4 | 54.9 | 30.1 RZ-149I 34.5 112 0.426 1.4310 123.5 383.64 271.64 68.0 | 84.3 | 71.2 | 48.5 RZ-153AI 27.5 156 0.47 1.4310 153.7 459.52 303.52 71.7 | 87.6 | 73.6 | 54.0 RZ-162U-01I 40 140 0.509 1.4310 176.9 469.72 329.72 75.0 | 92.0 | 75.8 | 57.2 RZ-153I 27.5 138 0.554 1.4310 153.7 395.83 257.83 77.3 | 87.9 | 80.4 | 63.6 RZ-162U-23I 32 185 0.625 1.4310 219.4 509.85 324.85 83.7 | 93.0 | 86.0 | 72.0 RZ-162JI 30 154 0.677 1.4310 193.3 419 265 86.7 | 94.0 | 88.2 | 77.8 RZ-162U-22I 32 167 0.718 1.4310 219.4 449.93 282.93 90.0 | 95.8 | 91.4 | 82.7 RZ-162U-21I 32 146 0.867 1.4310 219.4 380.03 234.03 100.0 | 100.0 | 100.0 | 100.0 RZ-156AI 22.5 148 0.919 1.4310 186.1 335.35 187.35 87.0 | 84.1 | 82.4 | 94.4 RZ-162U-20I 32 128 1.057 1.4310 219.4 320.11 192.11 89.7 | 95.9 | 91.0 | 82.1 RZ-162HI 30 112 1.091 1.4310 193.3 276.44 164.44 82.3 | 87.9 | 79.2 | 79.8 RZ-167I 35.2 129 1.143 1.4310 240.9 326.73 197.73 85.2 | 91.0 | 87.8 | 76.9 RZ-177HI 40 146 1.244 1.4310 298 373.09 227.09 81.5 | 87.8 | 85.3 | 71.4 RZ-162K-01I 25 143 1.277 1.4310 229.9 309.56 166.56 80.3 | 89.8 | 83.3 | 67.9 RZ-162U-19I 32 108 1.418 1.4310 219.4 251.2 143.2 77.7 | 91.3 | 80.6 | 61.2 RZ-171I 28.2 166 1.487 1.4310 297.5 353.49 187.49 75.3 | 89.9 | 76.9 | 59.1 RZ-177K-02I 32 179 1.711 1.4310 368.5 377.93 198.93 70.4 | 88.3 | 72.3 | 50.6 RZ-162U-32I 24 154 1.89 1.4310 287.9 294.74 140.74 68.0 | 89.9 | 68.2 | 45.8 RZ-177K-01I 32 154 2.104 1.4310 368.5 315.8 161.8 66.1 | 92.7 | 64.3 | 41.2 RZ-170I 28.2 118 2.397 1.4310 297.5 234.29 116.29 62.0 | 87.6 | 61.7 | 36.6 RZ-187I 36 160 2.486 1.4310 443.6 327.42 167.42 60.3 | 85.0 | 60.5 | 35.4 RZ-177K-11I 32 118 3.13 1.4310 368.5 226.7 108.7 56.2 | 88.1 | 53.0 | 27.7 RZ-186AI 36 132 3.335 1.4310 443.6 256.8 124.8 54.2 | 84.8 | 51.4 | 26.4 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring RZ-162U-21I Country of origin: DE, German; Extension Spring RZ-162U-21I Product image - Extension Springs RZ-162U-21I QR-Code: Extension Spring RZ-162U-21I
