Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

Scaled prices - Extension Spring RZ-162U-22I

Quantity Single price [EUR]
1 8.4900 EUR
2 5.3500 EUR
3 4.3300 EUR
7 3.7000 EUR
17 3.7000 EUR
37 3.7000 EUR
75 3.7000 EUR
125 3.7000 EUR
175 3.7000 EUR
250 3.7000 EUR
350 3.7000 EUR
450 3.7000 EUR

Extension Spring Buy

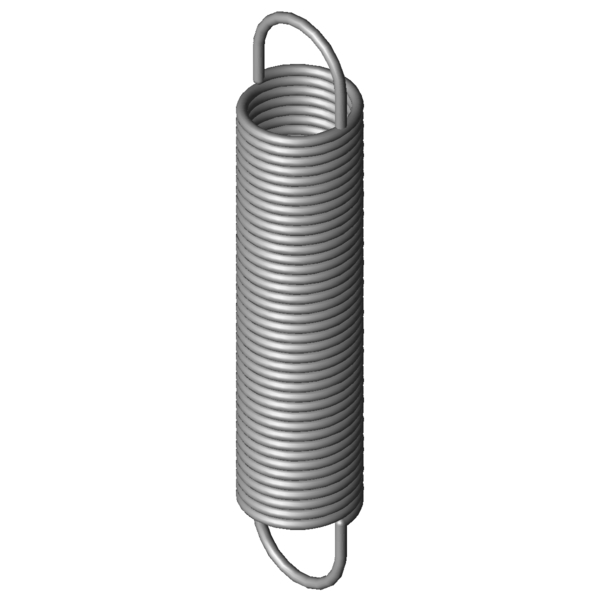

Product image Extension Spring RZ-162U-22I
Product image Extension Spring RZ-162U-22I
Quantity: Add to shopping cart

Technical Data - Extension Spring RZ-162U-22I

Formula symbols Value Unit Description
Material 1.4310 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 3 mm Wire diameter
D mm mean coil diameter
De 32 mm outer coil diameter
Dh 37 mm minimum bush diameter
L0 167 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 124.5 mm length of unstressed spring body
Ln 449.93 mm maximum spring length, inner loop to inner loop
sn 282.93 mm Maximum spring deflection
Fn 219.4 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 21.25 mm distance of inner edge of loop from the spring body
R 0.718 N/mm Spring rate
F0 16.4 N initial tension
Fntol 12.36 N (+/-) tolerance of maximum spring force
L0tol 3 mm (+/-) tolerance of unstressed length
Detol 0.5 mm (+/-) tolerance of outer coil diameter
Oesttol 40 degree (+/-) tolerance of loop position
Weight 215.1422 g weight of one spring
Price group ###ZW - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

force-path-calculation Extension Spring RZ-162U-22I

Inquiry formular Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

Inquiry formular Extension Spring RZ-162U-22I

Similar extension springs to Extension Spring RZ-162U-22I Stainless steel Ø 3 x 32 x 167 mm / 180°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness
RZ-162U-22I 1.4310 3 32 167 219.4 449.93 282.93 0.718 100.0 | 100.0 | 100.0 | 100.0
Z-162U-22I EN 10270-1 3 32 167 265.6 460.39 293.39 0.835 91.7 | 100.0 | 89.5 | 85.7
Number of similar metal springs: 2

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority
article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %
Overall | Geometrie | Load | Stiffness
RZ-150AI 34.5 184 0.195 1.4310 123.5 777.17 593.17 55.9 | 88.9 | 52.0 | 26.8
RZ-147E-23I 30 133 0.242 1.4310 104.3 550.3 417.3 57.4 | 82.2 | 57.7 | 32.2
RZ-150I 34.5 149 0.264 1.4310 123.5 586.95 437.95 61.7 | 88.4 | 60.4 | 36.4
RZ-162E-13I 38 167 0.312 1.4310 158 651.3 484.3 66.6 | 92.5 | 65.2 | 42.1
RZ-147KI 24 166 0.333 1.4310 123.7 514.4 348.4 65.7 | 82.6 | 68.8 | 45.8
RZ-153CI 27.5 193 0.356 1.4310 153.7 594.43 401.43 68.3 | 85.3 | 70.3 | 49.4
RZ-153BI 27.5 173 0.409 1.4310 153.7 522.21 349.21 73.6 | 88.6 | 75.5 | 56.8
RZ-162U-02I 40 158 0.418 1.4310 176.9 559.65 401.65 74.6 | 91.5 | 75.5 | 56.8
RZ-153AI 27.5 156 0.47 1.4310 153.7 459.52 303.52 78.2 | 87.6 | 81.6 | 65.3
RZ-162U-24I 32 206 0.543 1.4310 219.4 579.75 373.75 85.7 | 93.7 | 87.9 | 75.7
RZ-168AI 35.2 199 0.602 1.4310 240.9 574.28 375.28 85.2 | 89.5 | 83.2 | 82.8
RZ-162U-23I 32 185 0.625 1.4310 219.4 509.85 324.85 92.5 | 96.8 | 93.5 | 87.1
RZ-162JI 30 154 0.677 1.4310 193.3 419 265 92.7 | 93.1 | 90.9 | 94.1
RZ-168I 35.2 177 0.709 1.4310 240.9 495.78 318.78 93.5 | 93.0 | 89.9 | 97.5
RZ-162U-22I 32 167 0.718 1.4310 219.4 449.93 282.93 100.0 | 100.0 | 100.0 | 100.0
RZ-162U-21I 32 146 0.867 1.4310 219.4 380.03 234.03 90.0 | 95.8 | 91.4 | 82.7
RZ-162K-02I 25 171 1.014 1.4310 229.9 380.82 209.82 81.8 | 89.7 | 84.8 | 70.8
RZ-162U-20I 32 128 1.057 1.4310 219.4 320.11 192.11 81.4 | 92.2 | 84.0 | 67.9
RZ-171AI 28.2 188 1.263 1.4310 297.5 408.71 220.71 74.5 | 90.2 | 75.9 | 57.5
RZ-177K-03I 32 205 1.442 1.4310 368.5 441.06 236.06 69.8 | 88.3 | 71.5 | 49.7
RZ-171I 28.2 166 1.487 1.4310 297.5 353.49 187.49 70.9 | 93.8 | 70.0 | 48.9
RZ-162U-33I 24 172 1.646 1.4310 287.9 333.59 161.59 67.0 | 90.7 | 66.7 | 43.5
RZ-177K-02I 32 179 1.711 1.4310 368.5 377.93 198.93 66.3 | 92.2 | 64.9 | 41.9
RZ-177K-01I 32 154 2.104 1.4310 368.5 315.8 161.8 61.4 | 91.8 | 58.4 | 34.0
RZ-187I 36 160 2.486 1.4310 443.6 327.42 167.42 56.7 | 86.6 | 54.3 | 29.3
RZ-177K-11I 32 118 3.13 1.4310 368.5 226.7 108.7 52.2 | 84.7 | 49.0 | 22.9
RZ-196I 29 201 3.54 1.4310 542.5 344.35 143.35 49.6 | 82.9 | 45.6 | 20.5
RZ-177OI 25 176 3.796 1.4310 463.3 290.31 114.31 49.5 | 85.4 | 43.9 | 19.1
RZ-195I 29 149 5.213 1.4310 542.5 246.33 97.33 45.4 | 84.9 | 37.4 | 13.9
Number of similar metal springs: 28

Customs tariff number: 73202085; Extension Spring RZ-162U-22I

Country of origin: DE, German; Extension Spring RZ-162U-22I
