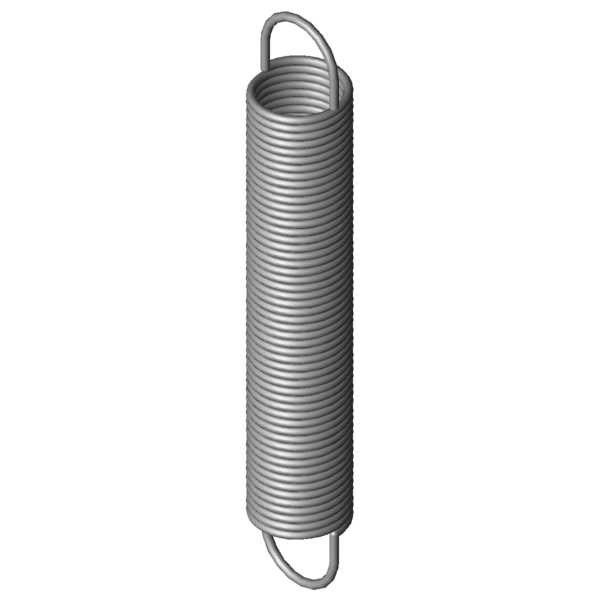

Home » Products » Extension Springs » rz-153bi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° Scaled prices - Extension Spring RZ-153BI Quantity Single price [EUR] 1 7.6800 EUR 2 4.8400 EUR 3 3.9000 EUR 7 3.3200 EUR 17 2.1500 EUR 37 1.6600 EUR 75 1.5600 EUR 125 1.5600 EUR 175 1.5600 EUR 250 1.5600 EUR 350 1.5600 EUR 450 1.5600 EUR Extension Spring Buy Product image Extension Spring RZ-153BI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-153BI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 27.5 mm outer coil diameter Dh 31.7 mm minimum bush diameter L0 173 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 136.25 mm length of unstressed spring body Ln 522.21 mm maximum spring length, inner loop to inner loop sn 349.21 mm Maximum spring deflection Fn 153.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 18.37 mm distance of inner edge of loop from the spring body R 0.409 N/mm Spring rate F0 11 N initial tension Fntol 8.45 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 168.4266 g weight of one spring Price group #ZR - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° force-path-calculation Extension Spring RZ-153BI Inquiry formular Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° Inquiry formular Extension Spring RZ-153BI Similar extension springs to Extension Spring RZ-153BI Stainless steel Ø 2.5 x 27.5 x 173 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-153BI 1.4310 2.5 27.5 173 153.7 522.21 349.21 0.409 100.0 | 100.0 | 100.0 | 100.0 Z-153BI EN 10270-1 2.5 27.5 173 184.9 532.67 359.67 0.476 91.9 | 100.0 | 90.1 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-118DI 21.6 172 0.082 1.4310 56.93 827.8 655.8 48.5 | 80.7 | 45.1 | 19.7 RZ-130E-15I 24 178 0.107 1.4310 73.5 830.7 652.7 53.9 | 85.5 | 50.7 | 25.6 RZ-147E-24I 30 177 0.16 1.4310 104.3 805.7 628.7 64.0 | 92.5 | 61.7 | 37.7 RZ-133AI 27 146 0.167 1.4310 84.86 619.89 473.89 64.2 | 87.5 | 64.5 | 40.7 RZ-136DI 22 170 0.252 1.4310 103.4 552.46 382.46 75.6 | 86.1 | 79.3 | 61.4 RZ-153DI 27.5 213 0.315 1.4310 153.7 666.64 453.64 86.4 | 93.7 | 88.5 | 77.0 RZ-147KI 24 166 0.333 1.4310 123.7 514.4 348.4 87.1 | 90.4 | 90.1 | 80.7 RZ-153CI 27.5 193 0.356 1.4310 153.7 594.43 401.43 92.3 | 96.5 | 93.5 | 87.0 RZ-153BI 27.5 173 0.409 1.4310 153.7 522.21 349.21 100.0 | 100.0 | 100.0 | 100.0 RZ-153AI 27.5 156 0.47 1.4310 153.7 459.52 303.52 92.4 | 96.7 | 93.5 | 86.9 RZ-153I 27.5 138 0.554 1.4310 153.7 395.83 257.83 84.7 | 93.3 | 86.9 | 73.8 RZ-162U-23I 32 185 0.625 1.4310 219.4 509.85 324.85 78.1 | 87.6 | 81.5 | 65.2 RZ-162JI 30 154 0.677 1.4310 193.3 419 265 76.0 | 90.0 | 77.7 | 60.3 RZ-156CI 22.5 185 0.695 1.4310 186.1 432.79 247.79 75.7 | 91.8 | 76.8 | 58.6 RZ-162U-22I 32 167 0.718 1.4310 219.4 449.93 282.93 73.6 | 88.6 | 75.5 | 56.8 RZ-156BI 22.5 165 0.799 1.4310 186.1 380.55 215.55 71.8 | 92.4 | 72.2 | 51.0 RZ-162K-03I 25 199 0.84 1.4310 229.9 452.08 253.08 69.1 | 89.0 | 69.7 | 48.5 RZ-162K-02I 25 171 1.014 1.4310 229.9 380.82 209.82 65.6 | 93.0 | 63.5 | 40.2 RZ-171BI 28.2 210 1.098 1.4310 297.5 463.94 253.94 61.9 | 86.0 | 62.2 | 37.6 RZ-171AI 28.2 188 1.263 1.4310 297.5 408.71 220.71 59.8 | 89.2 | 57.4 | 32.7 RZ-162U-34I 24 193 1.43 1.4310 287.9 378.92 185.92 56.2 | 86.7 | 53.3 | 28.4 RZ-171I 28.2 166 1.487 1.4310 297.5 353.49 187.49 57.0 | 90.5 | 52.7 | 27.7 RZ-162U-33I 24 172 1.646 1.4310 287.9 333.59 161.59 54.8 | 90.0 | 49.8 | 24.7 RZ-177K-02I 32 179 1.711 1.4310 368.5 377.93 198.93 52.4 | 84.0 | 49.3 | 23.8 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring RZ-153BI Country of origin: DE, German; Extension Spring RZ-153BI Product image - Extension Springs RZ-153BI QR-Code: Extension Spring RZ-153BI
