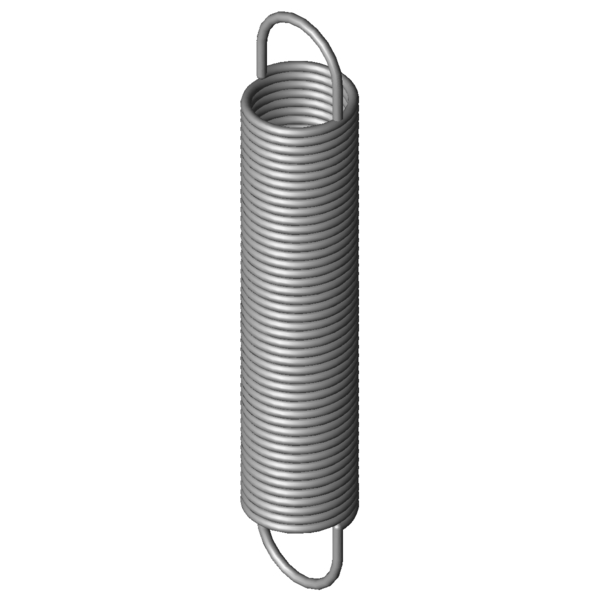

Home » Products » Extension Springs » rz-153ai Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° Scaled prices - Extension Spring RZ-153AI Quantity Single price [EUR] 1 7.5200 EUR 2 4.7400 EUR 3 3.7800 EUR 7 3.2200 EUR 17 1.9500 EUR 37 1.5600 EUR 75 1.4700 EUR 125 1.4700 EUR 175 1.4700 EUR 250 1.4700 EUR 350 1.4700 EUR 450 1.4700 EUR Extension Spring Buy Product image Extension Spring RZ-153AI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-153AI Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 2.5 mm Wire diameter D mm mean coil diameter De 27.5 mm outer coil diameter Dh 31.7 mm minimum bush diameter L0 156 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 118.75 mm length of unstressed spring body Ln 459.52 mm maximum spring length, inner loop to inner loop sn 303.52 mm Maximum spring deflection Fn 153.7 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 18.62 mm distance of inner edge of loop from the spring body R 0.47 N/mm Spring rate F0 11 N initial tension Fntol 8.59 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.45 mm (+/-) tolerance of outer coil diameter Oesttol 44 degree (+/-) tolerance of loop position Weight 147.0875 g weight of one spring Price group #ZQ - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° force-path-calculation Extension Spring RZ-153AI Inquiry formular Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° Inquiry formular Extension Spring RZ-153AI Similar extension springs to Extension Spring RZ-153AI Stainless steel Ø 2.5 x 27.5 x 156 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-153AI 1.4310 2.5 27.5 156 153.7 459.52 303.52 0.47 100.0 | 100.0 | 100.0 | 100.0 Z-153AI EN 10270-1 2.5 27.5 156 184.9 468.61 312.61 0.548 91.9 | 100.0 | 90.1 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-130E-15I 24 178 0.107 1.4310 73.5 830.7 652.7 50.6 | 82.3 | 47.2 | 22.2 RZ-130E-14I 24 143.5 0.141 1.4310 73.5 638.2 494.7 55.9 | 83.8 | 54.6 | 29.3 RZ-147E-24I 30 177 0.16 1.4310 104.3 805.7 628.7 60.0 | 89.3 | 58.1 | 32.8 RZ-133AI 27 146 0.167 1.4310 84.86 619.89 473.89 61.9 | 90.6 | 59.6 | 35.4 RZ-133I 27 118 0.227 1.4310 84.86 467.88 349.88 67.8 | 84.6 | 71.0 | 47.9 RZ-147E-23I 30 133 0.242 1.4310 104.3 550.3 417.3 69.3 | 88.3 | 70.3 | 49.4 RZ-136CI 22 154 0.285 1.4310 103.4 492.44 338.44 75.0 | 86.2 | 78.5 | 60.3 RZ-147KI 24 166 0.333 1.4310 123.7 514.4 348.4 81.2 | 89.7 | 83.8 | 70.1 RZ-153CI 27.5 193 0.356 1.4310 153.7 594.43 401.43 85.7 | 93.6 | 87.8 | 75.6 RZ-153BI 27.5 173 0.409 1.4310 153.7 522.21 349.21 92.4 | 96.7 | 93.5 | 86.9 RZ-153AI 27.5 156 0.47 1.4310 153.7 459.52 303.52 100.0 | 100.0 | 100.0 | 100.0 RZ-153I 27.5 138 0.554 1.4310 153.7 395.83 257.83 91.2 | 96.2 | 92.5 | 84.9 RZ-147K-04I 20 156 0.621 1.4310 147.2 374.11 218.11 81.9 | 86.9 | 83.8 | 75.0 RZ-162JI 30 154 0.677 1.4310 193.3 419 265 82.0 | 93.2 | 83.4 | 69.4 RZ-162U-22I 32 167 0.718 1.4310 219.4 449.93 282.93 78.2 | 87.6 | 81.6 | 65.3 RZ-156BI 22.5 165 0.799 1.4310 186.1 380.55 215.55 75.9 | 92.1 | 76.8 | 58.7 RZ-162U-21I 32 146 0.867 1.4310 219.4 380.03 234.03 71.7 | 87.6 | 73.6 | 54.0 RZ-156AI 22.5 148 0.919 1.4310 186.1 335.35 187.35 71.8 | 92.2 | 72.2 | 51.0 RZ-162K-02I 25 171 1.014 1.4310 229.9 380.82 209.82 68.2 | 90.5 | 68.0 | 46.2 RZ-171AI 28.2 188 1.263 1.4310 297.5 408.71 220.71 62.0 | 86.2 | 62.2 | 37.6 RZ-162K-01I 25 143 1.277 1.4310 229.9 309.56 166.56 62.7 | 90.6 | 60.9 | 36.7 RZ-171I 28.2 166 1.487 1.4310 297.5 353.49 187.49 59.5 | 89.9 | 56.7 | 31.9 RZ-162U-33I 24 172 1.646 1.4310 287.9 333.59 161.59 56.3 | 87.1 | 53.3 | 28.4 RZ-162U-32I 24 154 1.89 1.4310 287.9 294.74 140.74 54.8 | 89.8 | 49.9 | 24.8 RZ-177K-01I 32 154 2.104 1.4310 368.5 315.8 161.8 51.5 | 84.7 | 47.5 | 22.2 RZ-162U-31I 24 133 2.284 1.4310 287.9 249.42 116.42 50.5 | 85.3 | 45.9 | 20.5 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring RZ-153AI Country of origin: DE, German; Extension Spring RZ-153AI Product image - Extension Springs RZ-153AI QR-Code: Extension Spring RZ-153AI
