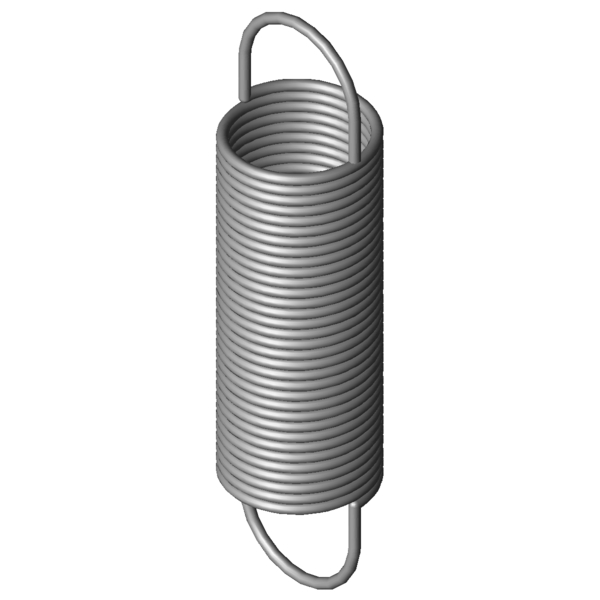

Home » Products » Extension Springs » rz-162u-02i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° Scaled prices - Extension Spring RZ-162U-02I Quantity Single price [EUR] 1 8.0100 EUR 2 5.0500 EUR 3 4.1300 EUR 7 3.5200 EUR 17 3.5200 EUR 37 3.5200 EUR 75 3.5200 EUR 125 3.5200 EUR 175 3.5200 EUR 250 3.5200 EUR 350 3.5200 EUR 450 3.5200 EUR Extension Spring Buy Product image Extension Spring RZ-162U-02I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring RZ-162U-02I Formula symbols Value Unit Description Material 1.4310 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 45.1 mm minimum bush diameter L0 158 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 103.5 mm length of unstressed spring body Ln 559.65 mm maximum spring length, inner loop to inner loop sn 401.65 mm Maximum spring deflection Fn 176.9 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 27.25 mm distance of inner edge of loop from the spring body R 0.418 N/mm Spring rate F0 9.2 N initial tension Fntol 10.85 N (+/-) tolerance of maximum spring force L0tol 2.4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 43 degree (+/-) tolerance of loop position Weight 229.0138 g weight of one spring Price group ###ZT - price group Technical drawing Extension Spring Datasheet Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° force-path-calculation Extension Spring RZ-162U-02I Inquiry formular Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° Inquiry formular Extension Spring RZ-162U-02I Similar extension springs to Extension Spring RZ-162U-02I Stainless steel Ø 3 x 40 x 158 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness RZ-162U-02I 1.4310 3 40 158 176.9 559.65 401.65 0.418 100.0 | 100.0 | 100.0 | 100.0 Z-162U-02I EN 10270-1 3 40 158 214.2 574.86 416.86 0.486 91.7 | 100.0 | 89.5 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness RZ-147E-24I 30 177 0.16 1.4310 104.3 805.7 628.7 59.4 | 79.2 | 61.4 | 37.7 RZ-150AI 34.5 184 0.195 1.4310 123.5 777.17 593.17 67.1 | 85.2 | 68.8 | 47.3 RZ-150I 34.5 149 0.264 1.4310 123.5 586.95 437.95 77.6 | 88.0 | 80.8 | 64.0 RZ-162U-04I 40 197 0.301 1.4310 176.9 754.52 557.52 83.8 | 93.4 | 86.0 | 72.0 RZ-162E-13I 38 167 0.312 1.4310 158 651.3 484.3 84.8 | 94.3 | 86.1 | 74.1 RZ-162U-03I 40 179 0.345 1.4310 176.9 664.58 485.58 90.1 | 96.1 | 91.4 | 82.7 RZ-165I 43.2 190 0.363 1.4310 197.7 708.71 518.71 86.6 | 89.8 | 83.5 | 86.5 RZ-162U-02I 40 158 0.418 1.4310 176.9 559.65 401.65 100.0 | 100.0 | 100.0 | 100.0 RZ-153AI 27.5 156 0.47 1.4310 153.7 459.52 303.52 83.9 | 83.6 | 81.2 | 87.0 RZ-162E-12I 38 126 0.503 1.4310 158 426.4 300.4 63.6 | 86.4 | 64.3 | 40.1 RZ-162U-01I 40 140 0.509 1.4310 176.9 469.72 329.72 66.0 | 93.1 | 64.1 | 40.9 RZ-164I 43.2 142 0.585 1.4310 197.7 463.73 321.73 69.4 | 92.9 | 68.5 | 46.8 RZ-162U-23I 32 185 0.625 1.4310 219.4 509.85 324.85 78.1 | 88.5 | 80.8 | 65.2 RZ-162JI 30 154 0.677 1.4310 193.3 419 265 71.1 | 82.5 | 75.3 | 55.6 RZ-168I 35.2 177 0.709 1.4310 240.9 495.78 318.78 73.4 | 86.5 | 76.0 | 57.6 RZ-162U-22I 32 167 0.718 1.4310 219.4 449.93 282.93 73.2 | 83.6 | 76.9 | 59.1 RZ-177JI 40 200 0.771 1.4310 298 566.13 366.13 78.0 | 91.0 | 81.0 | 62.0 RZ-162U-21I 32 146 0.867 1.4310 219.4 380.03 234.03 81.5 | 87.8 | 85.3 | 71.4 RZ-162U-10I 40 101 0.965 1.4310 176.9 274.8 173.8 76.6 | 84.2 | 67.9 | 77.6 RZ-167I 35.2 129 1.143 1.4310 240.9 326.73 197.73 88.4 | 88.4 | 84.0 | 92.8 RZ-177HI 40 146 1.244 1.4310 298 373.09 227.09 100.0 | 100.0 | 100.0 | 100.0 RZ-179I 44 173 1.273 1.4310 366.5 445.61 272.61 89.4 | 88.4 | 82.3 | 97.6 RZ-171I 28.2 166 1.487 1.4310 297.5 353.49 187.49 55.8 | 86.5 | 53.1 | 27.8 Number of similar metal springs: 22 Customs tariff number: 73202085; Extension Spring RZ-162U-02I Country of origin: DE, German; Extension Spring RZ-162U-02I Product image - Extension Springs RZ-162U-02I QR-Code: Extension Spring RZ-162U-02I
