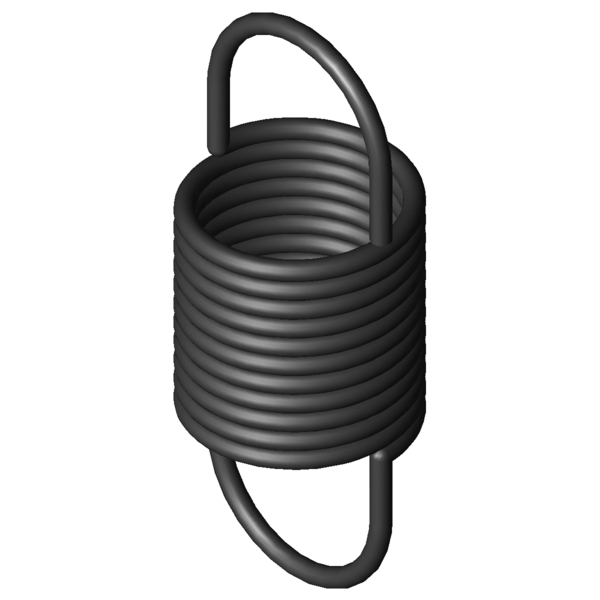

Home » Products » Extension Springs » z-166i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° Scaled prices - Extension Spring Z-166I Quantity Single price [EUR] 1 6.7100 EUR 2 4.2300 EUR 3 3.0800 EUR 7 2.6300 EUR 17 2.6300 EUR 37 2.6300 EUR 75 2.6300 EUR 125 2.6300 EUR 175 2.6300 EUR 250 2.6300 EUR 350 2.6300 EUR 450 2.6300 EUR Extension Spring Buy Product image Extension Spring Z-166I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-166I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 35.2 mm outer coil diameter Dh 40.6 mm minimum bush diameter L0 87.6 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 40 mm length of unstressed spring body Ln 183.49 mm maximum spring length, inner loop to inner loop sn 95.89 mm Maximum spring deflection Fn 290.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 23.8 mm distance of inner edge of loop from the spring body R 2.835 N/mm Spring rate F0 18.77 N initial tension Fntol 18.34 N (+/-) tolerance of maximum spring force L0tol 1.8 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 22 degree (+/-) tolerance of loop position Weight 84.7 g weight of one spring Price group ###ZL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° force-path-calculation Extension Spring Z-166I Inquiry formular Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° Inquiry formular Extension Spring Z-166I Similar extension springs to Extension Spring Z-166I Spring steel Ø 3.2 x 35.2 x 87.6 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-166I EN 10270-1 3.2 35.2 87.6 290.5 183.49 95.89 2.835 100.0 | 100.0 | 100.0 | 100.0 RZ-166I 1.4310 3.2 35.2 87.6 240.9 180.41 92.81 2.435 91.8 | 100.0 | 89.9 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-132I 27 78.8 0.535 EN 10270-1 101.2 255.15 176.35 46.6 | 76.4 | 44.6 | 18.9 Z-147E-21I 30 82.3 0.717 EN 10270-1 118 239.8 157.5 52.7 | 82.6 | 50.8 | 24.7 Z-162E-11I 38 100.5 0.93 EN 10270-1 180 286 185.5 59.3 | 89.1 | 56.8 | 32.0 Z-147HI 24 88.6 0.94 EN 10270-1 148 235.65 147.05 56.6 | 78.6 | 58.1 | 33.2 Z-152I 27.5 101 1.04 EN 10270-1 184.9 265.71 164.71 59.7 | 81.0 | 60.9 | 37.1 Z-148I 34.5 79.7 1.056 EN 10270-1 148.5 211.03 131.33 62.8 | 89.0 | 62.1 | 37.3 Z-162U-10I 40 101 1.12 EN 10270-1 214.2 281.4 180.4 64.0 | 89.5 | 63.4 | 39.2 Z-147E-20I 30 67 1.169 EN 10270-1 118 163.6 96.6 62.4 | 76.8 | 69.9 | 40.3 Z-163I 43.2 100 1.451 EN 10270-1 238.4 256.13 156.13 70.6 | 89.7 | 71.7 | 50.4 Z-162E-10I 38 83.5 1.51 EN 10270-1 180 197.2 113.7 72.4 | 91.8 | 73.1 | 52.3 Z-162U-19I 32 108 1.65 EN 10270-1 265.6 256.5 148.5 75.2 | 88.6 | 78.0 | 59.0 Z-162GI 30 86.6 2.008 EN 10270-1 233.4 194.03 107.43 82.3 | 90.5 | 84.8 | 71.7 Z-166AI 35.2 90.8 2.608 EN 10270-1 290.5 195.02 104.22 95.6 | 98.8 | 96.0 | 92.0 Z-162U-18I 32 83.5 2.7 EN 10270-1 265.6 174 90.5 94.4 | 93.3 | 92.9 | 96.9 Z-166I 35.2 87.6 2.835 EN 10270-1 290.5 183.49 95.89 100.0 | 100.0 | 100.0 | 100.0 Z-162FI 30 69.8 3.275 EN 10270-1 233.4 135.65 65.85 81.4 | 84.1 | 74.5 | 85.5 Z-177FI 40 92.1 3.735 EN 10270-1 357.1 182.48 90.38 85.0 | 90.7 | 87.8 | 76.7 Z-162U-29I 24 94 4.35 EN 10270-1 348.5 167.9 73.9 76.5 | 85.0 | 80.2 | 64.2 Z-186I 36 104 5.896 EN 10270-1 528.1 187.76 83.76 68.9 | 87.3 | 71.2 | 48.0 Z-169I 28.2 76.4 5.945 EN 10270-1 358.7 132.8 56.4 68.9 | 89.1 | 69.9 | 47.6 Z-177K-10I 32 89 5.98 EN 10270-1 441.6 157 68 69.2 | 92.7 | 68.3 | 46.7 Z-216HI 40 110 7.47 EN 10270-1 658.2 190.6 80.6 60.3 | 79.6 | 64.1 | 37.1 Z-177MI 25 89.7 11.264 EN 10270-1 555.1 135.72 46.02 53.7 | 85.9 | 50.2 | 25.1 Z-194I 29 93.6 12.364 EN 10270-1 645.8 142.28 48.68 52.0 | 85.3 | 47.9 | 22.8 Z-223HI 30 94 20.15 EN 10270-1 858.7 133 39 44.7 | 83.2 | 37.3 | 13.8 Z-202I 24 85.6 24.148 EN 10270-1 765.7 114.47 28.87 42.5 | 82.0 | 34.0 | 11.4 Z-253HI 30 100 32.6 EN 10270-1 1134 131.4 31.4 38.8 | 78.9 | 29.2 | 8.4 Z-230HI 25 87 38.79 EN 10270-1 1008 110.2 23.2 38.0 | 80.5 | 26.5 | 7.0 Number of similar metal springs: 27 Customs tariff number: 73202085; Extension Spring Z-166I Country of origin: DE, German; Extension Spring Z-166I Product image - Extension Springs Z-166I QR-Code: Extension Spring Z-166I
