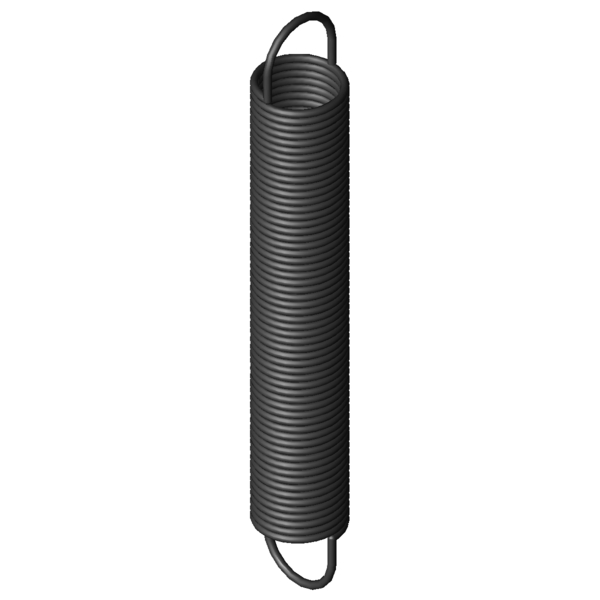

Home » Products » Extension Springs » z-177kx Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° Scaled prices - Extension Spring Z-177KX Quantity Single price [EUR] 1 14.5700 EUR 2 11.6100 EUR 3 7.2800 EUR 7 5.4200 EUR 17 5.4200 EUR 37 5.4200 EUR 75 5.4200 EUR 125 5.4200 EUR 175 5.4200 EUR 250 5.4200 EUR 350 5.4200 EUR Extension Spring Buy Product image Extension Spring Z-177KX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-177KX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.6 mm Wire diameter D mm mean coil diameter De 40 mm outer coil diameter Dh 46 mm minimum bush diameter L0 272 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 218.7 mm length of unstressed spring body Ln 840.44 mm maximum spring length, inner loop to inner loop sn 568.44 mm Maximum spring deflection Fn 357.1 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 26.65 mm distance of inner edge of loop from the spring body R 0.594 N/mm Spring rate F0 19.6 N initial tension Fntol 16.54 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 50 degree (+/-) tolerance of loop position Weight 566.03 g weight of one spring Price group ###AL - price group Technical drawing Extension Spring Datasheet Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° force-path-calculation Extension Spring Z-177KX Inquiry formular Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° Inquiry formular Extension Spring Z-177KX Similar extension springs to Extension Spring Z-177KX Spring steel Ø 3.6 x 40 x 272 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-177KX EN 10270-1 3.6 40 272 357.1 840.44 568.44 0.594 100.0 | 100.0 | 100.0 | 100.0 RZ-177KX 1.4310 3.6 40 272 298 825.83 553.83 0.51 92.0 | 100.0 | 90.4 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-162U-07X 40 266 0.234 EN 10270-1 214.2 1133.94 867.94 65.2 | 93.7 | 62.7 | 39.3 Z-162E-14X 38 223 0.24 EN 10270-1 180 938 715 63.3 | 84.9 | 65.0 | 40.1 Z-162U-06X 40 242 0.264 EN 10270-1 214.2 1010.39 768.39 67.4 | 90.8 | 67.0 | 44.4 Z-162U-05X 40 218 0.303 EN 10270-1 214.2 886.84 668.84 70.4 | 87.8 | 72.5 | 51.0 Z-165AX 43.2 234 0.311 EN 10270-1 238.4 963.73 729.73 71.2 | 89.2 | 72.3 | 52.0 Z-168EX 35.2 298 0.419 EN 10270-1 290.5 946.27 648.27 81.7 | 89.4 | 84.5 | 71.3 Z-168DX 35.2 273 0.467 EN 10270-1 290.5 854.57 581.57 87.1 | 92.2 | 89.5 | 79.5 Z-168CX 35.2 247 0.528 EN 10270-1 290.5 761.87 514.87 88.3 | 89.2 | 86.0 | 89.8 Z-177KX 40 272 0.594 EN 10270-1 357.1 840.44 568.44 100.0 | 100.0 | 100.0 | 100.0 Z-183X 44 309 0.66 EN 10270-1 436.3 932.93 623.93 88.7 | 89.6 | 86.5 | 89.8 Z-182X 44 277 0.758 EN 10270-1 436.3 820.2 543.2 86.7 | 93.0 | 88.7 | 78.2 Z-181X 44 249 0.872 EN 10270-1 436.3 721.46 472.46 80.4 | 90.8 | 82.5 | 68.0 Z-191X 36 296 1.289 EN 10270-1 528.1 679.13 383.13 67.9 | 90.6 | 67.5 | 45.6 Z-190X 36 264 1.481 EN 10270-1 528.1 597.5 333.5 65.1 | 92.4 | 63.1 | 39.7 Z-222X 40 331 1.512 EN 10270-1 658.2 728.95 397.95 62.5 | 87.4 | 62.1 | 38.0 Z-189X 36 236 1.702 EN 10270-1 528.1 526.07 290.07 60.9 | 88.9 | 59.3 | 34.5 Z-221X 40 296 1.737 EN 10270-1 658.2 642.39 346.39 60.4 | 90.6 | 57.6 | 33.1 Z-220X 40 265 1.997 EN 10270-1 658.2 566.28 301.28 58.3 | 92.5 | 53.6 | 28.8 Z-219X 40 237 2.291 EN 10270-1 658.2 499.61 262.61 54.8 | 89.0 | 50.2 | 25.1 Z-251X 40 323 2.763 EN 10270-1 873.5 612.02 289.02 50.7 | 85.4 | 45.9 | 20.8 Z-218X 40 206 2.767 EN 10270-1 658.2 423.5 217.5 50.8 | 85.2 | 46.3 | 20.8 Z-250X 40 288 3.177 EN 10270-1 873.5 539.38 251.38 49.8 | 88.8 | 42.6 | 18.1 Z-249X 40 258 3.644 EN 10270-1 873.5 477.12 219.12 48.1 | 89.0 | 39.7 | 15.8 Z-248X 40 223 4.4 EN 10270-1 873.5 404.48 181.48 44.7 | 84.7 | 36.4 | 13.1 Number of similar metal springs: 23 Customs tariff number: 73202085; Extension Spring Z-177KX Country of origin: DE, German; Extension Spring Z-177KX Product image - Extension Springs Z-177KX QR-Code: Extension Spring Z-177KX
