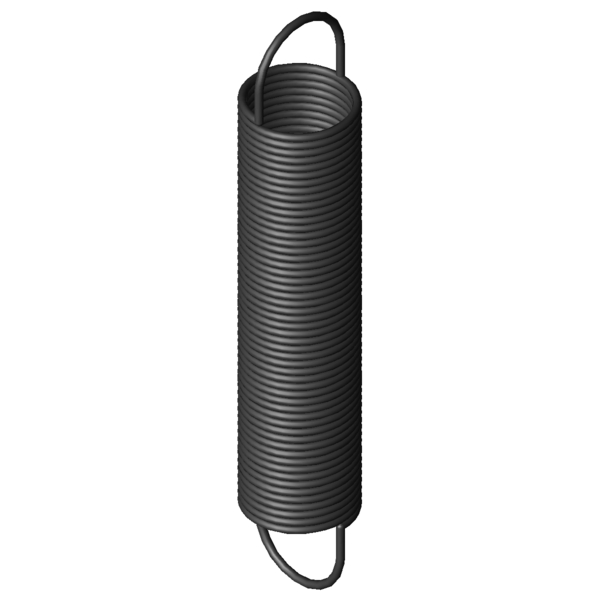

Home » Products » Extension Springs » z-165ax Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° Scaled prices - Extension Spring Z-165AX Quantity Single price [EUR] 1 12.4800 EUR 2 9.9500 EUR 3 5.4200 EUR 7 3.2800 EUR 17 3.2800 EUR 37 3.2800 EUR 75 3.2800 EUR 125 3.2800 EUR 175 3.2800 EUR 250 3.2800 EUR 350 3.2800 EUR Extension Spring Buy Product image Extension Spring Z-165AX Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-165AX Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 234 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 175.2 mm length of unstressed spring body Ln 963.73 mm maximum spring length, inner loop to inner loop sn 729.73 mm Maximum spring deflection Fn 238.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29.4 mm distance of inner edge of loop from the spring body R 0.311 N/mm Spring rate F0 11.88 N initial tension Fntol 11.89 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 55 degree (+/-) tolerance of loop position Weight 443.52 g weight of one spring Price group ###AB - price group Technical drawing Extension Spring Datasheet Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° force-path-calculation Extension Spring Z-165AX Inquiry formular Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° Inquiry formular Extension Spring Z-165AX Similar extension springs to Extension Spring Z-165AX Spring steel Ø 3.2 x 43.2 x 234 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-165AX EN 10270-1 3.2 43.2 234 238.4 963.73 729.73 0.311 100.0 | 100.0 | 100.0 | 100.0 RZ-165AX 1.4310 3.2 43.2 234 197.7 939.84 705.84 0.267 91.9 | 100.0 | 89.8 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-162U-07X 40 266 0.234 EN 10270-1 214.2 1133.94 867.94 84.6 | 91.4 | 87.0 | 75.5 Z-162E-14X 38 223 0.24 EN 10270-1 180 938 715 84.7 | 90.3 | 86.7 | 77.1 Z-162U-06X 40 242 0.264 EN 10270-1 214.2 1010.39 768.39 90.7 | 94.3 | 92.4 | 85.3 Z-162U-05X 40 218 0.303 EN 10270-1 214.2 886.84 668.84 94.0 | 93.2 | 90.8 | 98.0 Z-165AX 43.2 234 0.311 EN 10270-1 238.4 963.73 729.73 100.0 | 100.0 | 100.0 | 100.0 Z-162U-04X 40 197 0.348 EN 10270-1 214.2 778.74 581.74 87.9 | 90.2 | 84.8 | 88.7 Z-165X 43.2 190 0.42 EN 10270-1 238.4 729.66 539.66 84.9 | 93.7 | 87.0 | 74.0 Z-168CX 35.2 247 0.528 EN 10270-1 290.5 761.87 514.87 75.4 | 92.1 | 76.3 | 57.9 Z-177KX 40 272 0.594 EN 10270-1 357.1 840.44 568.44 71.2 | 89.2 | 72.3 | 52.0 Z-168BX 35.2 222 0.607 EN 10270-1 290.5 670.16 448.16 71.4 | 92.1 | 71.7 | 50.4 Z-182X 44 277 0.758 EN 10270-1 436.3 820.2 543.2 64.3 | 87.6 | 64.5 | 40.7 Z-181X 44 249 0.872 EN 10270-1 436.3 721.46 472.46 61.9 | 90.7 | 59.7 | 35.4 Z-177JX 40 200 0.893 EN 10270-1 357.1 578.17 378.17 61.0 | 89.0 | 59.3 | 34.6 Z-180X 44 225 1 EN 10270-1 436.3 636.82 411.82 59.3 | 91.4 | 55.5 | 30.8 Z-212X 50 254 1.088 EN 10270-1 532.3 717.42 463.42 55.3 | 83.2 | 54.1 | 28.4 Z-211X 50 222 1.314 EN 10270-1 532.3 605.81 383.81 52.1 | 84.1 | 48.7 | 23.6 Z-189X 36 236 1.702 EN 10270-1 528.1 526.07 290.07 49.3 | 87.5 | 42.4 | 17.9 Z-220X 40 265 1.997 EN 10270-1 658.2 566.28 301.28 45.9 | 84.0 | 38.8 | 15.0 Z-241X 50 238 2.07 EN 10270-1 707.9 557.23 319.23 45.5 | 82.9 | 38.7 | 14.7 Z-219X 40 237 2.291 EN 10270-1 658.2 499.61 262.61 45.5 | 87.5 | 36.1 | 13.0 Number of similar metal springs: 19 Customs tariff number: 73202085; Extension Spring Z-165AX Country of origin: DE, German; Extension Spring Z-165AX Product image - Extension Springs Z-165AX QR-Code: Extension Spring Z-165AX
