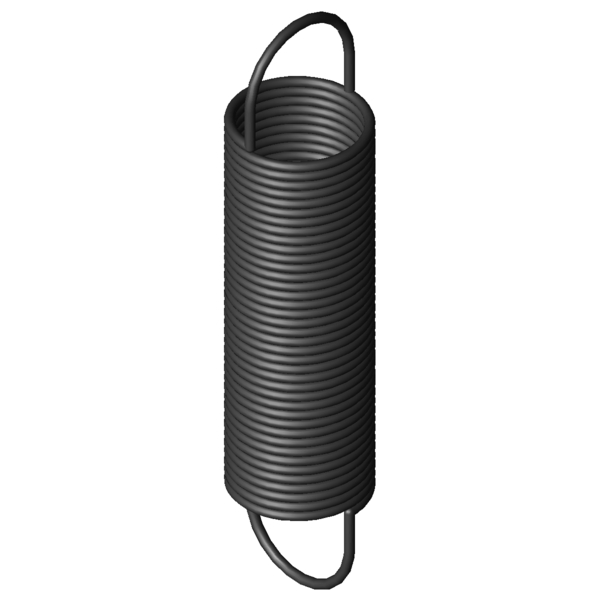

Home » Products » Extension Springs » z-165x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° Scaled prices - Extension Spring Z-165X Quantity Single price [EUR] 1 8.2300 EUR 2 5.1800 EUR 3 4.2100 EUR 7 3.5900 EUR 17 3.5900 EUR 37 3.5900 EUR 75 3.5900 EUR 125 3.5900 EUR 175 3.5900 EUR 250 3.5900 EUR 350 3.5900 EUR 450 3.5900 EUR Extension Spring Buy Product image Extension Spring Z-165X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-165X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 3.2 mm Wire diameter D mm mean coil diameter De 43.2 mm outer coil diameter Dh 48.6 mm minimum bush diameter L0 190 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 130.4 mm length of unstressed spring body Ln 729.66 mm maximum spring length, inner loop to inner loop sn 539.66 mm Maximum spring deflection Fn 238.4 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29.8 mm distance of inner edge of loop from the spring body R 0.42 N/mm Spring rate F0 11.88 N initial tension Fntol 12.38 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 47 degree (+/-) tolerance of loop position Weight 331.64 g weight of one spring Price group ###ZU - price group Technical drawing Extension Spring Datasheet Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° force-path-calculation Extension Spring Z-165X Inquiry formular Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° Inquiry formular Extension Spring Z-165X Similar extension springs to Extension Spring Z-165X Spring steel Ø 3.2 x 43.2 x 190 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-165X EN 10270-1 3.2 43.2 190 238.4 729.66 539.66 0.42 100.0 | 100.0 | 100.0 | 100.0 RZ-165X 1.4310 3.2 43.2 190 197.7 711.99 521.99 0.361 91.9 | 100.0 | 89.8 | 85.7 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-150AX 34.5 184 0.226 EN 10270-1 148.5 797.83 613.83 71.6 | 84.9 | 75.1 | 54.8 Z-162U-05X 40 218 0.303 EN 10270-1 214.2 886.84 668.84 83.0 | 91.2 | 85.3 | 72.5 Z-165AX 43.2 234 0.311 EN 10270-1 238.4 963.73 729.73 84.9 | 93.7 | 87.0 | 74.0 Z-162U-04X 40 197 0.348 EN 10270-1 214.2 778.74 581.74 89.6 | 94.3 | 91.3 | 83.3 Z-162E-13X 38 167 0.36 EN 10270-1 180 642.7 475.7 85.1 | 87.8 | 81.8 | 85.7 Z-162U-03X 40 179 0.4 EN 10270-1 214.2 686.08 507.08 93.7 | 93.5 | 91.9 | 95.6 Z-165X 43.2 190 0.42 EN 10270-1 238.4 729.66 539.66 100.0 | 100.0 | 100.0 | 100.0 Z-162U-02X 40 158 0.483 EN 10270-1 214.2 577.97 419.97 86.8 | 89.8 | 83.8 | 86.6 Z-164X 43.2 142 0.674 EN 10270-1 238.4 478.02 336.02 78.3 | 91.6 | 81.1 | 62.3 Z-168AX 35.2 199 0.697 EN 10270-1 290.5 588.8 389.8 76.2 | 92.3 | 77.1 | 59.3 Z-168X 35.2 177 0.82 EN 10270-1 290.5 508.43 331.43 71.2 | 91.5 | 71.7 | 50.4 Z-177JX 40 200 0.893 EN 10270-1 357.1 578.17 378.17 69.1 | 92.2 | 68.4 | 46.8 Z-180X 44 225 1 EN 10270-1 436.3 636.82 411.82 64.9 | 87.5 | 65.5 | 41.7 Z-179X 44 173 1.466 EN 10270-1 436.3 453.44 280.44 57.1 | 89.7 | 53.3 | 28.4 Z-210X 50 195 1.598 EN 10270-1 532.3 510.58 315.58 54.3 | 85.0 | 51.6 | 26.2 Z-188X 36 212 1.953 EN 10270-1 528.1 464.84 252.84 50.5 | 84.3 | 46.0 | 21.2 Z-178AX 44 145 1.96 EN 10270-1 436.3 354.7 209.7 50.9 | 84.8 | 46.7 | 21.2 Z-240X 50 208 2.518 EN 10270-1 707.9 470.48 262.48 46.0 | 80.6 | 41.2 | 16.4 Z-218X 40 206 2.767 EN 10270-1 658.2 423.5 217.5 46.1 | 85.3 | 38.3 | 14.6 Z-239AX 50 172 3.36 EN 10270-1 707.9 368.3 196.3 42.5 | 80.3 | 35.0 | 12.2 Z-217X 40 179 3.365 EN 10270-1 658.2 357.83 178.83 44.2 | 86.0 | 34.7 | 12.0 Z-248X 40 223 4.4 EN 10270-1 873.5 404.48 181.48 40.1 | 80.6 | 30.5 | 9.2 Number of similar metal springs: 21 Customs tariff number: 73202085; Extension Spring Z-165X Country of origin: DE, German; Extension Spring Z-165X Product image - Extension Springs Z-165X QR-Code: Extension Spring Z-165X
