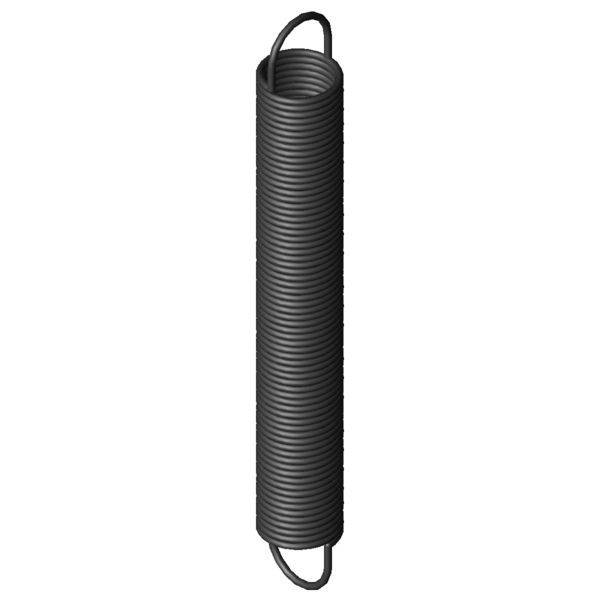

Home » Products » Extension Springs » z-184x Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° Scaled prices - Extension Spring Z-184X Quantity Single price [EUR] 1 16.3800 EUR 2 13.0500 EUR 3 9.0700 EUR 7 7.2200 EUR 17 7.2200 EUR 37 7.2200 EUR 75 7.2200 EUR 125 7.2200 EUR 175 7.2200 EUR 250 7.2200 EUR 350 7.2200 EUR Extension Spring Buy Product image Extension Spring Z-184X Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-184X Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 270 ° Eyelet position d 4 mm Wire diameter D mm mean coil diameter De 44 mm outer coil diameter Dh 50.6 mm minimum bush diameter L0 341 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 283 mm length of unstressed spring body Ln 1045.9 mm maximum spring length, inner loop to inner loop sn 704.9 mm Maximum spring deflection Fn 436.3 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 29 mm distance of inner edge of loop from the spring body R 0.584 N/mm Spring rate F0 24.5 N initial tension Fntol 19.8 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 0.6 mm (+/-) tolerance of outer coil diameter Oesttol 54 degree (+/-) tolerance of loop position Weight 892.7797 g weight of one spring Price group ###AR - price group Technical drawing Extension Spring Datasheet Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° Datasheet download pdf file Metal spring characteristic Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° Metal spring characteristic download pdf file CAD data Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° force-path-calculation Extension Spring Z-184X Inquiry formular Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° Inquiry formular Extension Spring Z-184X Similar extension springs to Extension Spring Z-184X Spring steel Ø 4 x 44 x 341 mm / 270° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-184X EN 10270-1 4 44 341 436.3 1045.9 704.9 0.584 100.0 | 100.0 | 100.0 | 100.0 RZ-184X 1.4310 4 44 341 366.5 1032.43 691.43 0.502 92.2 | 100.0 | 91.0 | 85.6 Number of similar metal springs: 2 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-185X 44 373 0.524 EN 10270-1 436.3 1158.75 785.75 93.9 | 97.1 | 94.9 | 89.7 Z-184X 44 341 0.584 EN 10270-1 436.3 1045.9 704.9 100.0 | 100.0 | 100.0 | 100.0 Z-216X 50 384 0.636 EN 10270-1 532.3 1177.21 793.21 88.7 | 88.6 | 85.4 | 92.2 Z-183X 44 309 0.66 EN 10270-1 436.3 932.93 623.93 93.2 | 96.9 | 94.3 | 88.5 Z-215X 50 348 0.718 EN 10270-1 532.3 1050.23 702.23 88.0 | 91.6 | 90.8 | 81.7 Z-182X 44 277 0.758 EN 10270-1 436.3 820.2 543.2 86.4 | 93.7 | 88.5 | 77.1 Z-214X 50 312 0.825 EN 10270-1 532.3 923.26 611.26 81.6 | 89.5 | 84.3 | 71.1 Z-193X 36 360 1.024 EN 10270-1 528.1 842.86 482.86 74.8 | 92.2 | 75.6 | 56.6 Z-245X 50 378 1.132 EN 10270-1 707.9 962.08 584.08 69.8 | 86.1 | 72.2 | 51.1 Z-192X 36 328 1.141 EN 10270-1 528.1 760.77 432.77 71.8 | 92.7 | 72.0 | 50.7 Z-244X 50 338 1.3 EN 10270-1 707.9 846.41 508.41 66.8 | 89.0 | 66.9 | 44.5 Z-223X 40 368 1.339 EN 10270-1 658.2 817.5 449.5 66.0 | 90.8 | 65.0 | 42.3 Z-243X 50 304 1.495 EN 10270-1 707.9 746.2 442.2 62.2 | 85.7 | 62.2 | 38.7 Z-222X 40 331 1.512 EN 10270-1 658.2 728.95 397.95 63.7 | 92.3 | 61.4 | 37.4 Z-221X 40 296 1.737 EN 10270-1 658.2 642.39 346.39 59.7 | 88.9 | 57.7 | 32.6 Z-281X 50 364 1.968 EN 10270-1 921.2 791.45 427.45 55.8 | 84.8 | 54.0 | 28.7 Z-280X 50 326 2.263 EN 10270-1 921.2 697.78 371.78 53.5 | 85.4 | 50.1 | 25.0 Number of similar metal springs: 16 Customs tariff number: 73202085; Extension Spring Z-184X Country of origin: DE, German; Extension Spring Z-184X Product image - Extension Springs Z-184X QR-Code: Extension Spring Z-184X
