Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

Scaled prices - Extension Spring Z-280X

Quantity	Single price [EUR]
1	17.9400 EUR
2	14.2900 EUR
3	10.3300 EUR
7	8.7500 EUR
17	8.7500 EUR
37	8.7500 EUR
75	8.7500 EUR
125	8.7500 EUR
175	8.7500 EUR
250	8.7500 EUR
350	8.7500 EUR

Extension Spring Buy

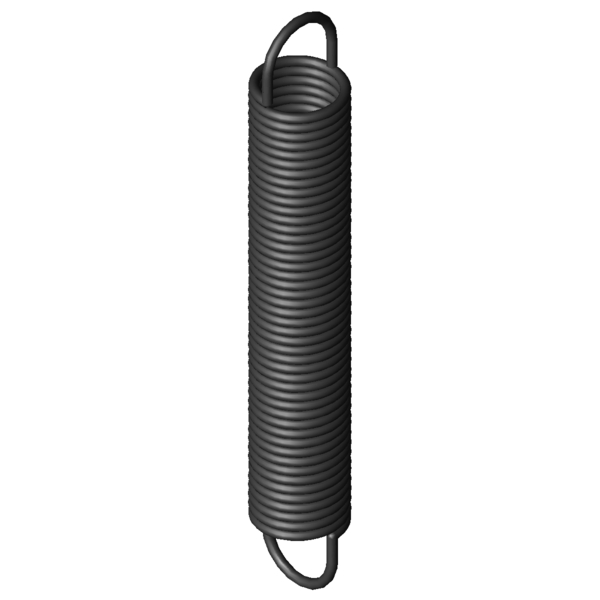

Product image Extension Spring Z-280X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-280X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	5.5	mm	Wire diameter
D		mm	mean coil diameter
De	50	mm	outer coil diameter
Dh	59.1	mm	minimum bush diameter
L0	326	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	262.63	mm	length of unstressed spring body
Ln	697.78	mm	maximum spring length, inner loop to inner loop
sn	371.78	mm	Maximum spring deflection
Fn	921.2	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	31.68	mm	distance of inner edge of loop from the spring body
R	2.263	N/mm	Spring rate
F0	80	N	initial tension
Fntol	43.98	N	(+/-) tolerance of maximum spring force
L0tol	4	mm	(+/-) tolerance of unstressed length
Detol	0.8	mm	(+/-) tolerance of outer coil diameter
Oesttol	40	degree	(+/-) tolerance of loop position
Weight	1273.7775	g	weight of one spring
Price group	###AW	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

force-path-calculation Extension Spring Z-280X

Inquiry formular Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

Inquiry formular Extension Spring Z-280X

Similar extension springs to Extension Spring Z-280X Spring steel Ø 5.5 x 50 x 326 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-280X	EN 10270-1	5.5	50	326	921.2	697.78	371.78	2.263	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-184X	44	341	0.584	EN 10270-1	436.3	1045.9	704.9	53.5 \| 85.4 \| 50.1 \| 25.0
Z-216X	50	384	0.636	EN 10270-1	532.3	1177.21	793.21	56.1 \| 88.9 \| 52.3 \| 27.1
Z-183X	44	309	0.66	EN 10270-1	436.3	932.93	623.93	55.6 \| 85.2 \| 53.5 \| 28.2
Z-215X	50	348	0.718	EN 10270-1	532.3	1050.23	702.23	59.3 \| 91.8 \| 55.4 \| 30.6
Z-238GX	60	318	0.82	EN 10270-1	585	999.6	681.6	61.4 \| 90.6 \| 59.0 \| 34.6
Z-214X	50	312	0.825	EN 10270-1	532.3	923.26	611.26	62.3 \| 92.5 \| 59.3 \| 35.1
Z-213X	50	282	0.949	EN 10270-1	532.3	813.65	531.65	64.6 \| 89.4 \| 63.9 \| 40.4
Z-212X	50	254	1.088	EN 10270-1	532.3	717.42	463.42	67.3 \| 86.6 \| 69.0 \| 46.4
Z-245X	50	378	1.132	EN 10270-1	707.9	962.08	584.08	70.5 \| 92.4 \| 70.2 \| 48.9
Z-244X	50	338	1.3	EN 10270-1	707.9	846.41	508.41	75.7 \| 95.8 \| 75.0 \| 56.2
Z-243X	50	304	1.495	EN 10270-1	707.9	746.2	442.2	79.9 \| 94.7 \| 80.5 \| 64.6
Z-222X	40	331	1.512	EN 10270-1	658.2	728.95	397.95	78.7 \| 86.8 \| 82.4 \| 66.8
Z-242X	50	274	1.715	EN 10270-1	707.9	659.44	385.44	84.1 \| 91.7 \| 86.7 \| 74.1
Z-281X	50	364	1.968	EN 10270-1	921.2	791.45	427.45	92.3 \| 96.5 \| 93.5 \| 87.0
Z-280X	50	326	2.263	EN 10270-1	921.2	697.78	371.78	100.0 \| 100.0 \| 100.0 \| 100.0
Z-309X	60	340	2.543	EN 10270-1	1122	749.74	409.74	88.6 \| 88.8 \| 86.4 \| 90.5
Z-279X	50	292	2.596	EN 10270-1	921.2	616.06	324.06	92.4 \| 96.5 \| 93.6 \| 87.2
Z-251X	40	323	2.763	EN 10270-1	873.5	612.02	289.02	86.1 \| 90.0 \| 86.3 \| 82.0
Z-278X	50	254	3.134	EN 10270-1	921.2	522.4	268.4	83.6 \| 92.6 \| 86.1 \| 72.2
Z-317X	50	362	4.113	EN 10270-1	1331	656.57	294.57	73.8 \| 92.5 \| 74.2 \| 54.8
Z-316X	50	324	4.719	EN 10270-1	1331	580.76	256.76	70.8 \| 95.6 \| 69.1 \| 47.8
Z-345X	60	318	4.868	EN 10270-1	1489	597.21	279.21	67.1 \| 86.5 \| 68.5 \| 46.5
Z-315X	50	280	5.698	EN 10270-1	1331	492.65	212.65	64.6 \| 91.1 \| 63.2 \| 39.6
Z-354X	50	393	6.581	EN 10270-1	1763	630.58	237.58	59.5 \| 87.2 \| 58.1 \| 33.4
Z-353X	50	351	7.55	EN 10270-1	1763	558.09	207.09	57.9 \| 90.5 \| 54.0 \| 29.1
Z-352X	50	302	9.116	EN 10270-1	1763	473.52	171.52	54.6 \| 90.4 \| 49.2 \| 24.1
Z-351X	50	260	11.086	EN 10270-1	1763	401.02	141.02	50.3 \| 86.1 \| 45.1 \| 19.8
Z-383X	50	389	13.821	EN 10270-1	2515	549.33	160.33	46.6 \| 84.2 \| 39.9 \| 15.8
Z-382X	50	333	16.688	EN 10270-1	2515	465.78	132.78	46.0 \| 88.9 \| 36.2 \| 13.1
Z-381X	50	285	20.296	EN 10270-1	2515	394.18	109.18	43.0 \| 85.4 \| 33.0 \| 10.8

Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-280X

Country of origin: DE, German; Extension Spring Z-280X
