Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

Scaled prices - Extension Spring Z-279X

Quantity	Single price [EUR]
1	16.0400 EUR
2	12.7700 EUR
3	8.7800 EUR
7	6.9200 EUR
17	6.9200 EUR
37	6.9200 EUR
75	6.9200 EUR
125	6.9200 EUR
175	6.9200 EUR
250	6.9200 EUR
350	6.9200 EUR

Extension Spring Buy

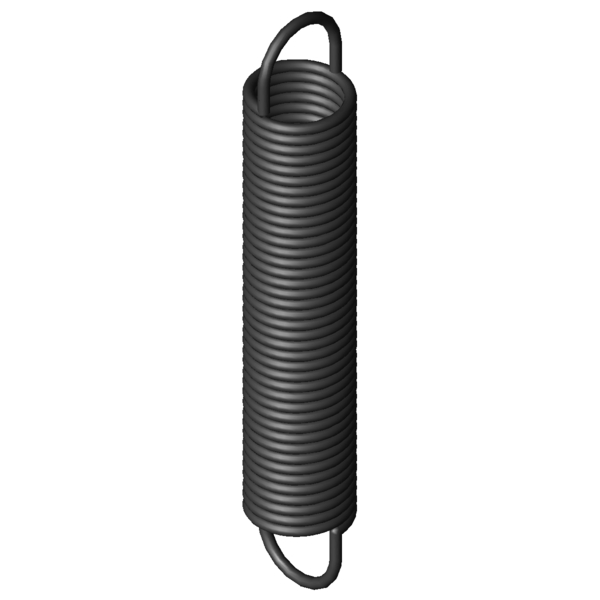

Product image Extension Spring Z-279X

Quantity:Quantity: Add to shopping cart

Technical Data - Extension Spring Z-279X

Formula symbols	Value	Unit	Description
Material	EN 10270-1	-	type of material
Eylet shape	1/1 deutsche	-	Eylet shape
F1		N	prestressed spring force
L1		mm	Prestressed spring length
s1		mm	prestressed spring deflection
F2		N	loaded spring force
L2		mm	loaded spring length
s2		mm	loaded spring deflection
Eyelet position	270	°	Eyelet position
d	5.5	mm	Wire diameter
D		mm	mean coil diameter
De	50	mm	outer coil diameter
Dh	59.1	mm	minimum bush diameter
L0	292	mm	length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk	229.63	mm	length of unstressed spring body
Ln	616.06	mm	maximum spring length, inner loop to inner loop
sn	324.06	mm	Maximum spring deflection
Fn	921.2	N	Maximum spring force
n		pc.	Number of aktive coils
nt		pc.	total number of coils
Lh	31.18	mm	distance of inner edge of loop from the spring body
R	2.596	N/mm	Spring rate
F0	80	N	initial tension
Fntol	44.86	N	(+/-) tolerance of maximum spring force
L0tol	4	mm	(+/-) tolerance of unstressed length
Detol	0.8	mm	(+/-) tolerance of outer coil diameter
Oesttol	37	degree	(+/-) tolerance of loop position
Weight	1116.1998	g	weight of one spring
Price group	###AQ	-	price group

Technical drawing Extension Spring

Datasheet Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

force-path-calculation Extension Spring Z-279X

Inquiry formular Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

Inquiry formular Extension Spring Z-279X

Similar extension springs to Extension Spring Z-279X Spring steel Ø 5.5 x 50 x 292 mm / 270°

Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar.

A similar Extension Spring made from a different material

The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces.

article number	Material	d (mm)	De (mm)	L0 (mm)	Fn (N)	Ln (mm)	sn (mm)	R (N/mm)	Similarity in %: Overall \| Geometrie \| Load \| Stiffness
Z-279X	EN 10270-1	5.5	50	292	921.2	616.06	324.06	2.596	100.0 \| 100.0 \| 100.0 \| 100.0

Number of similar metal springs: 1

Similar Extension Springs with varying levels of spring force

To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %.

Priority

article number	De (mm)	L0 (mm)	R (N/mm)	Material	Fn (N)	Ln (mm)	sn (mm)	Similarity in % Overall \| Geometrie \| Load \| Stiffness
Z-183X	44	309	0.66	EN 10270-1	436.3	932.93	623.93	53.1 \| 85.1 \| 49.7 \| 24.6
Z-215X	50	348	0.718	EN 10270-1	532.3	1050.23	702.23	55.7 \| 88.6 \| 52.0 \| 26.7
Z-182X	44	277	0.758	EN 10270-1	436.3	820.2	543.2	55.7 \| 85.2 \| 53.5 \| 28.3
Z-214X	50	312	0.825	EN 10270-1	532.3	923.26	611.26	59.3 \| 91.8 \| 55.4 \| 30.6
Z-238EX	60	289	0.94	EN 10270-1	585	883.2	594.2	61.6 \| 91.1 \| 59.0 \| 34.6
Z-213X	50	282	0.949	EN 10270-1	532.3	813.65	531.65	62.5 \| 92.8 \| 59.4 \| 35.2
Z-212X	50	254	1.088	EN 10270-1	532.3	717.42	463.42	64.6 \| 89.6 \| 63.9 \| 40.4
Z-244X	50	338	1.3	EN 10270-1	707.9	846.41	508.41	70.6 \| 92.4 \| 70.3 \| 49.0
Z-211X	50	222	1.314	EN 10270-1	532.3	605.81	383.81	68.6 \| 85.9 \| 71.1 \| 48.8
Z-243X	50	304	1.495	EN 10270-1	707.9	746.2	442.2	75.7 \| 95.7 \| 75.1 \| 56.3
Z-242X	50	274	1.715	EN 10270-1	707.9	659.44	385.44	80.0 \| 94.9 \| 80.5 \| 64.6
Z-221X	40	296	1.737	EN 10270-1	658.2	642.39	346.39	78.7 \| 86.8 \| 82.5 \| 66.8
Z-241X	50	238	2.07	EN 10270-1	707.9	557.23	319.23	85.5 \| 90.8 \| 87.7 \| 78.0
Z-280X	50	326	2.263	EN 10270-1	921.2	697.78	371.78	92.4 \| 96.5 \| 93.6 \| 87.2
Z-279X	50	292	2.596	EN 10270-1	921.2	616.06	324.06	100.0 \| 100.0 \| 100.0 \| 100.0
Z-308X	60	296	3.071	EN 10270-1	1122	635.36	339.36	88.2 \| 89.8 \| 88.8 \| 86.0
Z-278X	50	254	3.134	EN 10270-1	921.2	522.4	268.4	90.0 \| 95.7 \| 91.4 \| 82.8
Z-250X	40	288	3.177	EN 10270-1	873.5	539.38	251.38	86.0 \| 89.8 \| 86.2 \| 81.8
Z-277X	50	222	3.812	EN 10270-1	921.2	442.68	220.68	81.4 \| 92.0 \| 84.0 \| 68.1
Z-317X	50	362	4.113	EN 10270-1	1331	656.57	294.57	77.4 \| 89.3 \| 80.1 \| 62.9
Z-316X	50	324	4.719	EN 10270-1	1331	580.76	256.76	73.8 \| 92.5 \| 74.2 \| 54.8
Z-315X	50	280	5.698	EN 10270-1	1331	492.65	212.65	69.1 \| 94.4 \| 67.4 \| 45.4
Z-314X	50	242	6.93	EN 10270-1	1331	416.85	174.85	63.0 \| 90.1 \| 61.6 \| 37.3
Z-353X	50	351	7.55	EN 10270-1	1763	558.09	207.09	59.6 \| 87.3 \| 58.1 \| 33.4
Z-352X	50	302	9.116	EN 10270-1	1763	473.52	171.52	57.3 \| 91.8 \| 52.6 \| 27.7
Z-374X	60	300	10.694	EN 10270-1	2132	476.96	176.96	51.9 \| 83.1 \| 48.9 \| 23.6
Z-351X	50	260	11.086	EN 10270-1	1763	401.02	141.02	53.3 \| 89.2 \| 47.9 \| 22.7
Z-382X	50	333	16.688	EN 10270-1	2515	465.78	132.78	46.4 \| 85.5 \| 38.8 \| 15.0
Z-381X	50	285	20.296	EN 10270-1	2515	394.18	109.18	45.4 \| 88.8 \| 35.2 \| 12.3
Z-380HX	50	227	27.14	EN 10270-1	2515	308	81	40.7 \| 82.2 \| 30.8 \| 9.2

Number of similar metal springs: 29

Customs tariff number: 73202085; Extension Spring Z-279X

Country of origin: DE, German; Extension Spring Z-279X
