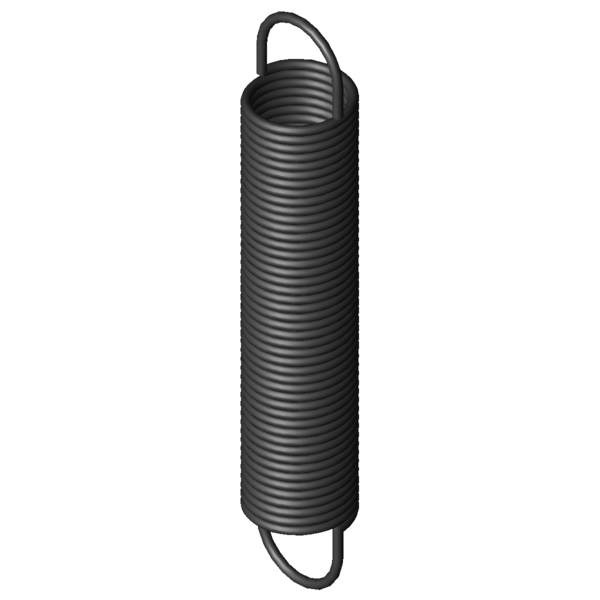

Home » Products » Extension Springs » z-273i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° Scaled prices - Extension Spring Z-273I Quantity Single price [EUR] 1 17.9400 EUR 2 14.2900 EUR 3 10.3300 EUR 7 8.7500 EUR 17 8.7500 EUR 37 8.7500 EUR 75 8.7500 EUR 125 8.7500 EUR 175 8.7500 EUR 250 8.7500 EUR 350 8.7500 EUR Extension Spring Buy Product image Extension Spring Z-273I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-273I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 60 mm outer coil diameter Dh 69.3 mm minimum bush diameter L0 340 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 261.25 mm length of unstressed spring body Ln 934.72 mm maximum spring length, inner loop to inner loop sn 594.72 mm Maximum spring deflection Fn 774.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 39.37 mm distance of inner edge of loop from the spring body R 1.238 N/mm Spring rate F0 38 N initial tension Fntol 35.79 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 44 degree (+/-) tolerance of loop position Weight 1551.9492 g weight of one spring Price group ###AW - price group Technical drawing Extension Spring Datasheet Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° force-path-calculation Extension Spring Z-273I Inquiry formular Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° Inquiry formular Extension Spring Z-273I Similar extension springs to Extension Spring Z-273I Spring steel Ø 5.5 x 60 x 340 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-273I EN 10270-1 5.5 60 340 774.5 934.72 594.72 1.238 70.5 | 95.6 | 68.8 | 47.3 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209KI 60 401 0.35 EN 10270-1 438 1587 1186 65.8 | 89.3 | 65.8 | 42.4 Z-209JI 60 365 0.39 EN 10270-1 438 1414.5 1049.5 68.4 | 86.7 | 70.6 | 47.9 Z-209HI 60 329 0.46 EN 10270-1 438 1242 913 63.5 | 92.9 | 60.8 | 36.8 Z-209GI 60 295 0.53 EN 10270-1 438 1088.5 793.5 65.9 | 89.5 | 65.8 | 42.4 Z-209EI 60 270 0.6 EN 10270-1 438 961.1 691.1 51.9 | 83.8 | 49.0 | 23.0 Z-238JI 60 393 0.62 EN 10270-1 585 1289.7 896.7 84.7 | 91.7 | 87.3 | 74.9 Z-238HI 60 353 0.72 EN 10270-1 585 1133.1 780.1 85.5 | 88.9 | 81.6 | 86.1 Z-215I 50 346 0.721 EN 10270-1 532.3 1045.39 699.39 54.9 | 84.1 | 52.8 | 27.6 Z-238GI 60 318 0.82 EN 10270-1 585 996 678 59.5 | 91.1 | 56.1 | 31.3 Z-238EI 60 289 0.94 EN 10270-1 585 879.5 590.5 61.6 | 88.3 | 60.6 | 36.0 Z-274I 60 378 1.076 EN 10270-1 774.5 1062.25 684.25 86.4 | 93.7 | 88.5 | 77.0 Z-273I 60 340 1.238 EN 10270-1 774.5 934.72 594.72 70.5 | 95.6 | 68.8 | 47.3 Z-244I 50 337 1.306 EN 10270-1 707.9 843.04 506.04 70.0 | 87.5 | 71.8 | 50.8 Z-272I 60 306 1.422 EN 10270-1 774.5 823.98 517.98 73.6 | 92.6 | 73.8 | 54.3 Z-302I 70 354 1.533 EN 10270-1 968.5 956.44 602.44 76.3 | 93.7 | 77.0 | 58.3 Z-271I 60 268 1.719 EN 10270-1 774.5 696.46 428.46 78.8 | 88.9 | 82.0 | 65.6 Z-310I 60 375 2.229 EN 10270-1 1122 842.56 467.56 62.1 | 89.3 | 60.8 | 36.3 Z-280I 50 324 2.275 EN 10270-1 921.2 693.79 369.79 88.6 | 88.8 | 86.5 | 90.4 Z-309I 60 338 2.559 EN 10270-1 1122 745.23 407.23 100.0 | 100.0 | 100.0 | 100.0 Z-338I 70 332 2.92 EN 10270-1 1287 740.28 408.28 90.7 | 91.3 | 93.5 | 87.4 Z-308I 60 294 3.094 EN 10270-1 1122 630.85 336.85 89.9 | 95.7 | 91.4 | 82.7 Z-347I 60 406 3.533 EN 10270-1 1489 790.68 384.68 52.9 | 88.6 | 47.6 | 22.5 Z-346I 60 364 4.057 EN 10270-1 1489 699.05 335.05 78.4 | 94.3 | 78.8 | 62.0 Z-316I 50 322 4.748 EN 10270-1 1331 577.19 255.19 73.1 | 92.9 | 73.5 | 52.8 Z-345I 60 316 4.904 EN 10270-1 1489 593.14 277.14 72.5 | 94.5 | 71.7 | 51.3 Z-344I 60 274 5.974 EN 10270-1 1489 501.5 227.5 66.0 | 90.4 | 65.6 | 42.1 Z-376I 60 402 7.328 EN 10270-1 2132 660.26 258.26 59.7 | 87.6 | 58.0 | 33.4 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-273I Country of origin: DE, German; Extension Spring Z-273I Product image - Extension Springs Z-273I QR-Code: Extension Spring Z-273I
