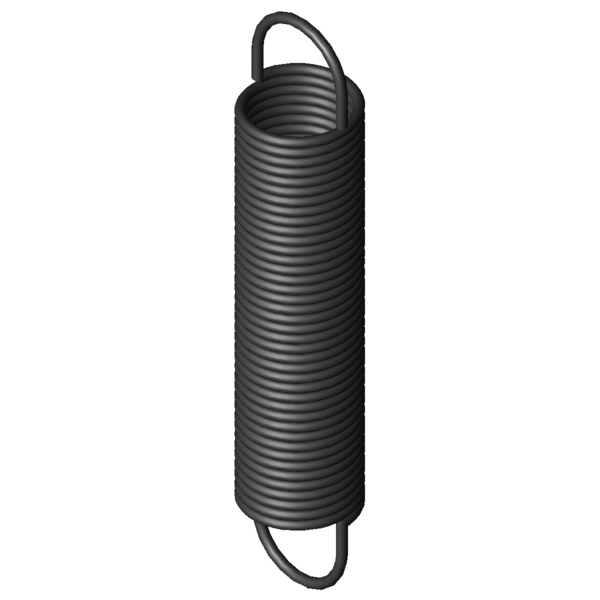

Home » Products » Extension Springs » z-272i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° Scaled prices - Extension Spring Z-272I Quantity Single price [EUR] 1 17.2900 EUR 2 13.7700 EUR 3 10.0900 EUR 7 8.3300 EUR 17 8.3300 EUR 37 8.3300 EUR 75 8.3300 EUR 125 8.3300 EUR 175 8.3300 EUR 250 8.3300 EUR 350 8.3300 EUR Extension Spring Buy Product image Extension Spring Z-272I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-272I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 5.5 mm Wire diameter D mm mean coil diameter De 60 mm outer coil diameter Dh 69.3 mm minimum bush diameter L0 306 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 228.25 mm length of unstressed spring body Ln 823.98 mm maximum spring length, inner loop to inner loop sn 517.98 mm Maximum spring deflection Fn 774.5 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 38.87 mm distance of inner edge of loop from the spring body R 1.422 N/mm Spring rate F0 38 N initial tension Fntol 36.5 N (+/-) tolerance of maximum spring force L0tol 4 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 41 degree (+/-) tolerance of loop position Weight 1358.9607 g weight of one spring Price group ###AU - price group Technical drawing Extension Spring Datasheet Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° force-path-calculation Extension Spring Z-272I Inquiry formular Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° Inquiry formular Extension Spring Z-272I Similar extension springs to Extension Spring Z-272I Spring steel Ø 5.5 x 60 x 306 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-272I EN 10270-1 5.5 60 306 774.5 823.98 517.98 1.422 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-209JI 60 365 0.39 EN 10270-1 438 1414.5 1049.5 56.5 | 88.6 | 53.0 | 27.9 Z-209HI 60 329 0.46 EN 10270-1 438 1242 913 60.1 | 91.6 | 56.6 | 32.1 Z-209GI 60 295 0.53 EN 10270-1 438 1088.5 793.5 63.5 | 92.7 | 60.9 | 36.9 Z-209EI 60 270 0.6 EN 10270-1 438 961.1 691.1 66.1 | 90.0 | 65.8 | 42.4 Z-238HI 60 353 0.72 EN 10270-1 585 1133.1 780.1 71.2 | 92.5 | 71.0 | 50.2 Z-209DI 60 239 0.73 EN 10270-1 438 810.7 571.7 70.5 | 86.6 | 73.6 | 51.2 Z-238GI 60 318 0.82 EN 10270-1 585 996 678 76.5 | 95.7 | 76.0 | 57.7 Z-214I 50 310 0.829 EN 10270-1 532.3 918.41 608.41 74.5 | 88.0 | 76.9 | 58.5 Z-238EI 60 289 0.94 EN 10270-1 585 879.5 590.5 81.0 | 95.1 | 81.6 | 66.3 Z-238DI 60 253 1.14 EN 10270-1 585 741.5 488.5 85.4 | 91.2 | 84.9 | 80.1 Z-273I 60 340 1.238 EN 10270-1 774.5 934.72 594.72 92.4 | 96.7 | 93.5 | 87.1 Z-272I 60 306 1.422 EN 10270-1 774.5 823.98 517.98 100.0 | 100.0 | 100.0 | 100.0 Z-243I 50 303 1.503 EN 10270-1 707.9 742.83 439.83 90.7 | 91.1 | 88.2 | 92.9 Z-271I 60 268 1.719 EN 10270-1 774.5 696.46 428.46 90.0 | 95.9 | 91.4 | 82.7 Z-301I 70 310 1.853 EN 10270-1 968.5 808.32 498.32 85.2 | 90.6 | 88.1 | 76.9 Z-310I 60 375 2.229 EN 10270-1 1122 842.56 467.56 77.2 | 89.6 | 79.6 | 62.3 Z-280I 50 324 2.275 EN 10270-1 921.2 693.79 369.79 76.8 | 92.6 | 77.7 | 60.0 Z-309I 60 338 2.559 EN 10270-1 1122 745.23 407.23 73.6 | 92.6 | 73.8 | 54.3 Z-279I 50 290 2.612 EN 10270-1 921.2 612.08 322.08 72.7 | 92.7 | 73.1 | 52.3 Z-308I 60 294 3.094 EN 10270-1 1122 630.85 336.85 68.8 | 94.5 | 67.0 | 44.9 Z-337I 70 290 3.557 EN 10270-1 1287 625.16 335.16 62.6 | 86.4 | 62.4 | 38.9 Z-307I 60 256 3.769 EN 10270-1 1122 532.51 276.51 62.8 | 90.3 | 61.2 | 36.8 Z-346I 60 364 4.057 EN 10270-1 1489 699.05 335.05 59.8 | 87.5 | 58.3 | 33.6 Z-316I 50 322 4.748 EN 10270-1 1331 577.19 255.19 57.0 | 88.6 | 53.7 | 28.7 Z-345I 60 316 4.904 EN 10270-1 1489 593.14 277.14 57.5 | 91.8 | 52.8 | 27.8 Z-344I 60 274 5.974 EN 10270-1 1489 501.5 227.5 53.4 | 89.4 | 48.0 | 22.8 Z-367I 70 314 6.367 EN 10270-1 1847 575.86 261.86 50.5 | 84.0 | 46.2 | 21.2 Number of similar metal springs: 26 Customs tariff number: 73202085; Extension Spring Z-272I Country of origin: DE, German; Extension Spring Z-272I Product image - Extension Springs Z-272I QR-Code: Extension Spring Z-272I
