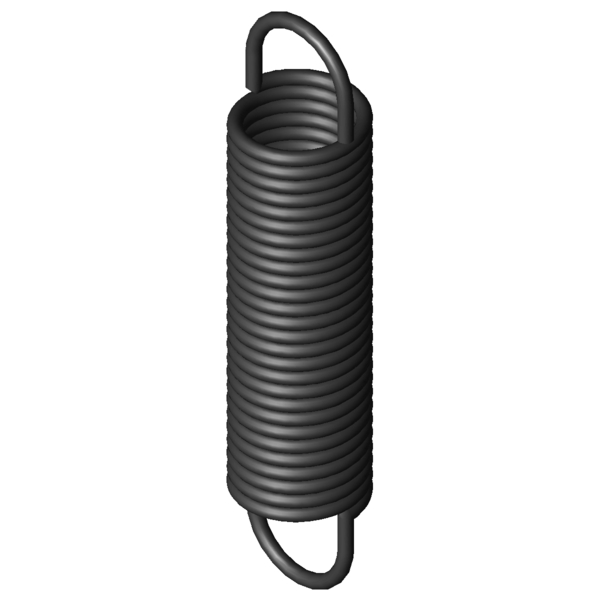

Home » Products » Extension Springs » z-367i Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° Scaled prices - Extension Spring Z-367I Quantity Single price [EUR] 1 56.6900 EUR 2 45.1600 EUR 3 43.4800 EUR 7 39.3200 EUR 17 39.3200 EUR 37 39.3200 EUR 75 39.3200 EUR 125 39.3200 EUR 175 39.3200 EUR 250 39.3200 EUR 350 39.3200 EUR Extension Spring Buy Product image Extension Spring Z-367I Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-367I Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 8 mm Wire diameter D mm mean coil diameter De 70 mm outer coil diameter Dh 83 mm minimum bush diameter L0 314 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 228 mm length of unstressed spring body Ln 575.86 mm maximum spring length, inner loop to inner loop sn 261.86 mm Maximum spring deflection Fn 1847 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 43 mm distance of inner edge of loop from the spring body R 6.367 N/mm Spring rate F0 180 N initial tension Fntol 93.5 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 0.8 mm (+/-) tolerance of outer coil diameter Oesttol 30 degree (+/-) tolerance of loop position Weight 2264.4141 g weight of one spring Price group ###BG - price group Technical drawing Extension Spring Datasheet Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° force-path-calculation Extension Spring Z-367I Inquiry formular Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° Inquiry formular Extension Spring Z-367I Similar extension springs to Extension Spring Z-367I Spring steel Ø 8 x 70 x 314 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-367I EN 10270-1 8 70 314 1847 575.86 261.86 6.367 100.0 | 100.0 | 100.0 | 100.0 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-300I 70 272 2.258 EN 10270-1 968.5 681.2 409.2 60.1 | 88.5 | 58.2 | 33.6 Z-330I 80 306 2.286 EN 10270-1 1132 770.83 464.83 61.4 | 90.8 | 58.8 | 34.5 Z-339I 70 380 2.415 EN 10270-1 1287 873.59 493.59 62.8 | 90.0 | 61.4 | 37.0 Z-309I 60 338 2.559 EN 10270-1 1122 745.23 407.23 62.5 | 85.8 | 62.5 | 39.1 Z-338I 70 332 2.92 EN 10270-1 1287 740.28 408.28 68.5 | 94.0 | 66.9 | 44.7 Z-299I 70 228 3.02 EN 10270-1 968.5 532.9 304.9 66.0 | 83.8 | 69.2 | 45.0 Z-308I 60 294 3.094 EN 10270-1 1122 630.85 336.85 67.5 | 86.0 | 69.2 | 47.2 Z-337I 70 290 3.557 EN 10270-1 1287 625.16 335.16 73.9 | 93.3 | 73.9 | 54.4 Z-360I 80 330 4.065 EN 10270-1 1627 700.91 370.91 78.6 | 94.2 | 79.3 | 62.2 Z-336HI 70 242 4.77 EN 10270-1 1287 491.8 249.8 81.3 | 88.2 | 82.5 | 73.0 Z-345I 60 316 4.904 EN 10270-1 1489 593.14 277.14 84.9 | 90.9 | 87.6 | 76.2 Z-368I 70 362 5.226 EN 10270-1 1847 680.99 318.99 89.9 | 95.5 | 91.4 | 82.7 Z-359I 80 275 5.45 EN 10270-1 1627 551.3 276.3 88.9 | 91.7 | 91.4 | 83.5 Z-344I 60 274 5.974 EN 10270-1 1489 501.5 227.5 87.8 | 86.8 | 83.7 | 92.8 Z-367I 70 314 6.367 EN 10270-1 1847 575.86 261.86 81.2 | 91.7 | 84.0 | 67.9 Z-366HI 70 258 8.54 EN 10270-1 1847 453.2 195.2 85.3 | 94.1 | 87.3 | 74.5 Z-375I 60 346 8.859 EN 10270-1 2132 559.63 213.63 82.3 | 92.2 | 84.1 | 70.7 Z-374I 60 298 10.792 EN 10270-1 2132 473.36 175.36 76.1 | 93.5 | 76.8 | 58.0 Number of similar metal springs: 17 Customs tariff number: 73202085; Extension Spring Z-367I Country of origin: DE, German; Extension Spring Z-367I Product image - Extension Springs Z-367I QR-Code: Extension Spring Z-367I
