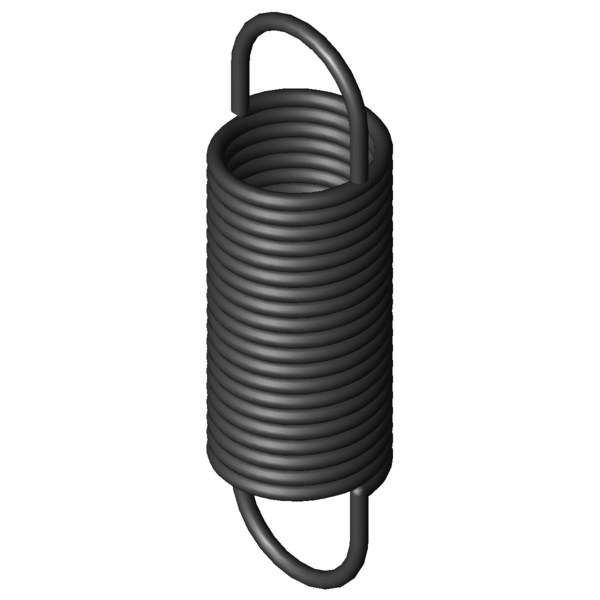

Home » Products » Extension Springs » z-336hi Url teilen URL was copied to clipboard, successfully ! Overview The Item has been added to your shopping cart. Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° Scaled prices - Extension Spring Z-336HI Quantity Single price [EUR] 1 19.3600 EUR 2 15.4300 EUR 3 12.4800 EUR 7 10.6000 EUR 17 10.6000 EUR 37 10.6000 EUR 75 10.6000 EUR 125 10.6000 EUR 175 10.6000 EUR 250 10.6000 EUR 350 10.6000 EUR Extension Spring Buy Product image Extension Spring Z-336HI Quantity:Quantity: Add to shopping cart Technical Data - Extension Spring Z-336HI Formula symbols Value Unit Description Material EN 10270-1 - type of material Eylet shape 1/1 deutsche - Eylet shape F1 N prestressed spring force L1 mm Prestressed spring length s1 mm prestressed spring deflection F2 N loaded spring force L2 mm loaded spring length s2 mm loaded spring deflection Eyelet position 180 ° Eyelet position d 7 mm Wire diameter D mm mean coil diameter De 70 mm outer coil diameter Dh 82 mm minimum bush diameter L0 242 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop Lk 150.5 mm length of unstressed spring body Ln 491.8 mm maximum spring length, inner loop to inner loop sn 249.8 mm Maximum spring deflection Fn 1287 N Maximum spring force n pc. Number of aktive coils nt pc. total number of coils Lh 45.8 mm distance of inner edge of loop from the spring body R 4.77 N/mm Spring rate F0 95 N initial tension Fntol 61.9 N (+/-) tolerance of maximum spring force L0tol 3 mm (+/-) tolerance of unstressed length Detol 1 mm (+/-) tolerance of outer coil diameter Oesttol 30 degree (+/-) tolerance of loop position Weight 1340.0622 g weight of one spring Price group ###AZ - price group Technical drawing Extension Spring Datasheet Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° Datasheet download pdf file Metal spring characteristic Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° Metal spring characteristic download pdf file CAD data Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° CAD models download: step, stl, iges ... force-path-calculation Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° force-path-calculation Extension Spring Z-336HI Inquiry formular Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° Inquiry formular Extension Spring Z-336HI Similar extension springs to Extension Spring Z-336HI Spring steel Ø 7 x 70 x 242 mm / 180° Below you will find similar Extension Springs that differ from the current spring in terms of material, dimensions and spring force. The spring highlighted in green is the most similar. A similar Extension Spring made from a different material The Extension Spring shown below has the same dimensions but is made of a different material. Please check the spring forces. article number Material d (mm) De (mm) L0 (mm) Fn (N) Ln (mm) sn (mm) R (N/mm) Similarity in %: Overall | Geometrie | Load | Stiffness Z-336HI EN 10270-1 7 70 242 1287 491.8 249.8 4.77 69.0 | 88.9 | 70.8 | 47.3 Number of similar metal springs: 1 Similar Extension Springs with varying levels of spring force To compare forces, enter the length of the loaded spring [L2] or the loaded spring deflection [s2] and click [Update]. Dimensions are subject to a tolerance of up to +/- 30 %. L2 (mm) loaded spring length s2 (mm) loaded spring deflection Priority De (mm) outer coil diameter L0 (mm) length of unstressed spring, measured from inner edge of loop to inner edge of loop R (N/mm) Spring rate article number De (mm) L0 (mm) R (N/mm) Material Fn (N) Ln (mm) sn (mm) Similarity in %Overall | Geometrie | Load | Stiffness Z-238DI 60 253 1.14 EN 10270-1 585 741.5 488.5 51.9 | 84.3 | 48.3 | 23.2 Z-238CI 60 223 1.39 EN 10270-1 585 624 401 55.1 | 83.1 | 53.9 | 28.3 Z-271I 60 268 1.719 EN 10270-1 774.5 696.46 428.46 78.3 | 80.4 | 80.3 | 74.2 Z-301I 70 310 1.853 EN 10270-1 968.5 808.32 498.32 87.1 | 92.1 | 89.4 | 79.8 Z-241I 50 237 2.086 EN 10270-1 707.9 553.87 316.87 63.5 | 80.3 | 66.9 | 43.4 Z-270I 60 236 2.094 EN 10270-1 774.5 587.72 351.72 65.2 | 87.3 | 65.6 | 42.7 Z-300I 70 272 2.258 EN 10270-1 968.5 681.2 409.2 90.9 | 88.8 | 86.8 | 97.2 Z-260JI 60 198 2.8 EN 10270-1 774.5 460.2 262.2 72.4 | 82.0 | 77.7 | 57.3 Z-299I 70 228 3.02 EN 10270-1 968.5 532.9 304.9 78.7 | 84.0 | 75.6 | 76.7 Z-329I 80 257 3.06 EN 10270-1 1132 603.3 346.3 85.5 | 94.7 | 87.3 | 74.5 Z-308I 60 294 3.094 EN 10270-1 1122 630.85 336.85 82.0 | 87.0 | 85.8 | 73.1 Z-278I 50 252 3.158 EN 10270-1 921.2 518.41 266.41 77.3 | 82.0 | 82.7 | 67.1 Z-337I 70 290 3.557 EN 10270-1 1287 625.16 335.16 79.2 | 94.1 | 80.0 | 63.4 Z-307I 60 256 3.769 EN 10270-1 1122 532.51 276.51 85.9 | 90.1 | 88.8 | 78.8 Z-336HI 70 242 4.77 EN 10270-1 1287 491.8 249.8 69.0 | 88.9 | 70.8 | 47.3 Z-298I 70 178 4.96 EN 10270-1 968.5 363.9 185.9 87.2 | 87.9 | 74.8 | 98.9 Z-306JI 60 212 5.05 EN 10270-1 1122 418.1 206.1 89.1 | 87.8 | 84.8 | 94.6 Z-359I 80 275 5.45 EN 10270-1 1627 551.3 276.3 66.1 | 92.5 | 64.5 | 41.4 Z-344I 60 274 5.974 EN 10270-1 1489 501.5 227.5 62.6 | 88.2 | 62.5 | 37.2 Z-367I 70 314 6.367 EN 10270-1 1847 575.86 261.86 61.4 | 90.8 | 58.8 | 34.5 Z-314I 50 240 6.993 EN 10270-1 1331 413.27 173.27 79.0 | 86.9 | 83.0 | 67.1 Z-343HI 60 226 8.01 EN 10270-1 1489 395.6 169.6 76.3 | 93.0 | 77.2 | 58.7 Z-366HI 70 258 8.54 EN 10270-1 1847 453.2 195.2 74.0 | 93.8 | 73.9 | 54.5 Z-351I 50 258 11.187 EN 10270-1 1763 397.75 139.75 64.6 | 88.4 | 64.5 | 40.8 Z-373HI 60 240 14.47 EN 10270-1 2132 370.7 130.7 59.6 | 90.8 | 56.3 | 31.6 Z-380HI 50 227 27.47 EN 10270-1 2515 307.6 80.6 47.5 | 84.2 | 41.7 | 16.5 Number of similar metal springs: 25 Customs tariff number: 73202085; Extension Spring Z-336HI Country of origin: DE, German; Extension Spring Z-336HI Product image - Extension Springs Z-336HI QR-Code: Extension Spring Z-336HI
