Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

Scaled prices - Extension Spring Z-270I

Quantity Single price [EUR]
1 15.2800 EUR
2 12.1700 EUR
3 7.9400 EUR
7 6.0400 EUR
17 6.0400 EUR
37 6.0400 EUR
75 6.0400 EUR
125 6.0400 EUR
175 6.0400 EUR
250 6.0400 EUR
350 6.0400 EUR

Extension Spring Buy

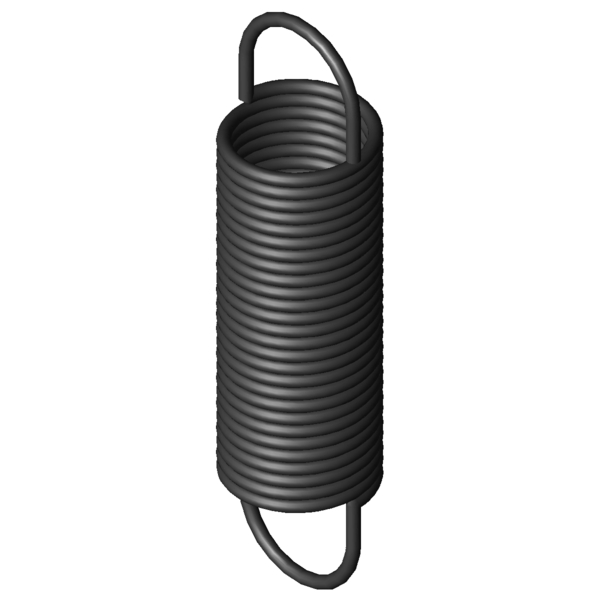

Product image Extension Spring Z-270I
Product image Extension Spring Z-270I
Quantity: Add to shopping cart

Technical Data - Extension Spring Z-270I

Formula symbols Value Unit Description
Material EN 10270-1 - type of material
Eylet shape 1/1 deutsche - Eylet shape
F1 N prestressed spring force
L1 mm Prestressed spring length
s1 mm prestressed spring deflection
F2 N loaded spring force
L2 mm loaded spring length
s2 mm loaded spring deflection
Eyelet position 180 ° Eyelet position
d 5.5 mm Wire diameter
D mm mean coil diameter
De 60 mm outer coil diameter
Dh 69.3 mm minimum bush diameter
L0 236 mm length of unstressed spring, measured from inner edge of loop to inner edge of loop
Lk 156.75 mm length of unstressed spring body
Ln 587.72 mm maximum spring length, inner loop to inner loop
sn 351.72 mm Maximum spring deflection
Fn 774.5 N Maximum spring force
n pc. Number of aktive coils
nt pc. total number of coils
Lh 39.62 mm distance of inner edge of loop from the spring body
R 2.094 N/mm Spring rate
F0 38 N initial tension
Fntol 36.9 N (+/-) tolerance of maximum spring force
L0tol 3 mm (+/-) tolerance of unstressed length
Detol 1 mm (+/-) tolerance of outer coil diameter
Oesttol 34 degree (+/-) tolerance of loop position
Weight 940.819 g weight of one spring
Price group ###AN - price group
Technical drawing Extension Spring
Technical drawing Extension Spring

Datasheet Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

Datasheet download pdf file

Metal spring characteristic Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

Metal spring characteristic download pdf file

CAD data Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

CAD models download: step, stl, iges ...

force-path-calculation Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

force-path-calculation Extension Spring Z-270I

Inquiry formular Extension Spring Z-270I Spring steel Ø 5.5 x 60 x 236 mm / 180°

Inquiry formular Extension Spring Z-270I
